Power Seat Motor
Power Seat Motor

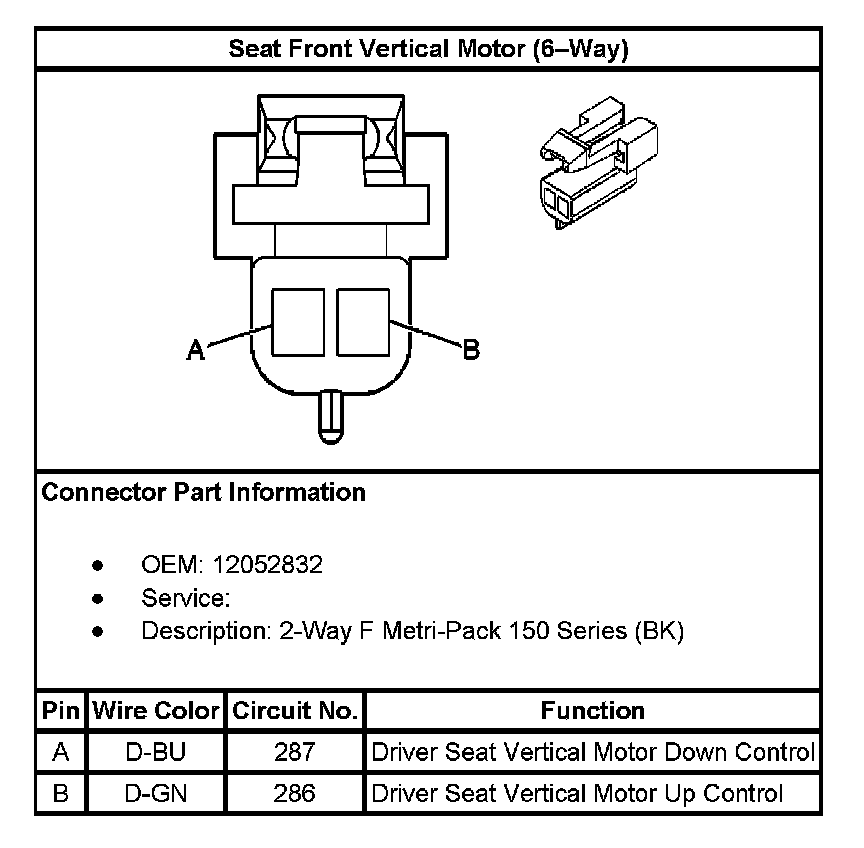

Seat Front Vertical Motor (6 Way):

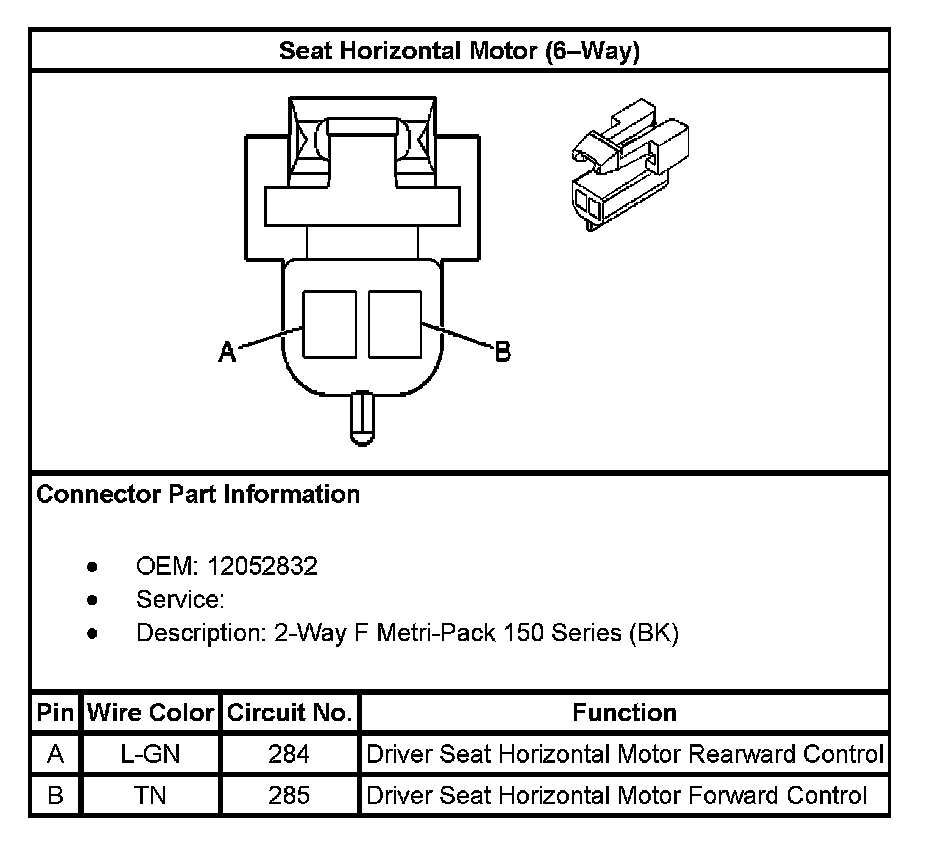

Seat Horizontal Motor (6 Way):
Seat Rear Vertical Motor (6 Way):

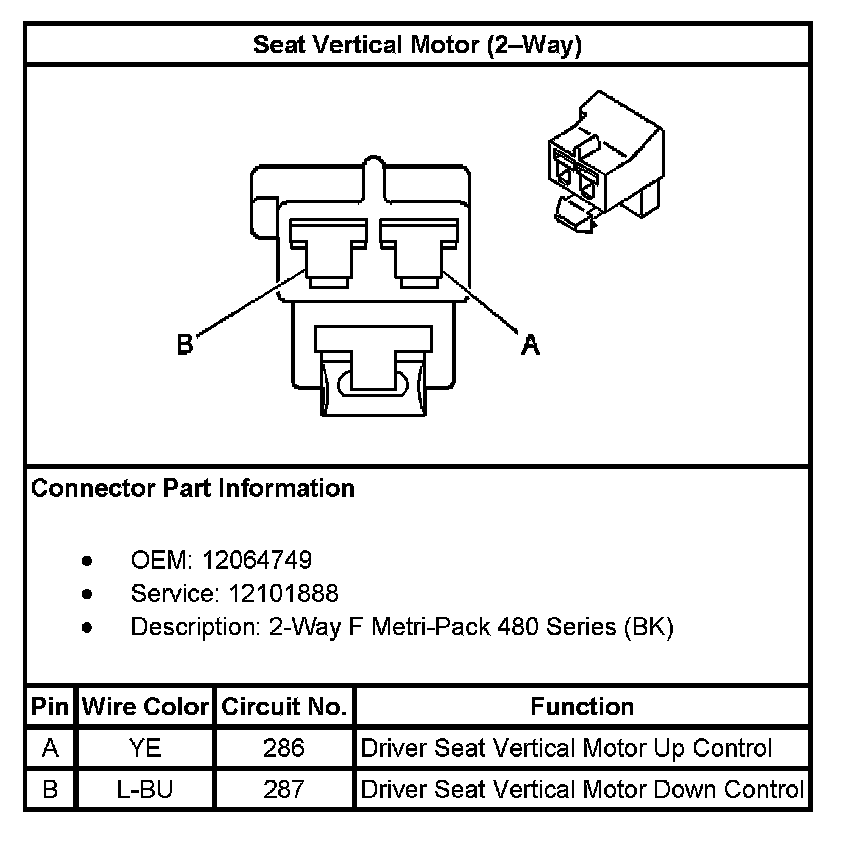

Seat Vertical Motor (2 Way):
