Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

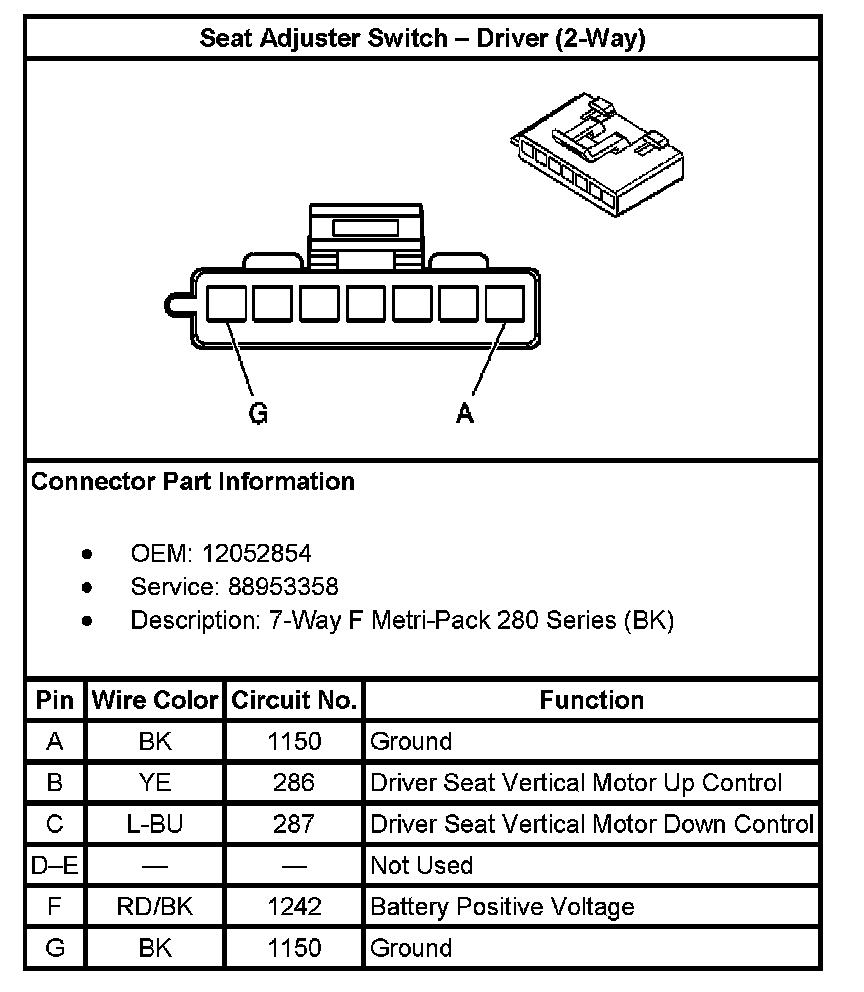

Seat Adjuster Switch - Driver (2-Way):
Seat Adjuster Switch - Driver (6-Way):
