Home >> Chevrolet >> 2006 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - RR (Sedan)

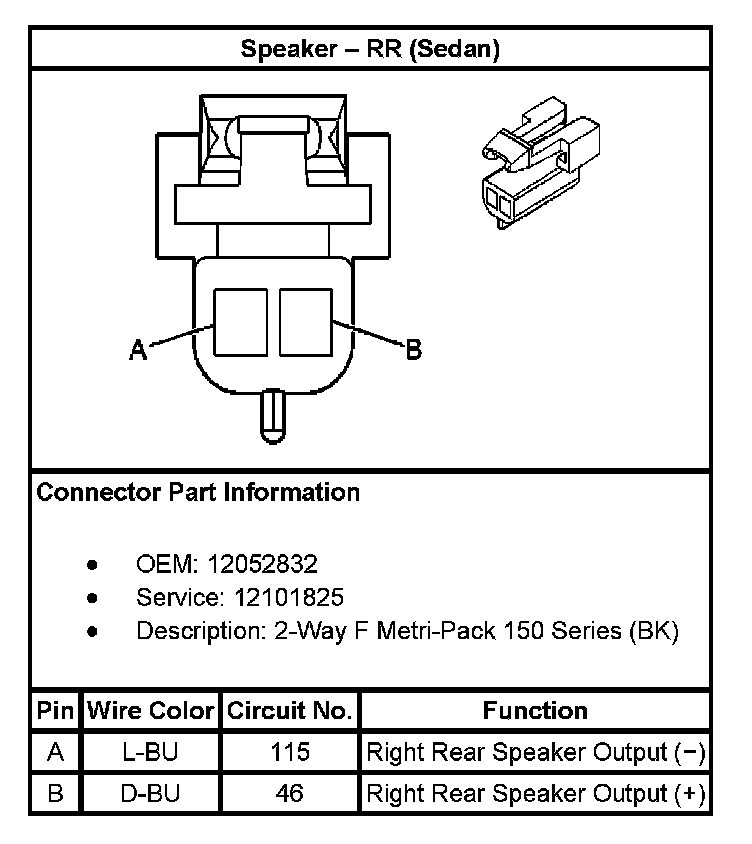

Speaker - RR (Sedan)

Speaker - RR (Sedan):
