Inflatable Restraint Steering Wheel Module Coil C3
Inflatable Restraint Steering Wheel Module Coil C3
Steering Wheel
and Column Connector End Views

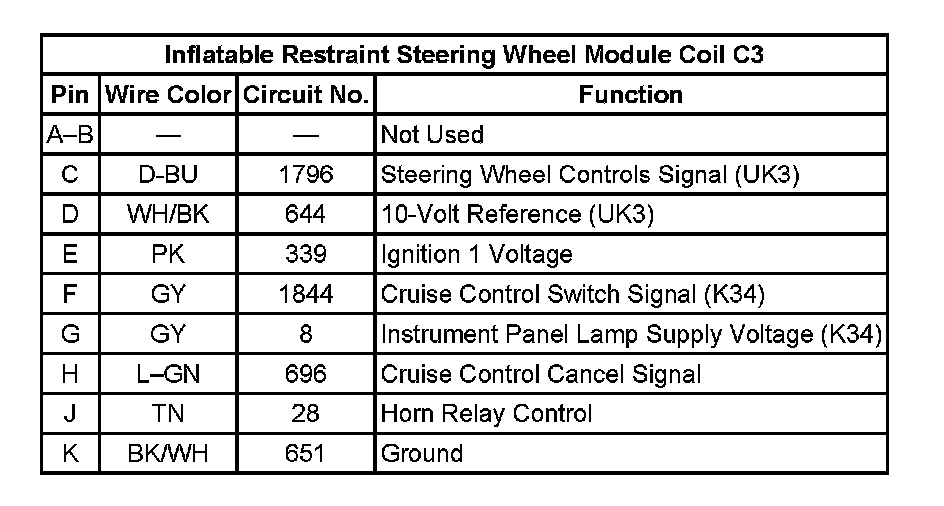

Inflatable Restraint Steering Wheel Module Coil C3:
