Sunroof / Moonroof: Adjustments

SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT
1. Open the sunshade.
2. Close the sunroof window.

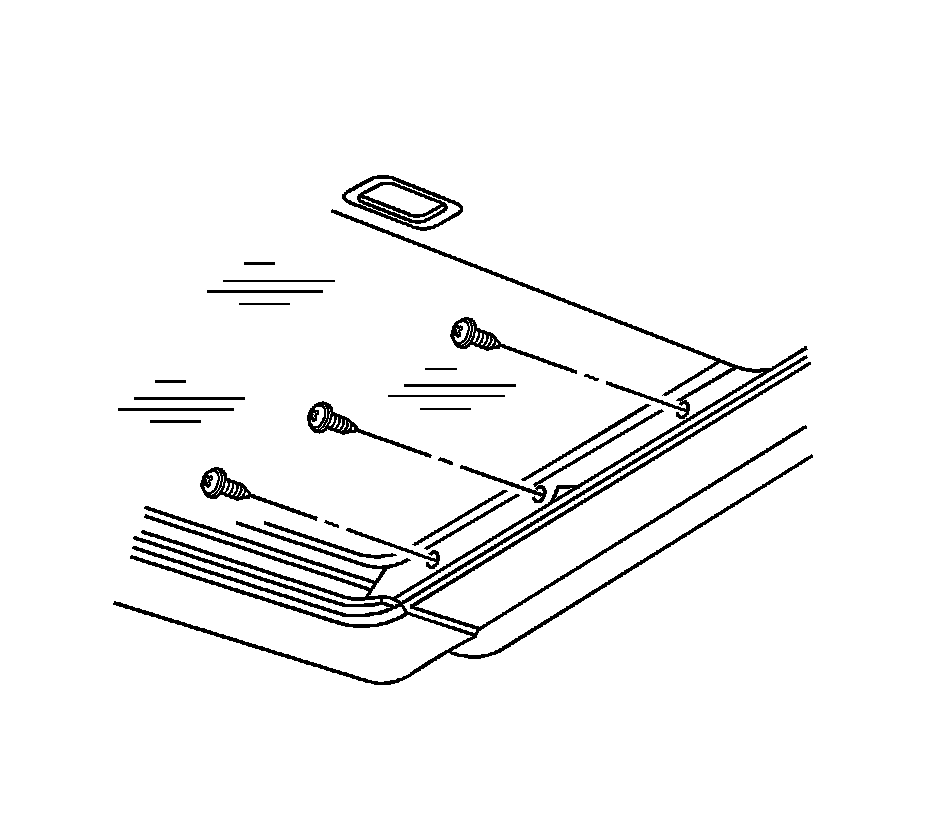

3. Loosen the 3 adjusting screws on each side of the sunroof window.




4. Adjust the corners of the window panel (3) using the following guidelines:
- Adjust the front of the sunroof window (2) flush to 1 mm (0.04 in) below the top surface of the roof panel.
- Adjust the rear of the sunroof window (1) flush to 1 mm (0.04 in) above the top surface of the roof panel.

5. Install the sunroof window adjustment screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 4 N.m (35 lb in).
