Auxiliary Power Outlet
Auxiliary Power Outlet - Console (With RPO Codes NW7, NW9):
Auxiliary Power Outlet - Front (Without RPO Codes NW7, NW9):

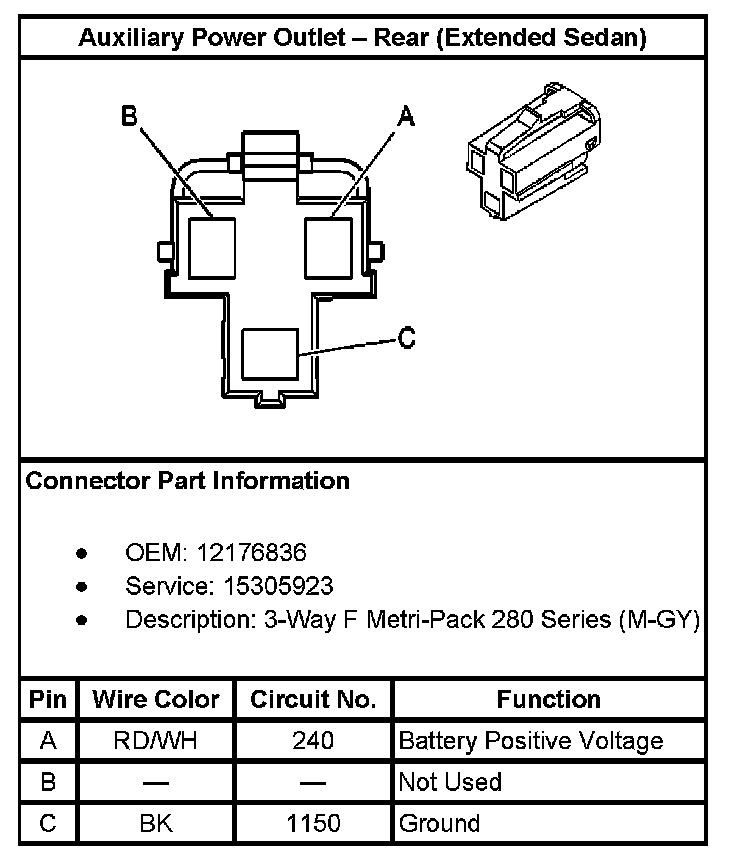

Auxiliary Power Outlet - Rear (Extended Sedan):
