Shift Linkage: Service and Repair

Floor Shift Control Replacement

^ Tools Required
- J 36346 Fascia Retainer Remover

Removal Procedure
1. Remove the console.

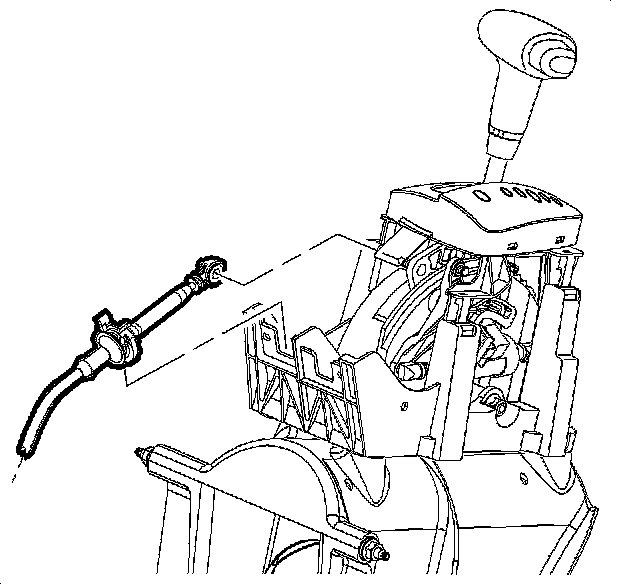

2. Using a J 36346, disconnect the shifter cable from the control assembly pin.
3. Remove the shifter cable from the control assembly.





4. Disconnect the park lock cable assembly from the pin on the control assembly.





5. Remove the indicator bulb by rotating the bulb a quarter turn and pulling out.





6. Disconnect the control assembly electrical connectors.





7. Remove the nuts from the control assembly.
8. Remove the control assembly and replace if necessary.

Installation Procedure





1. Install the control assembly.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the control assembly bolts.
Tighten the control assembly bolts to 25 Nm (18 ft. lbs.).





3. Connect the control assembly electrical connectors.





4. Install the indicator bulb by inserting and rotating one-quarter turn.





5. Install the park lock cable onto the control assembly.
6. Connect the park lock cable onto the control assembly pin.





7. Install the shifter cable onto the control assembly.
8. Connect the shifter cable onto the control assembly pin.
9. Install the console.
