Home >> Chevrolet >> 2006 >> Malibu V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - LR (Sedan)

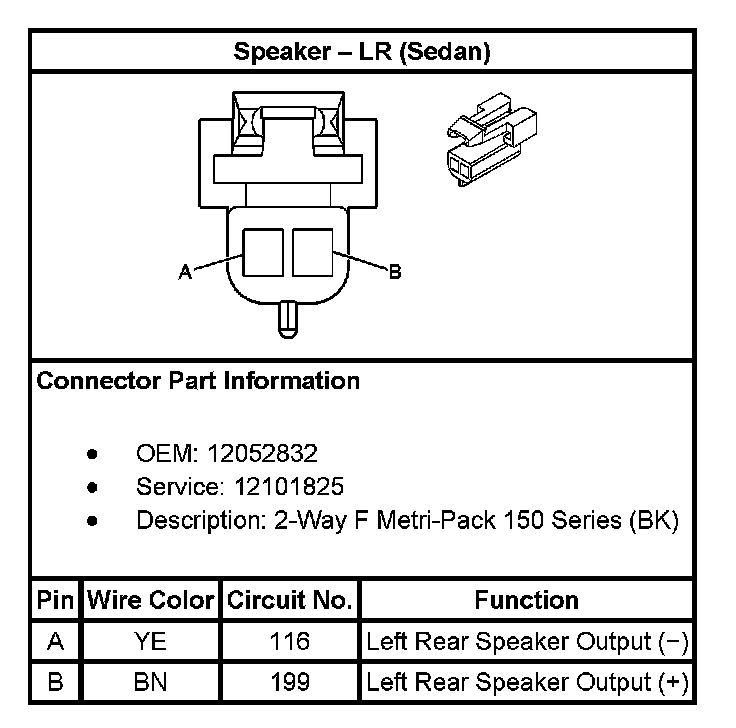

Speaker - LR (Sedan)

Speaker - LR (Sedan):
