System Diagram

ENGINE CONTROLS SCHEMATICS

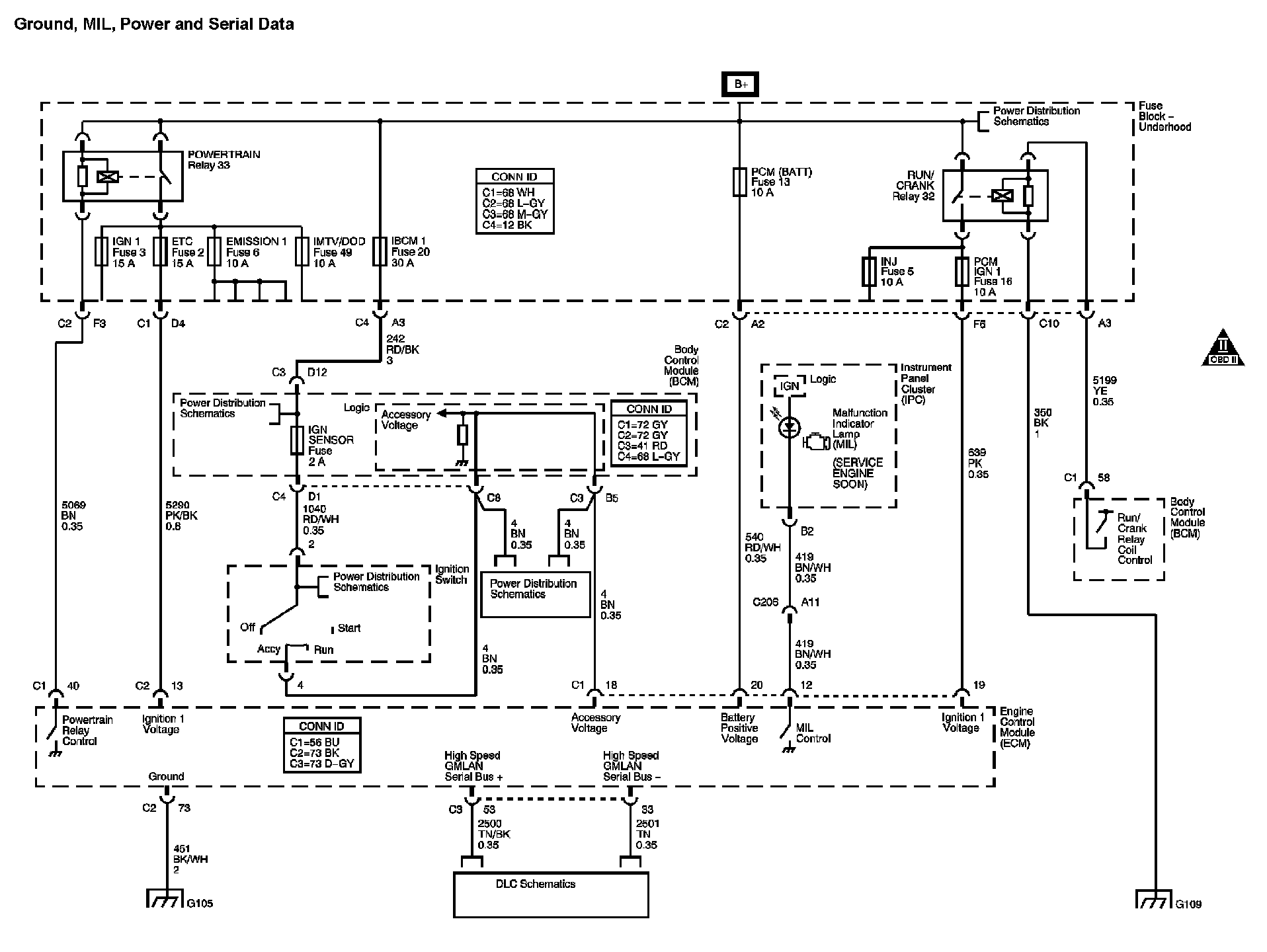

Ground, MIL, Power and Serial Data

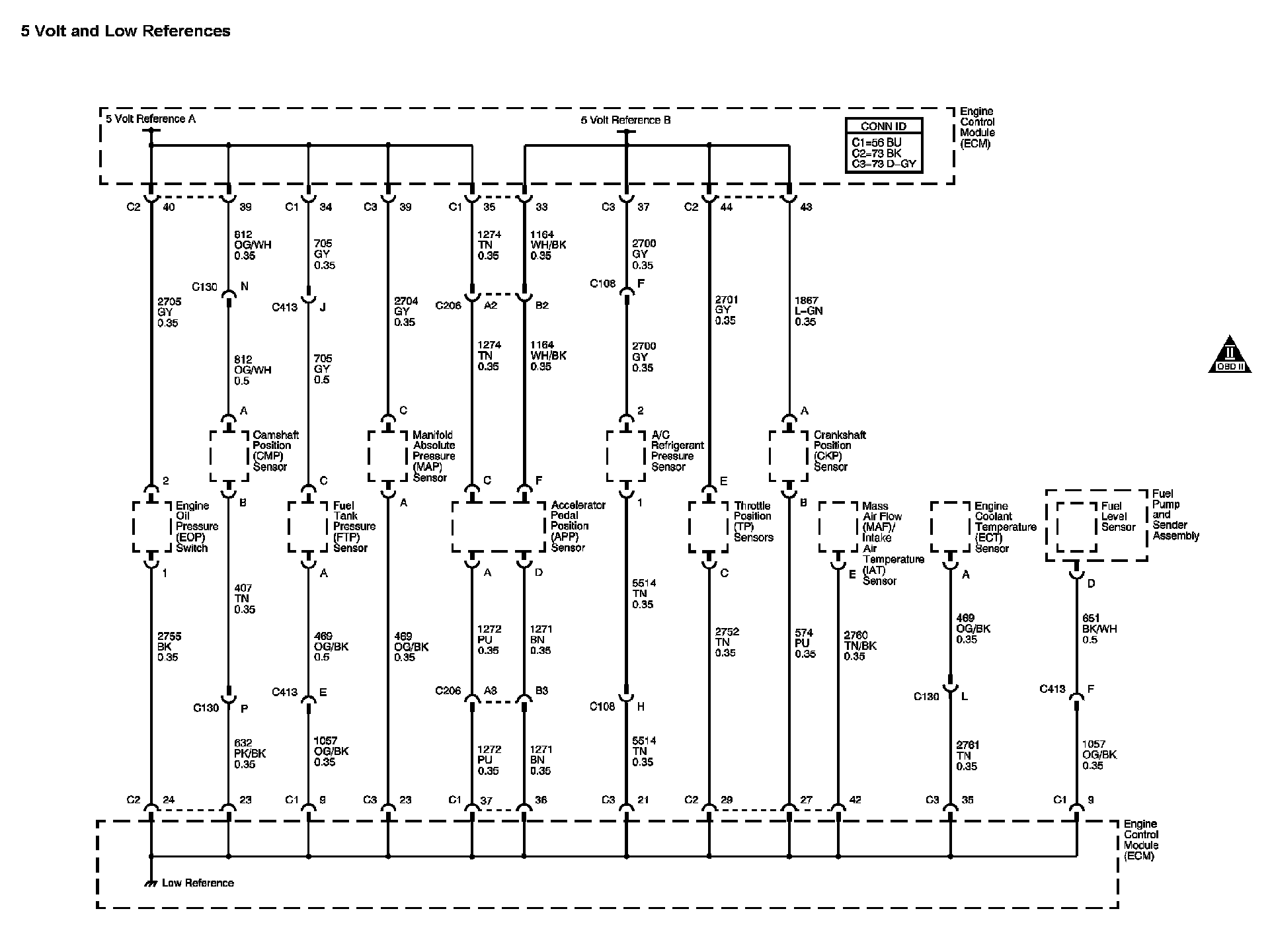

5 Volt and Low References







ECT, MAF and MAP Sensors

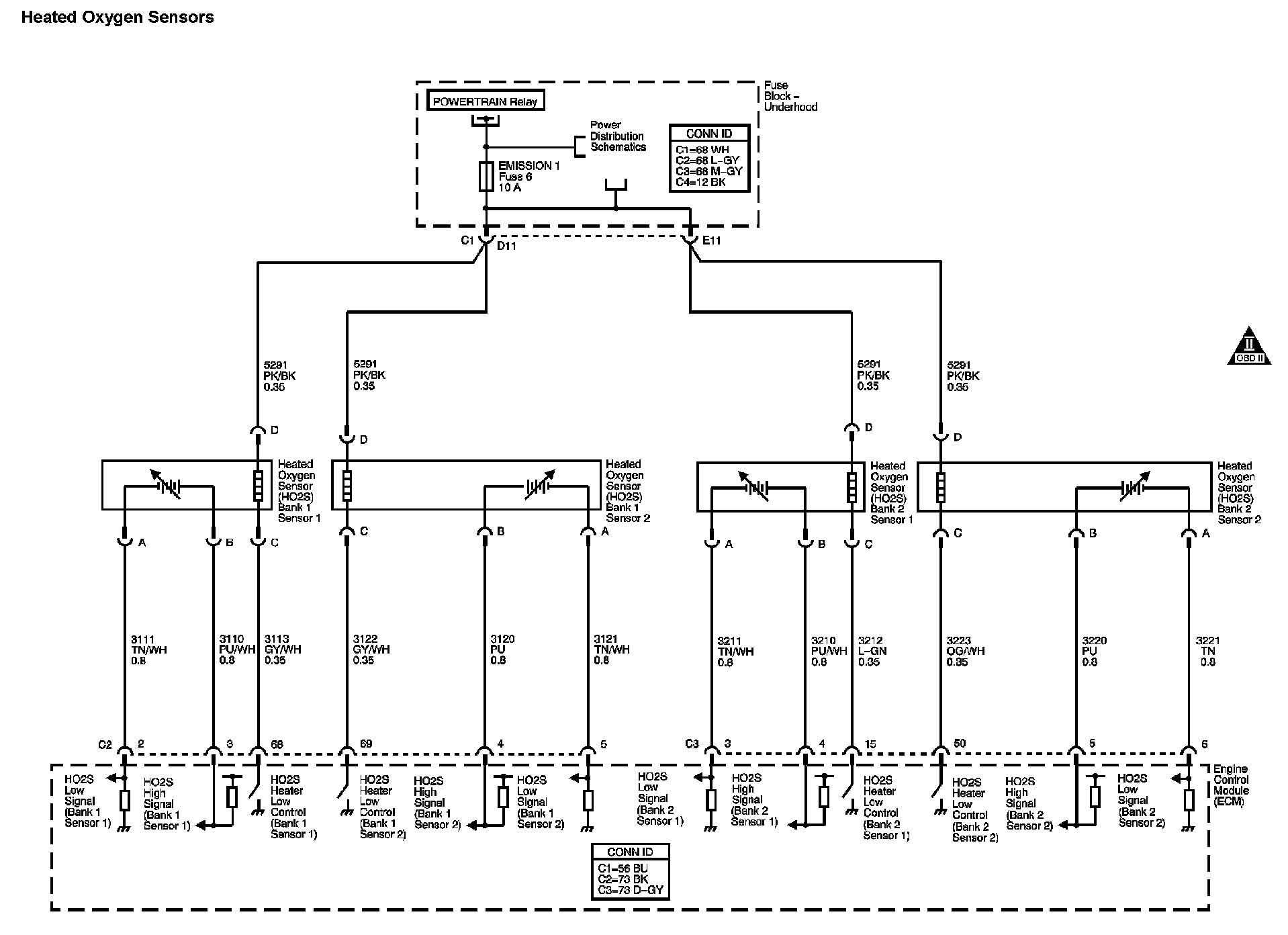

Heated Oxygen Sensors







Electronic Throttle Controls







Ignition System

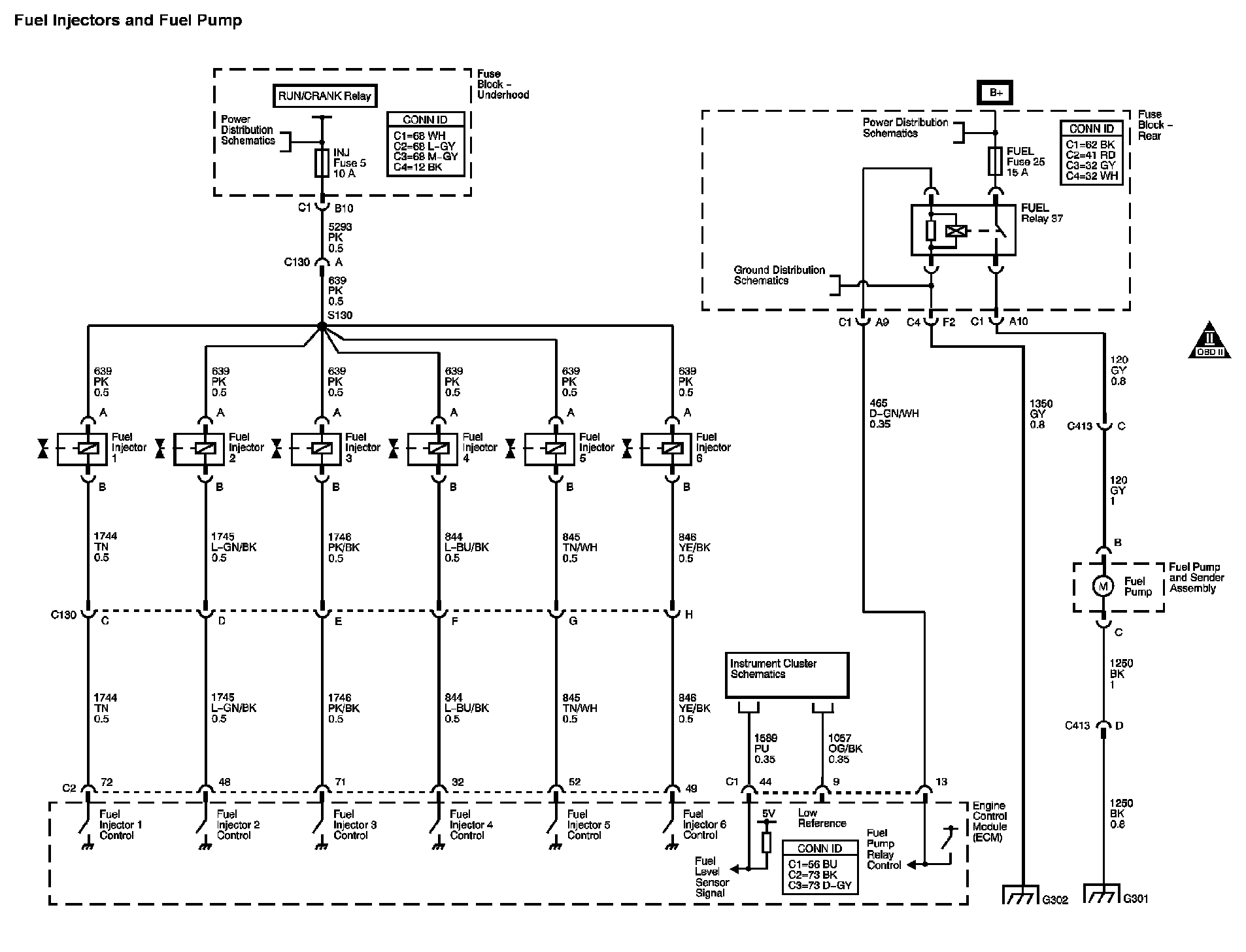

Fuel Injectors and Fuel Pump

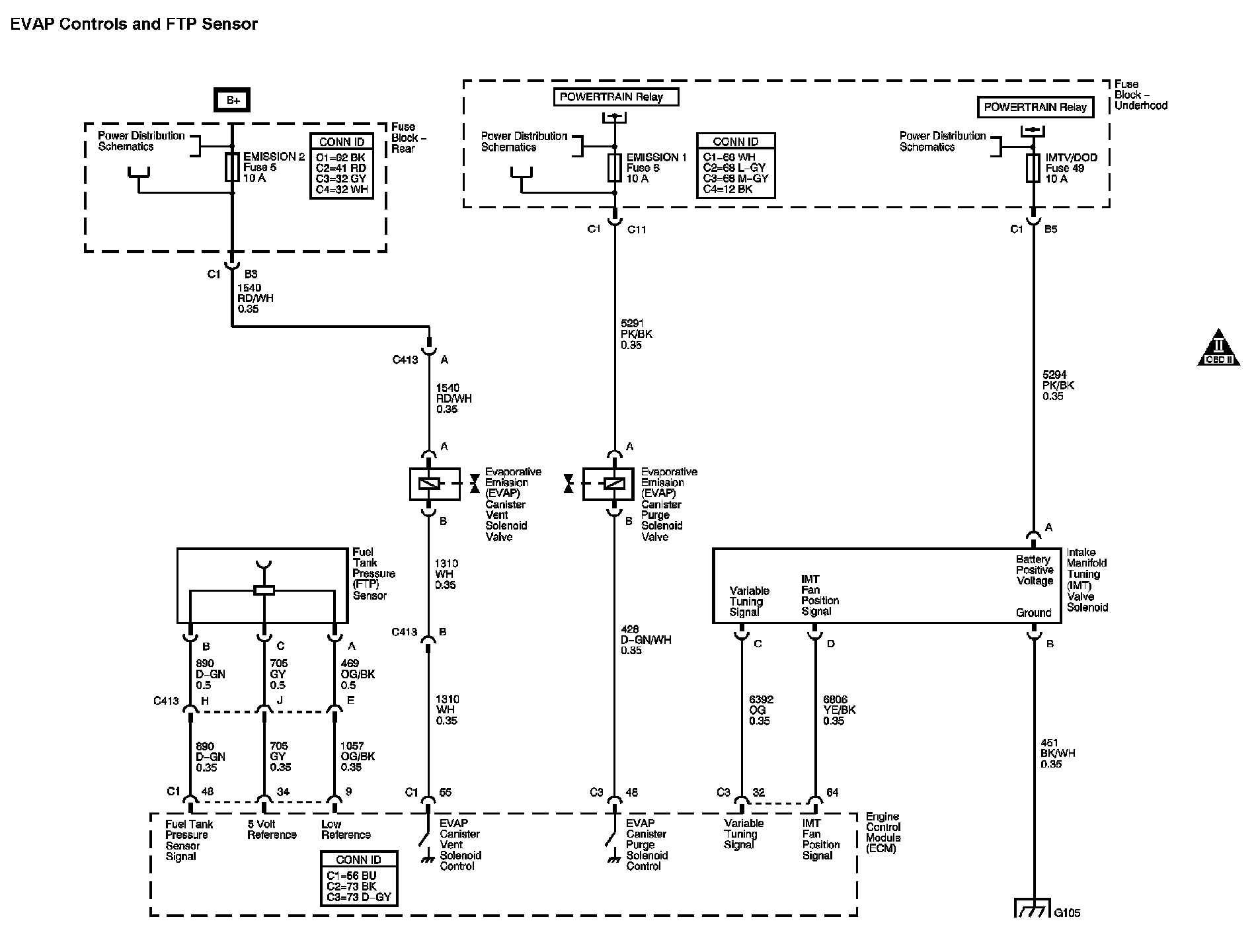

EVAP Controls and FTP Sensor

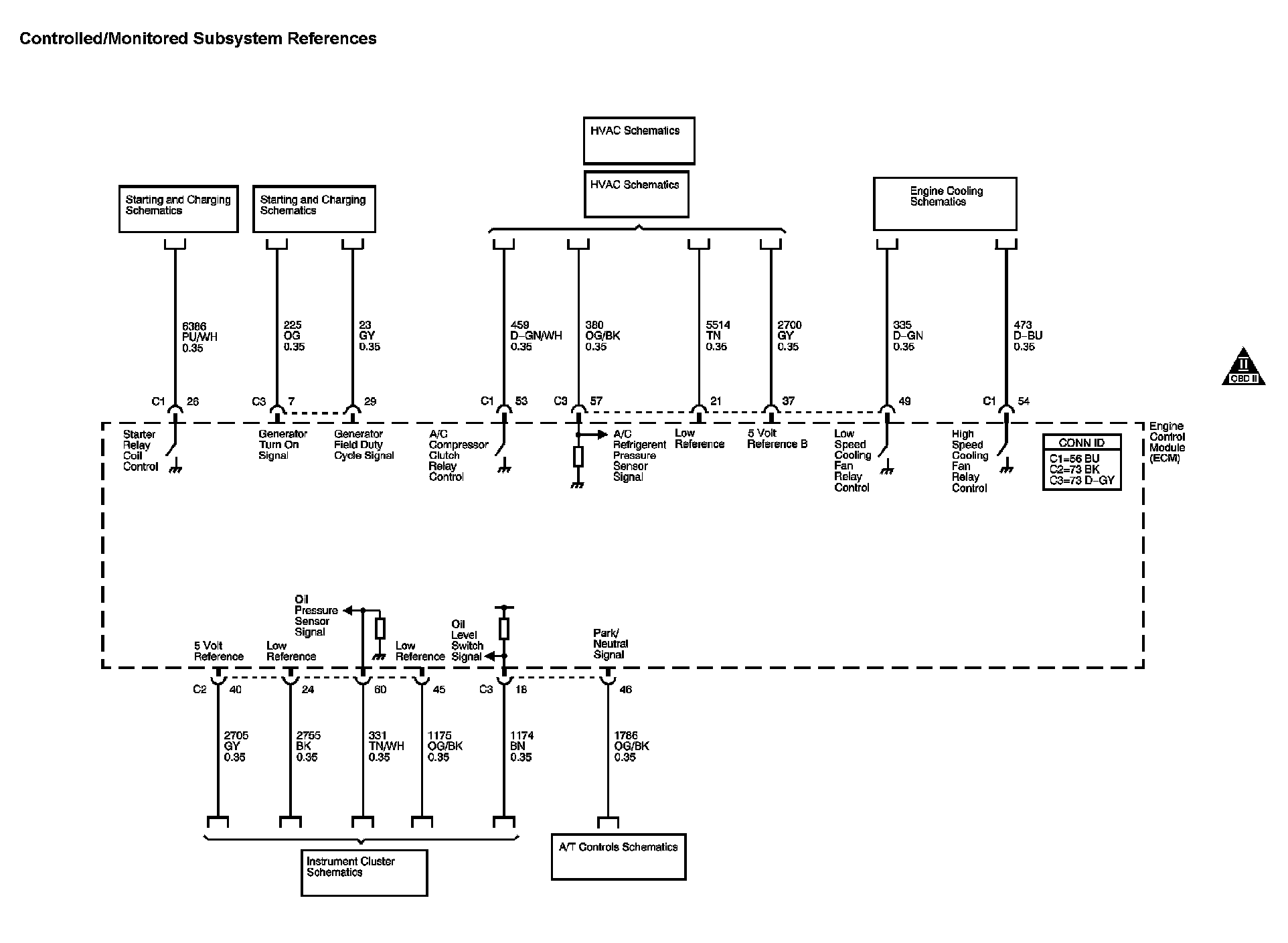

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
