Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Monte Carlo V6-3.5L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Solenoid
Canister Purge Solenoid

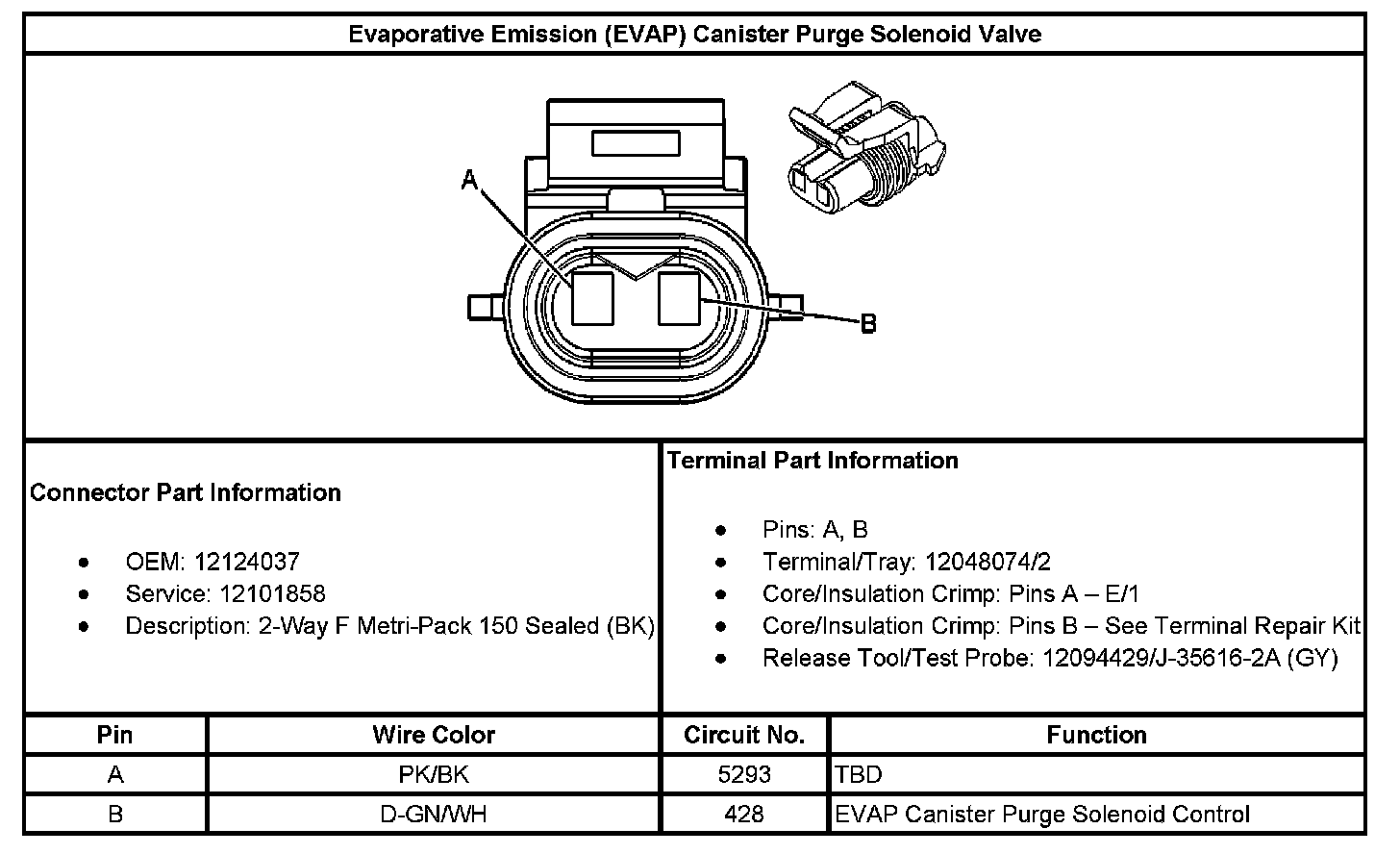

Evaporative Emission (EVAP) Canister Purge Solenoid Valve:

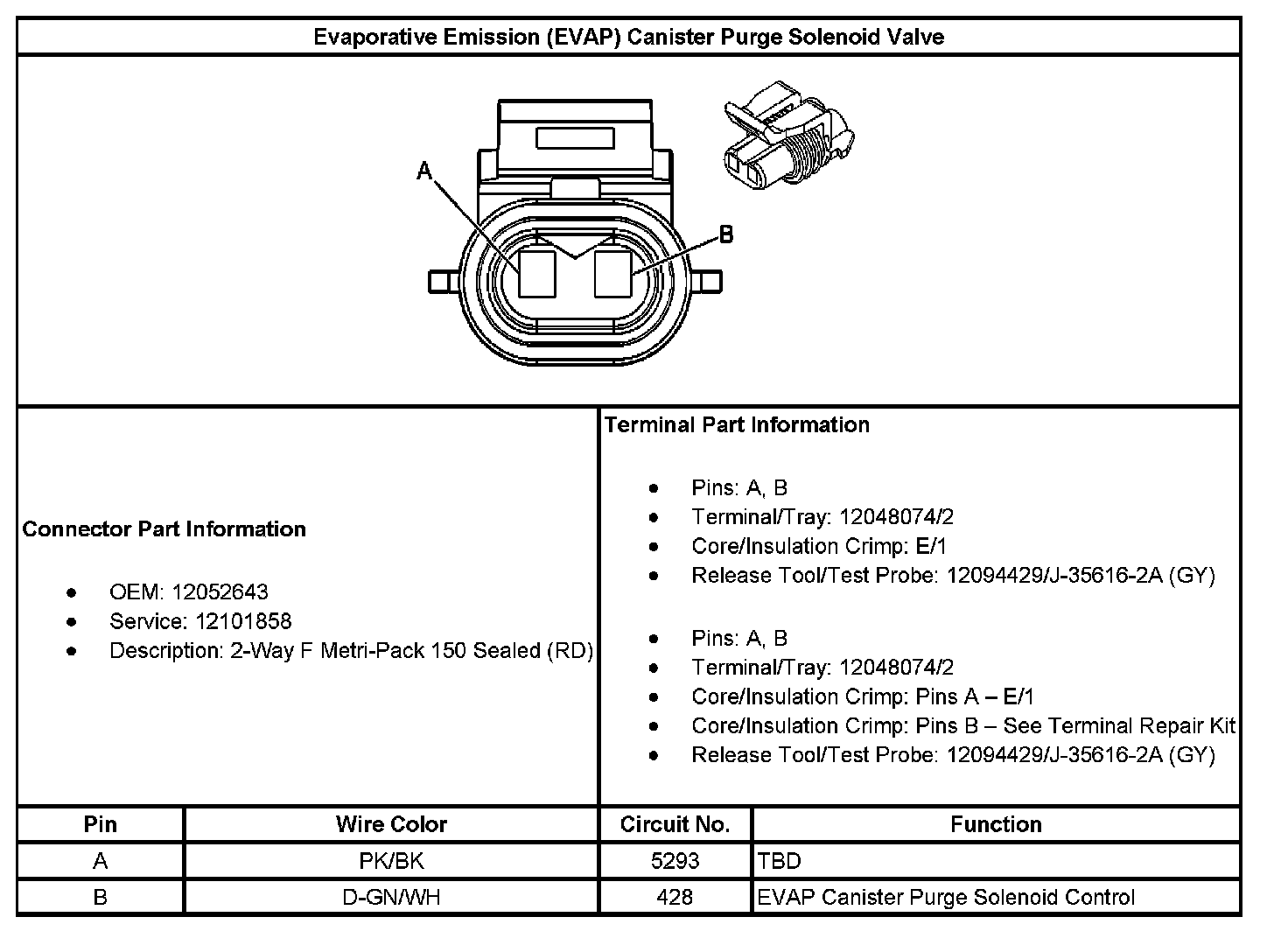

Evaporative Emission (EVAP) Canister Purge Solenoid Valve:
