Power Seat Motor
Power Seat Motor

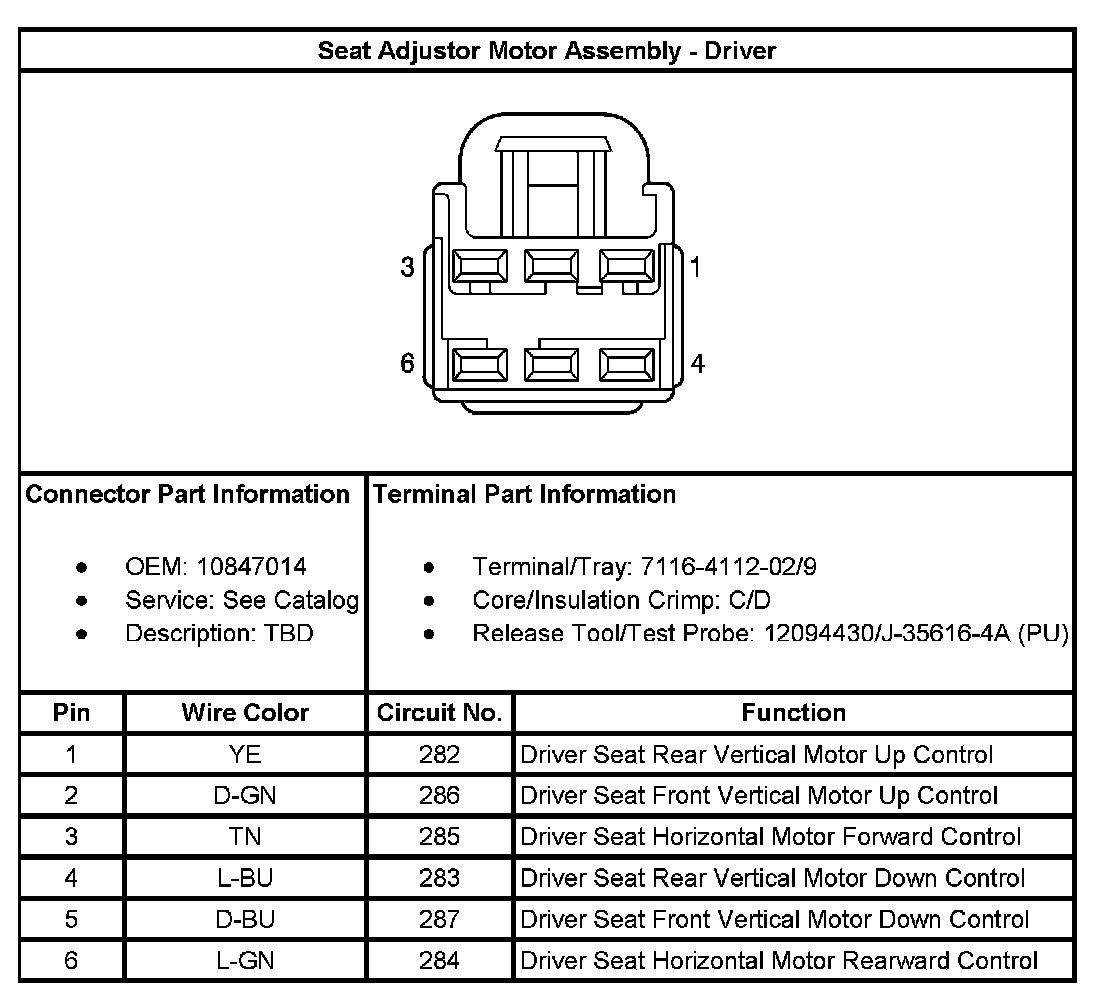

Seat Adjustor Motor Assembly - Driver:
Seat Adjustor Motor Assembly - Passenger:

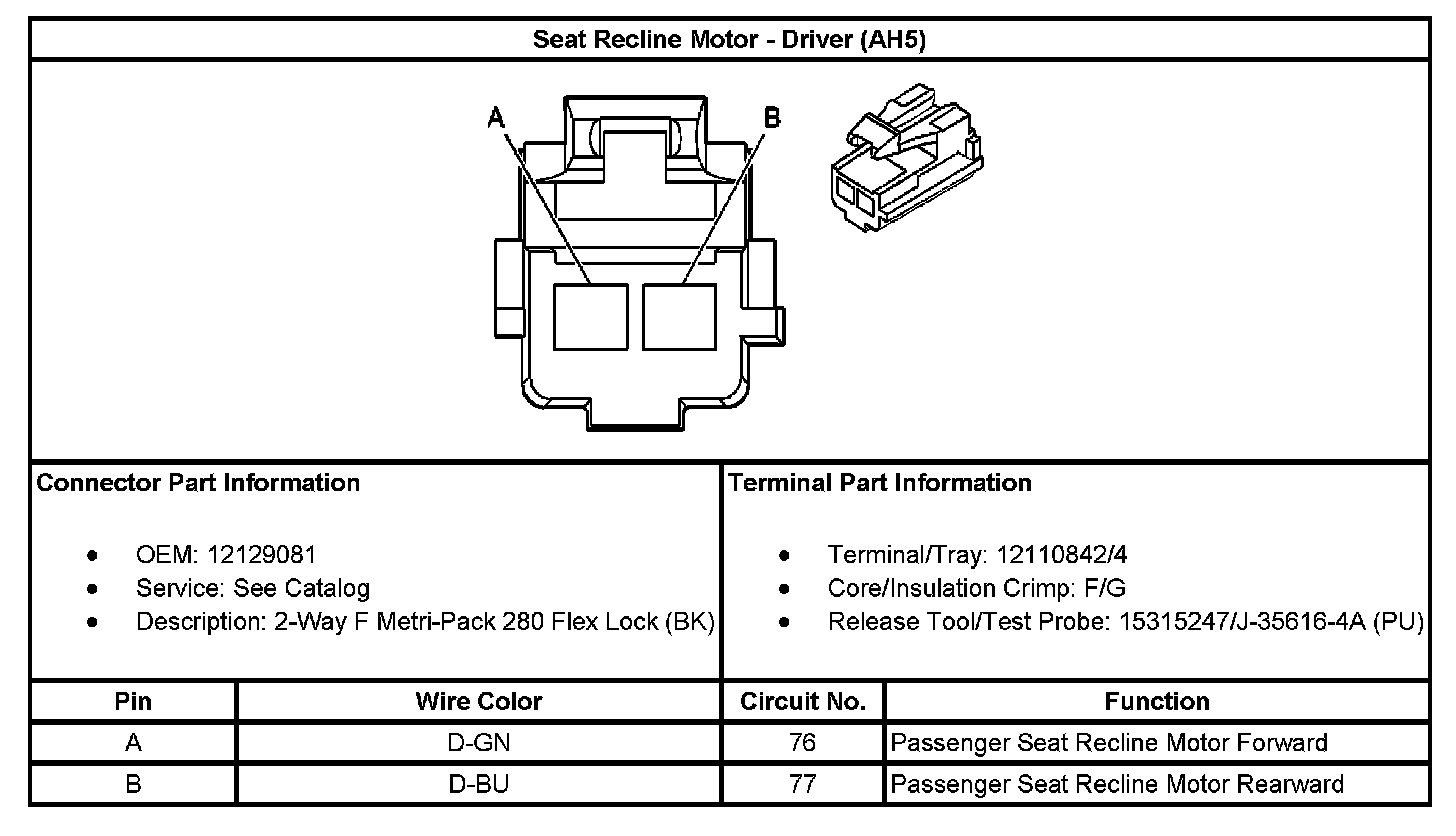

Seat Recline Motor - Driver (With RPO Code AH5):
