Home >> Chevrolet >> 2006 >> Monte Carlo V6-3.5L VIN K Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch

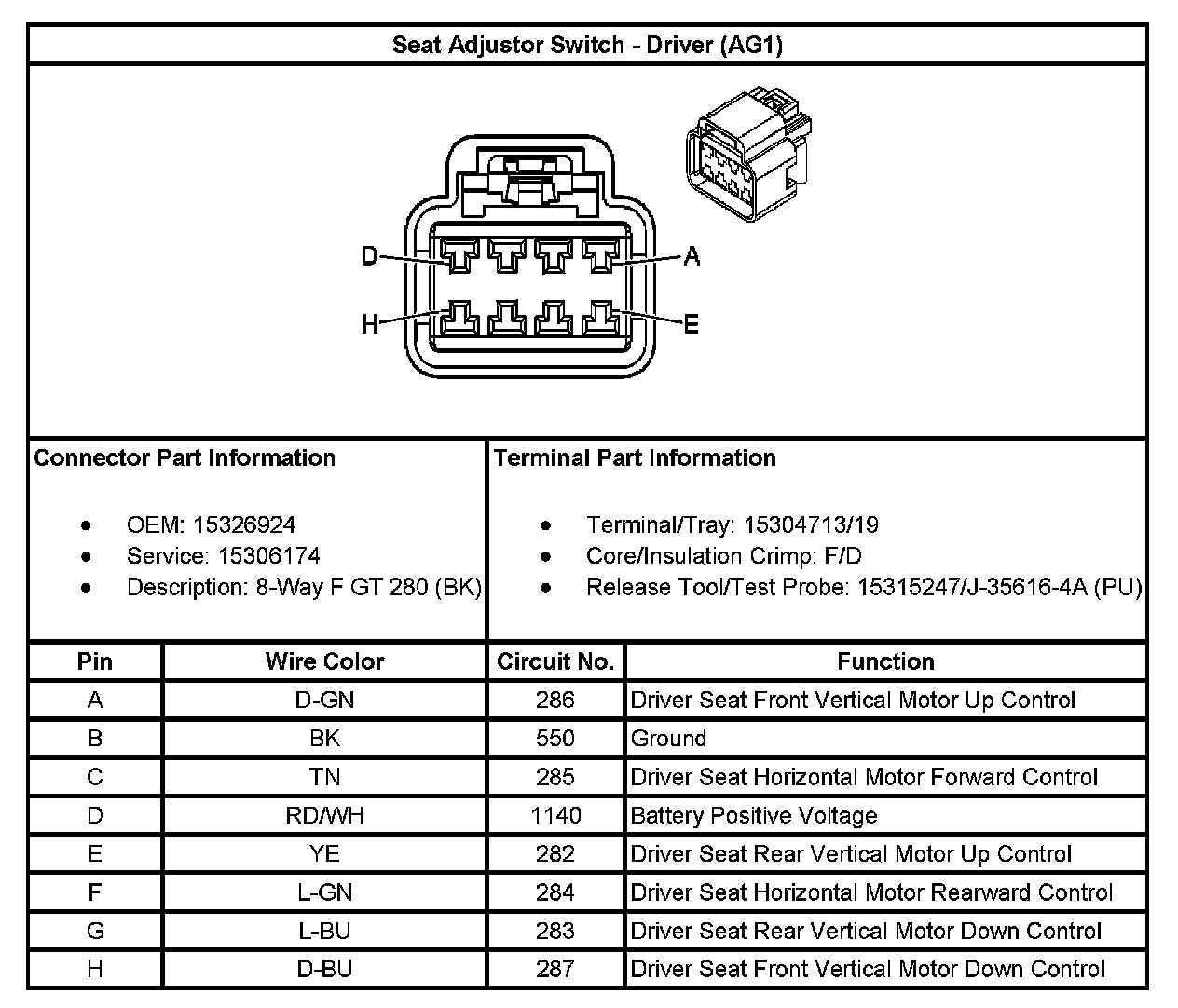

Seat Adjustor Switch - Driver (With RPO Code AG1):

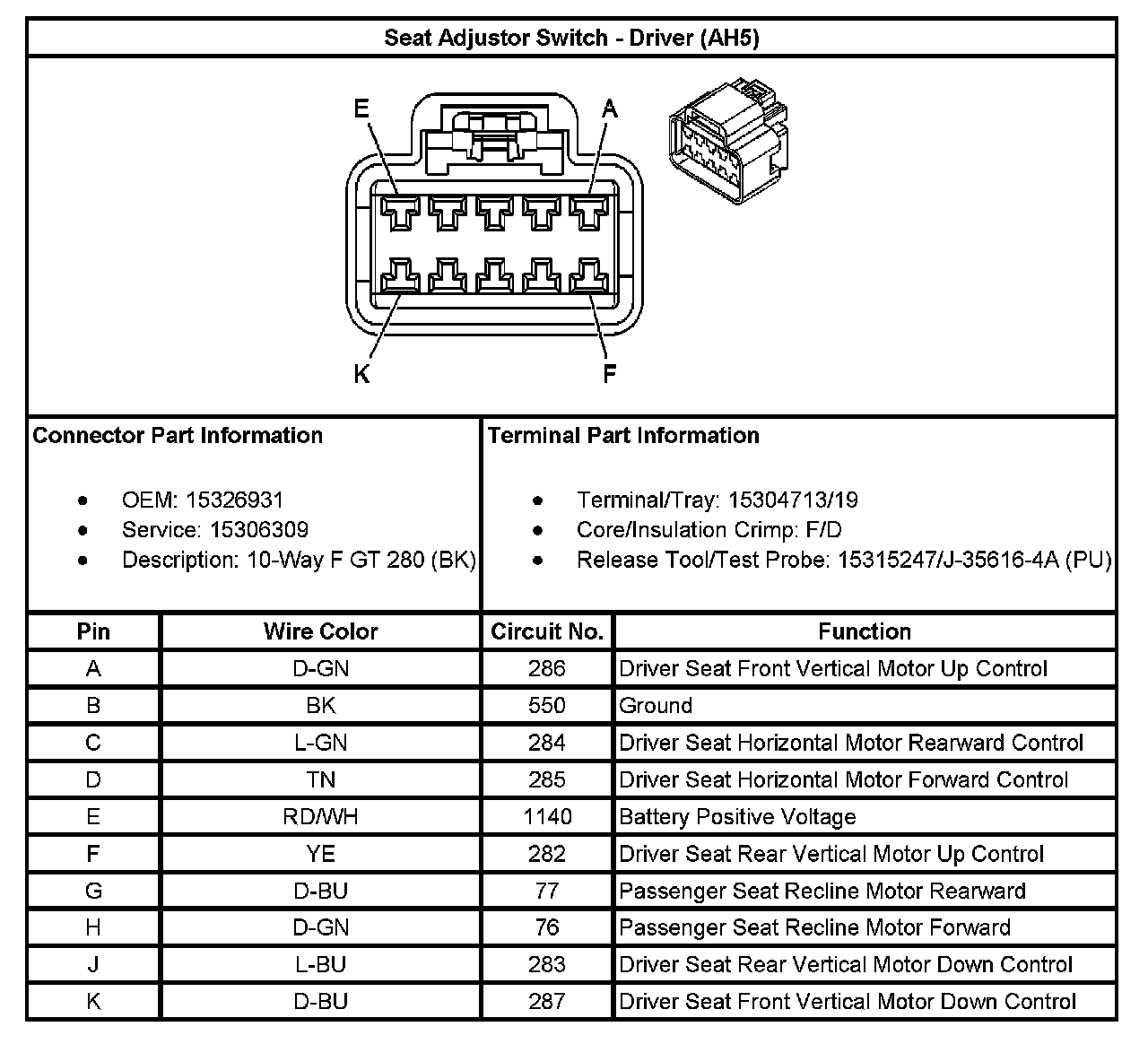

Seat Adjustor Switch - Driver (With RPO Code AH5):
