Seat Belt Buckle Switch
Seat Belt Buckle Switch

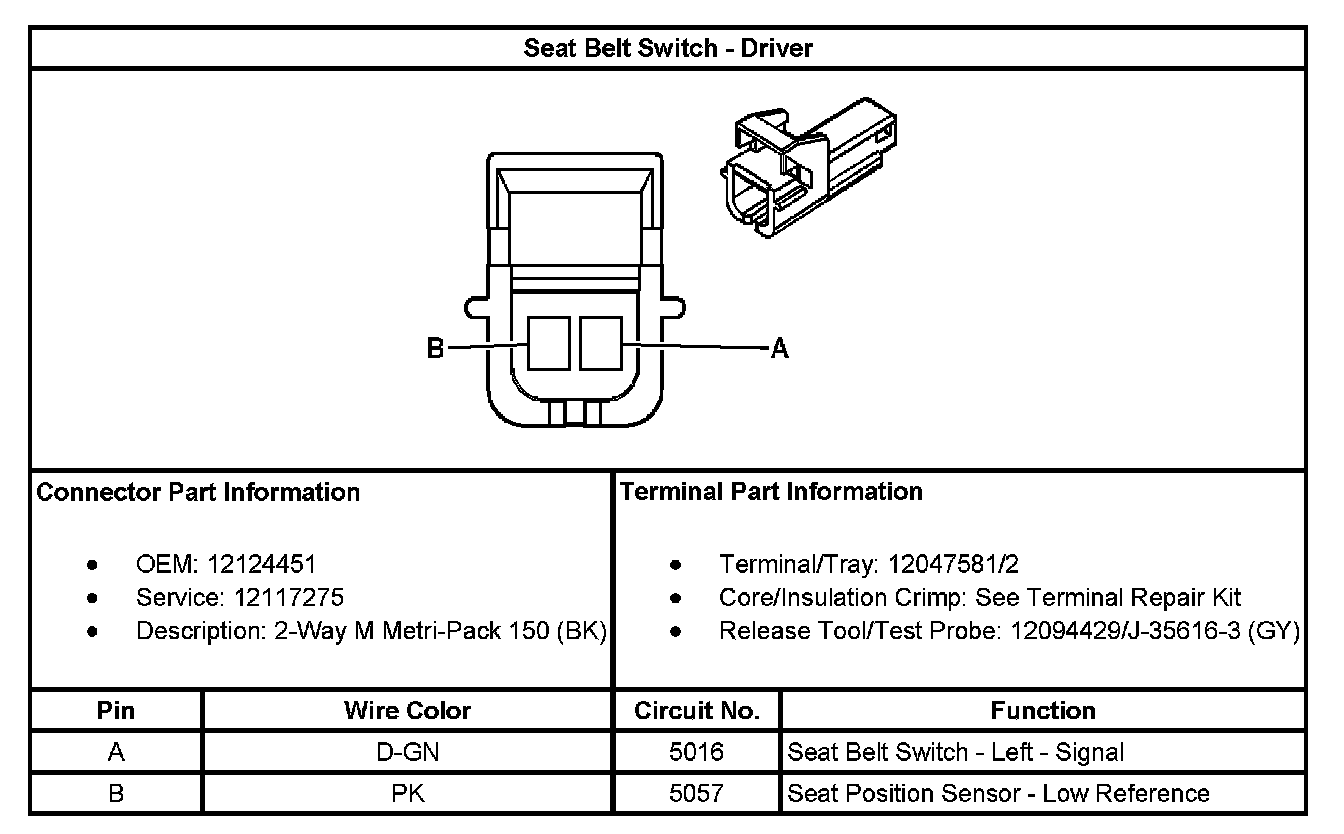

Seat Belt Switch - Driver:

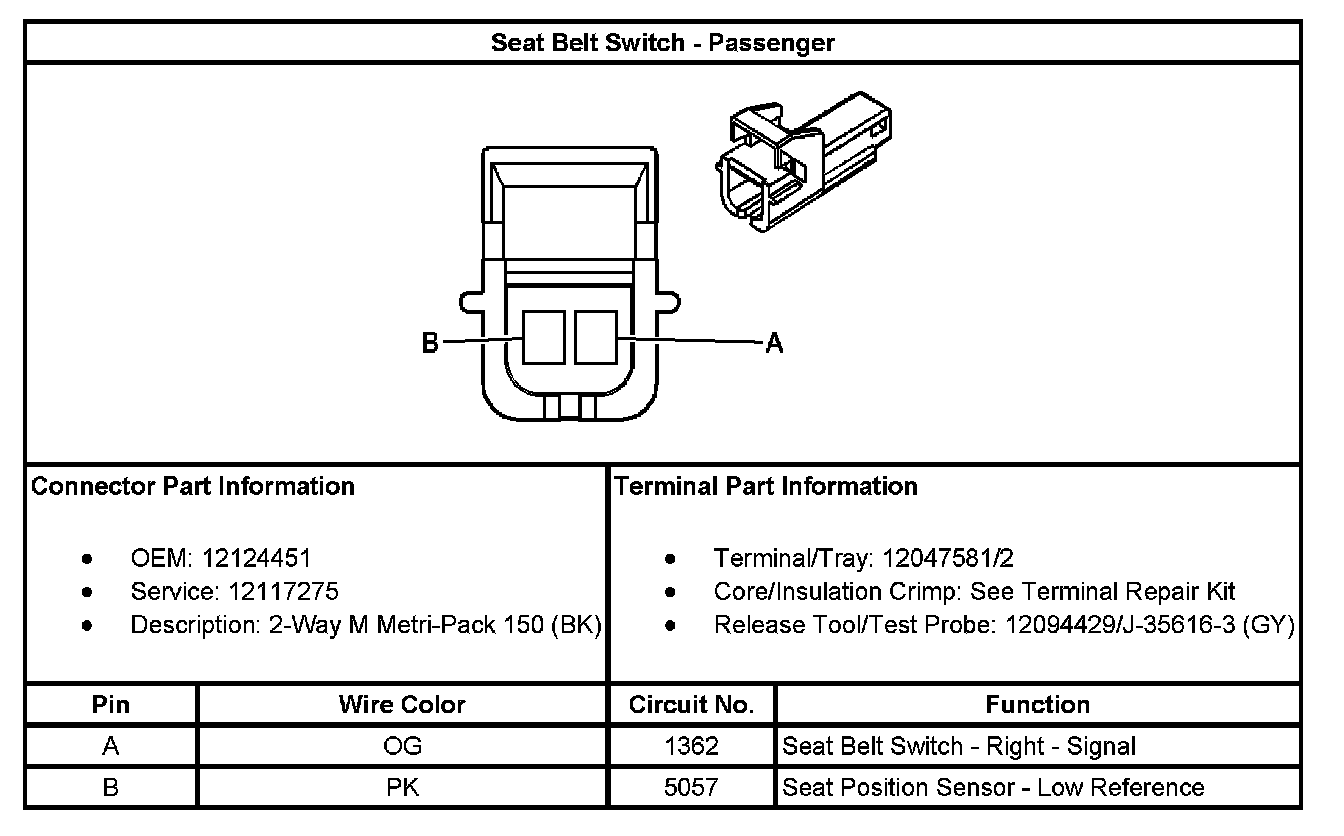

Seat Belt Switch - Passenger:
