Variable Valve Timing Solenoid

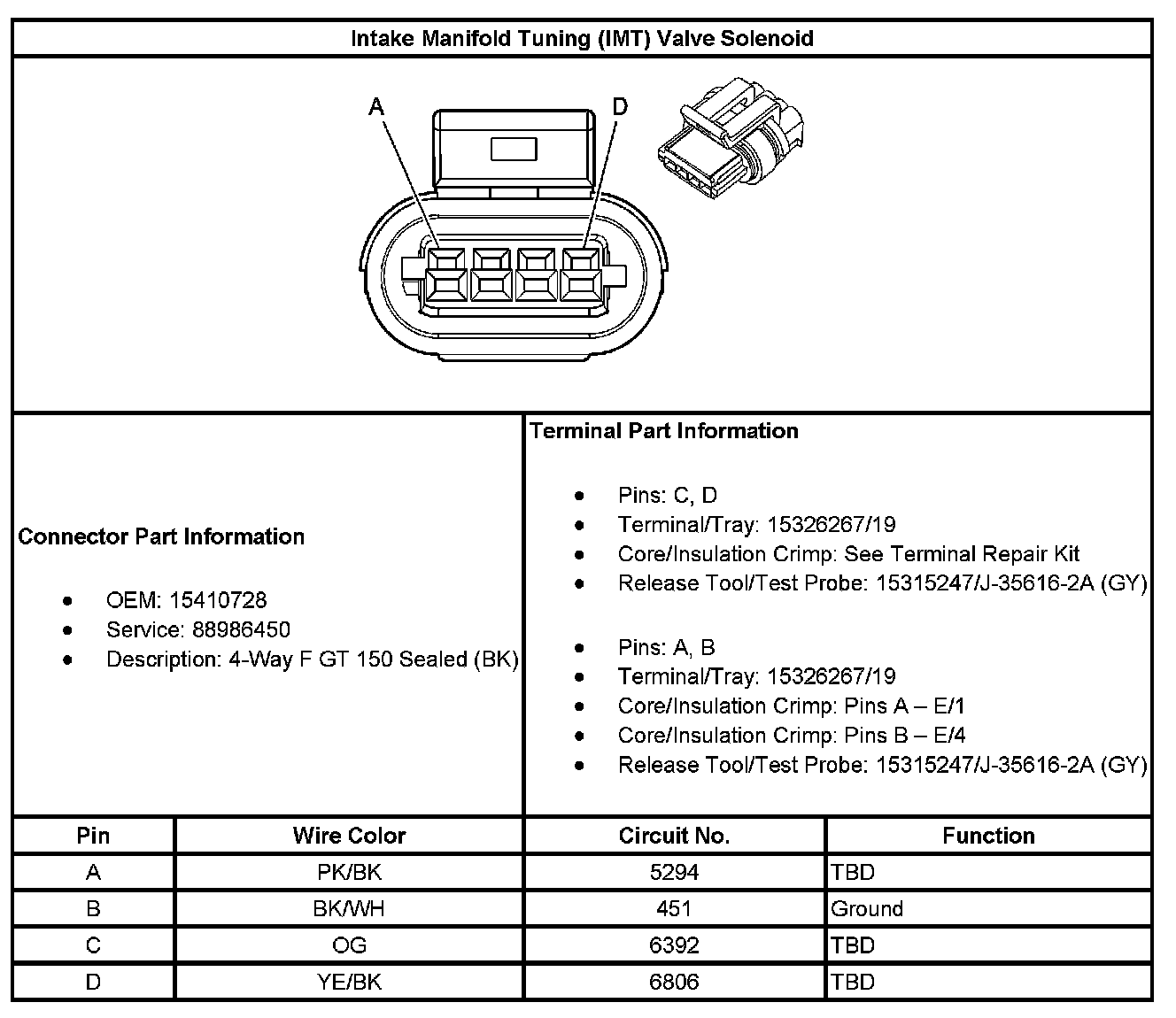

Intake Manifold Tuning (IMT) Valve Solenoid:

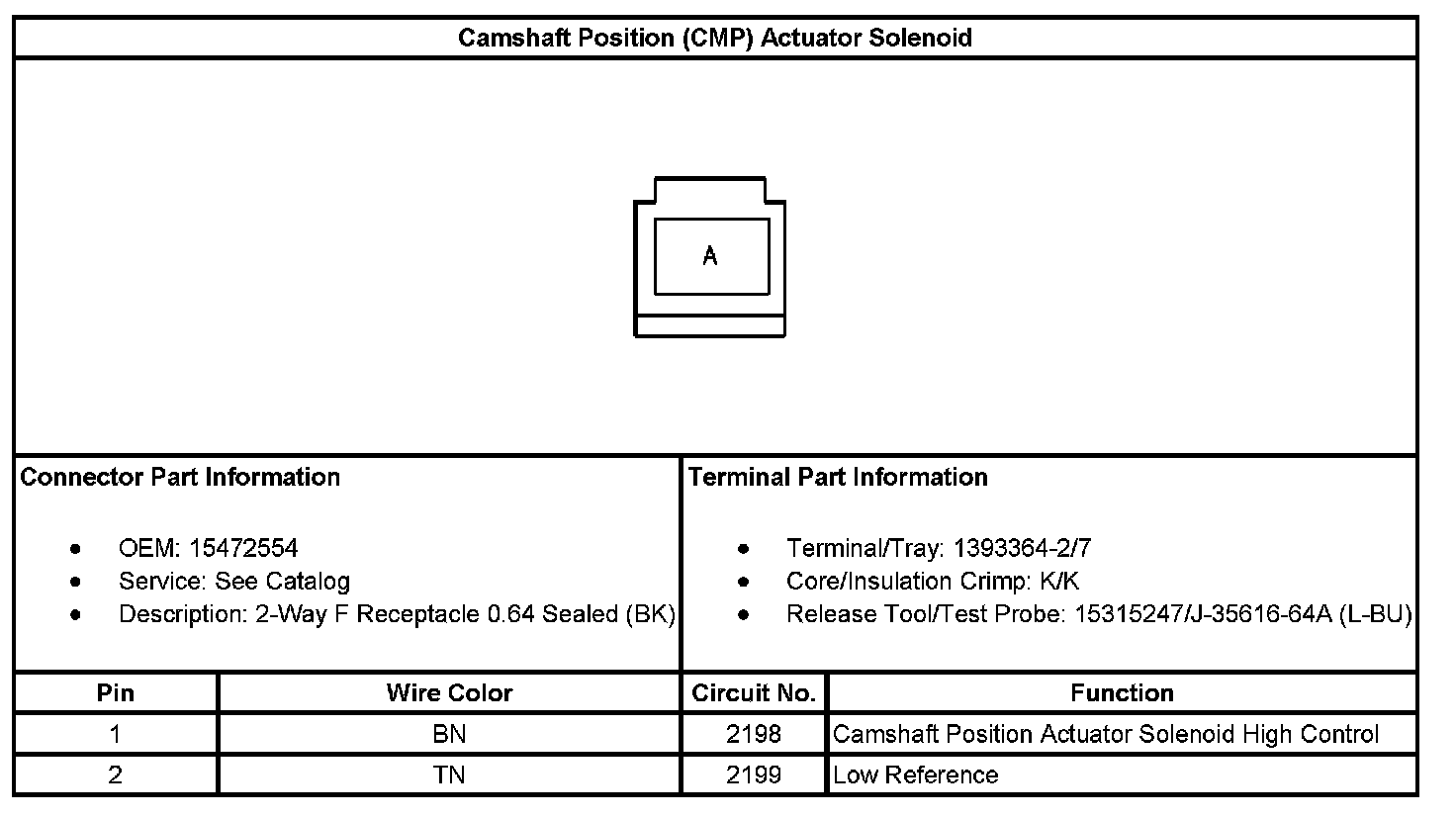

Camshaft Position (CMP) Actuator Solenoid:
