B302A

DTC B302A

DTC DESCRIPTOR

DTC B302A
Telematic Requested Immobilization Security

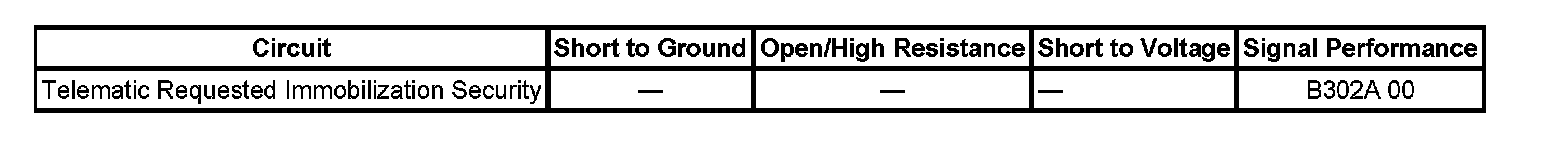

DIAGNOSTIC FAULT INFORMATION






IMPORTANT: Always perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Testing and Inspection

CIRCUIT/SYSTEM DESCRIPTION
Pass Key 3 Plus is not authorizing powertrain to start the engine due to a valid request from enhanced services to immobilize.

CONDITIONS FOR RUNNING THE DTC
Ignition must be in Run or Accessory mode.

CONDITIONS FOR SETTING THE DTC
The controller detects that Enhanced Services Immobilization Active will display True. The Warning indicator will be requested ON.

CONDITIONS FOR CLEARING THE DTC
The controller detects that Enhanced Services Immobilization Active will display False and the Warning Indicator will be requested OFF.

ACTION TAKEN WHEN THE DTC SETS
Security telltale ON, driver information center (DIC) will display Starting Disabled.

REPAIR INSTRUCTIONS

IMPORTANT: Always perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
