B3031

DTC B3031

DTC DESCRIPTOR

DTC B3031
Security System Controller In Learn Mode

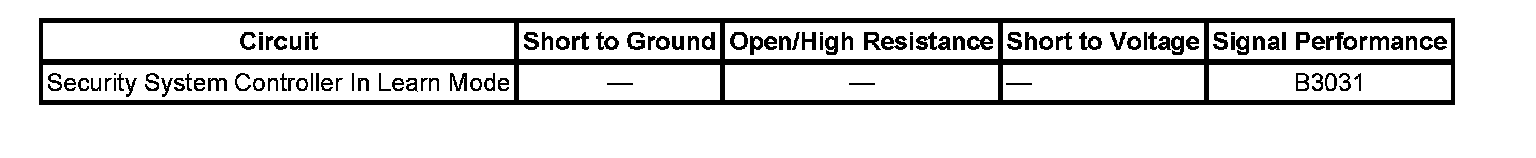

DIAGNOSTIC FAULT INFORMATION






IMPORTANT: Always perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Testing and Inspection

CIRCUIT/SYSTEM DESCRIPTION
Vehicle theft deterrent is in Learned Coded Key Mode.

CONDITIONS FOR RUNNING THE DTC
The ignition must be in Accessory or Run mode for this code to set.

CONDITIONS FOR SETTING THE DTC
When XXX enters learn coded key state, the current DTC is enabled. This is a notification that we are in learn coded key state. This is not an indication of a failure.

CONDITIONS FOR CLEARING THE DTC
Module battery voltage is greater than the normal voltage low limit, 9 volts.

ACTION TAKEN WHEN THE DTC SETS
Security telltale ON.

REPAIR INSTRUCTIONS

IMPORTANT: Always perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
