B3105

DTC B3105

DTC DESCRIPTOR

DTC B3105
Keyless Entry System Key Fobs Not Programmed

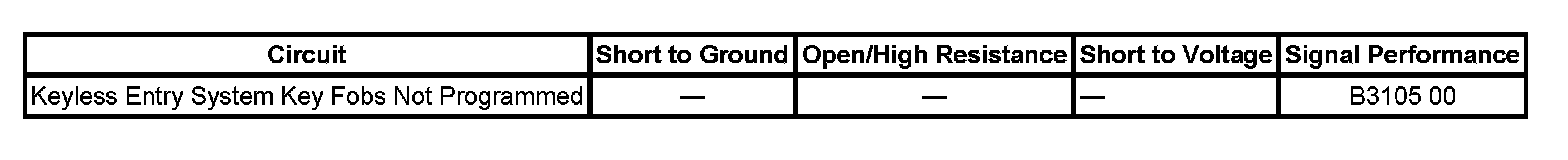

DIAGNOSTIC FAULT INFORMATION






IMPORTANT: Always perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Testing and Inspection

CIRCUIT/SYSTEM DESCRIPTION
DTC 3105 sets if the remote control door lock receiver (RCDLR) has not learned any key fobs.

CONDITIONS FOR RUNNING THE DTC
The remote function actuation (RFA) system must be enabled and a test is ran every time the key is cycled.

CONDITIONS FOR SETTING THE DTC
This code is set if there are no learned key fobs in the RCDLR.

CONDITIONS FOR CLEARING THE DTC
The code is cleared as current when at least one fob is programmed to the RCDLR.

ACTION TAKEN WHEN THE DTC SETS
The RFA system is inoperative.

REPAIR INSTRUCTIONS

IMPORTANT: Always perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
