Door Locks: Diagrams
Door Lock - Driver (With RPO Code UA6):

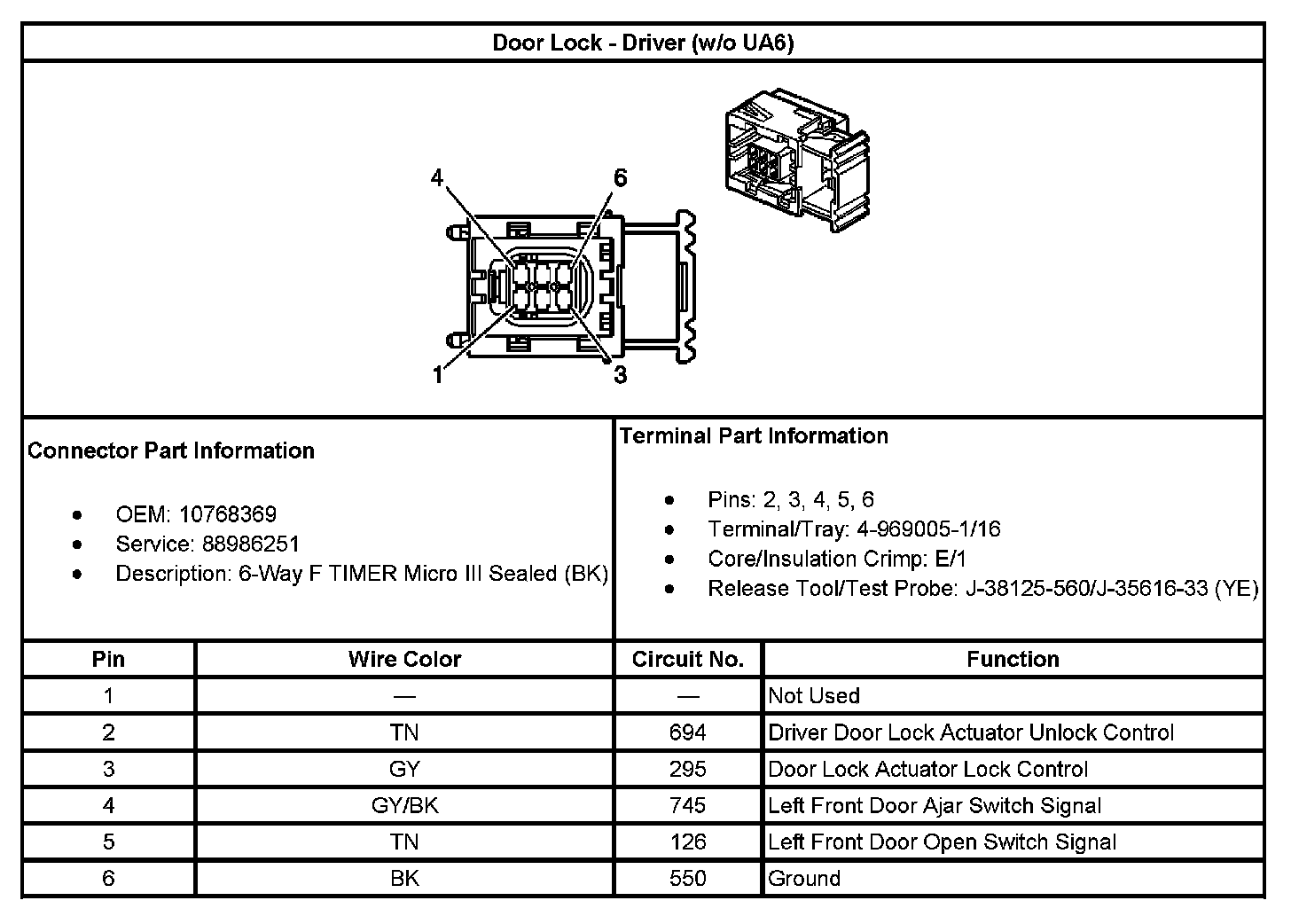

Door Lock - Driver (Without RPO Code UA6):

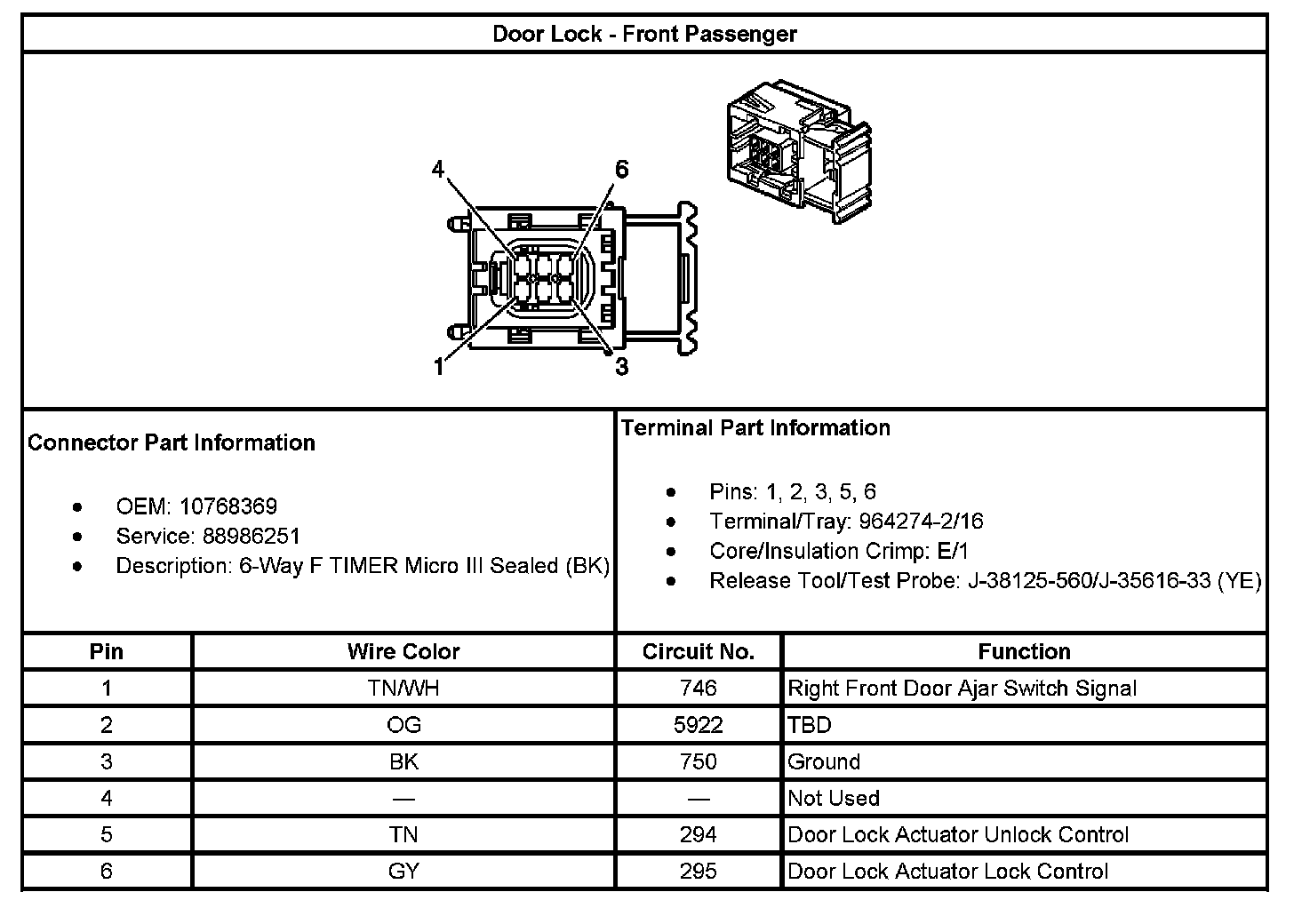

Door Lock - Front Passenger:

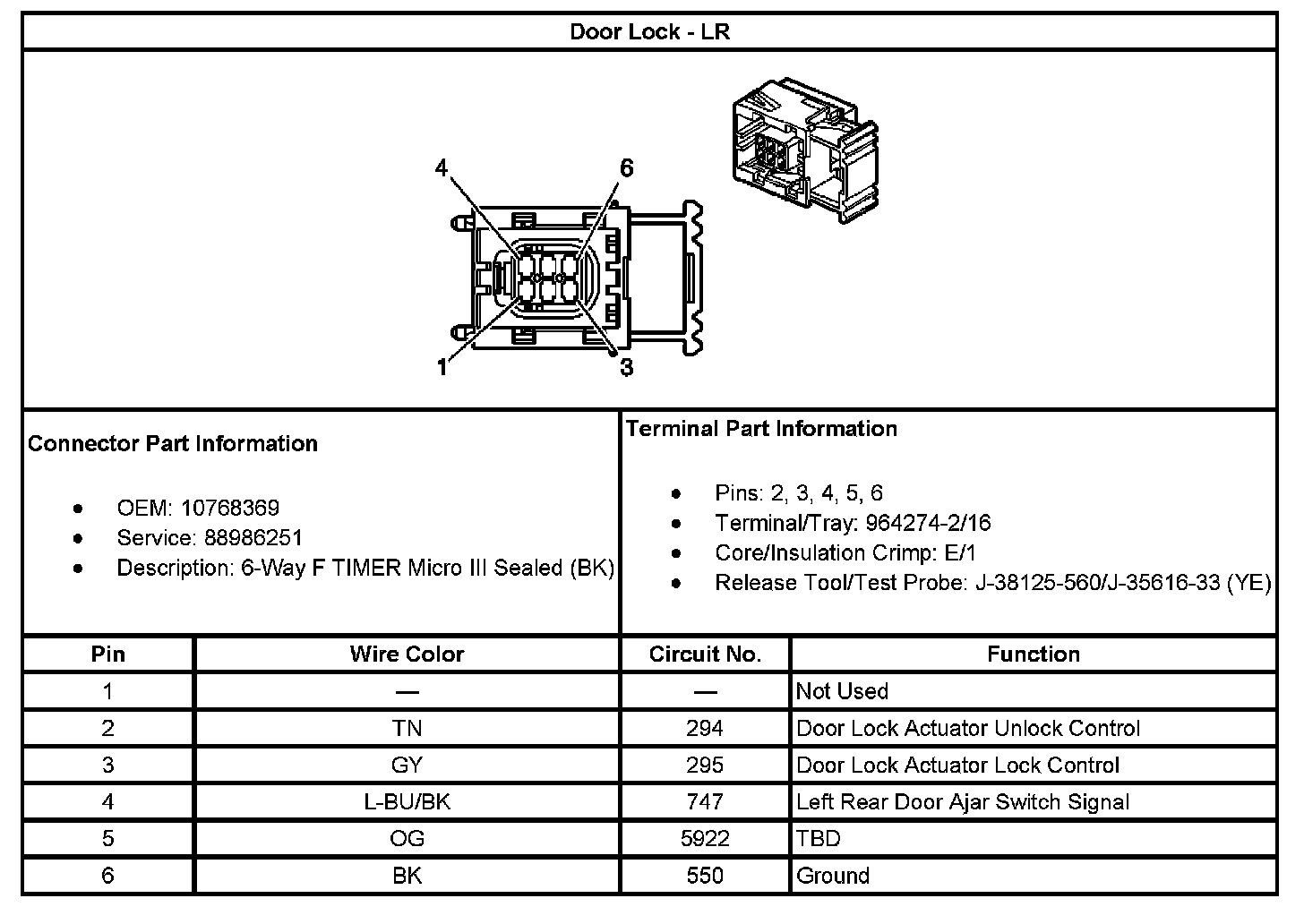

Door Lock - LR:
Door Lock - RR:
