Amplifier, Sound System
>>
Audio Amplifier C1
Audio Amplifier C1

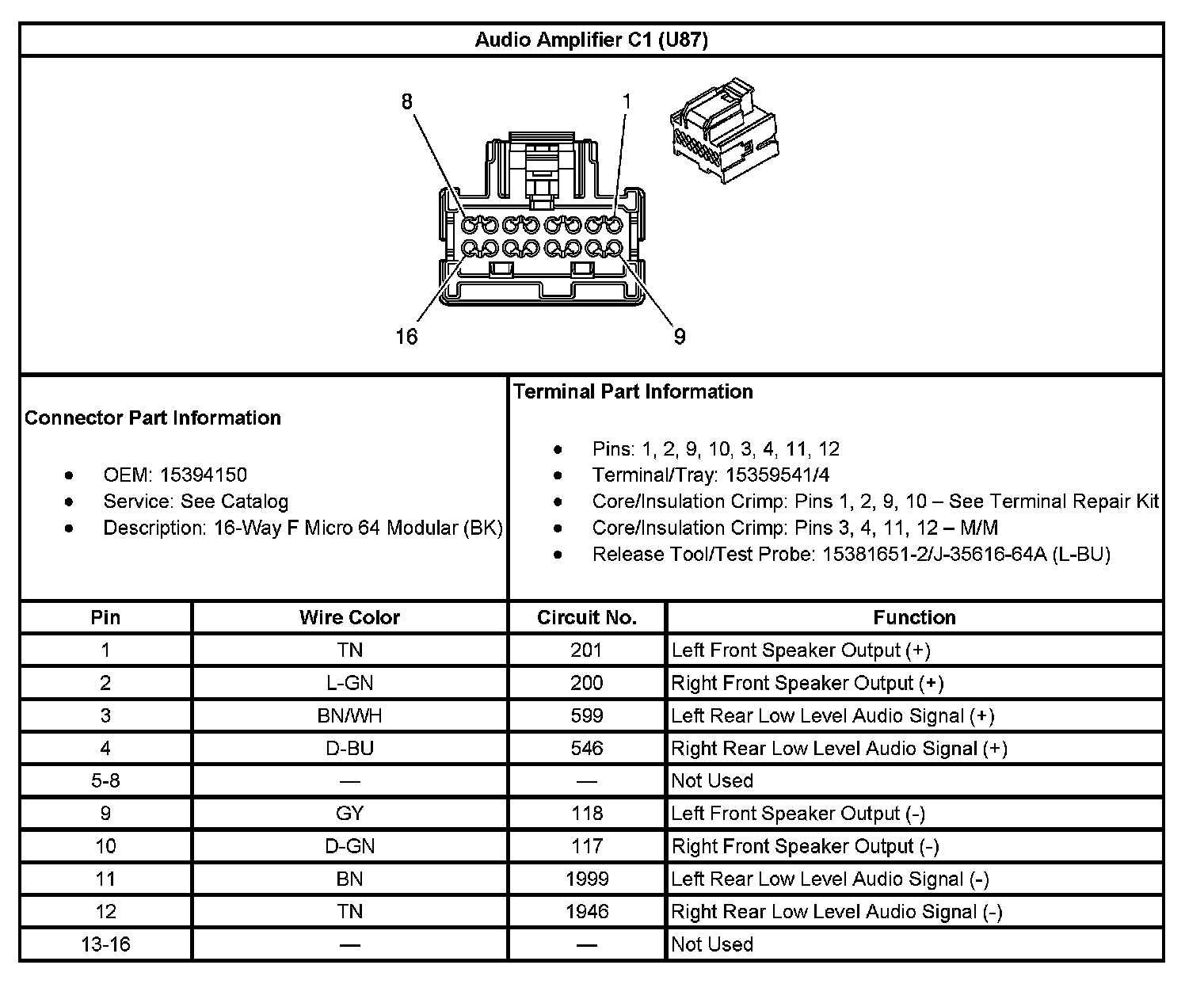

Audio Amplifier C1 (With RPO Code U87):

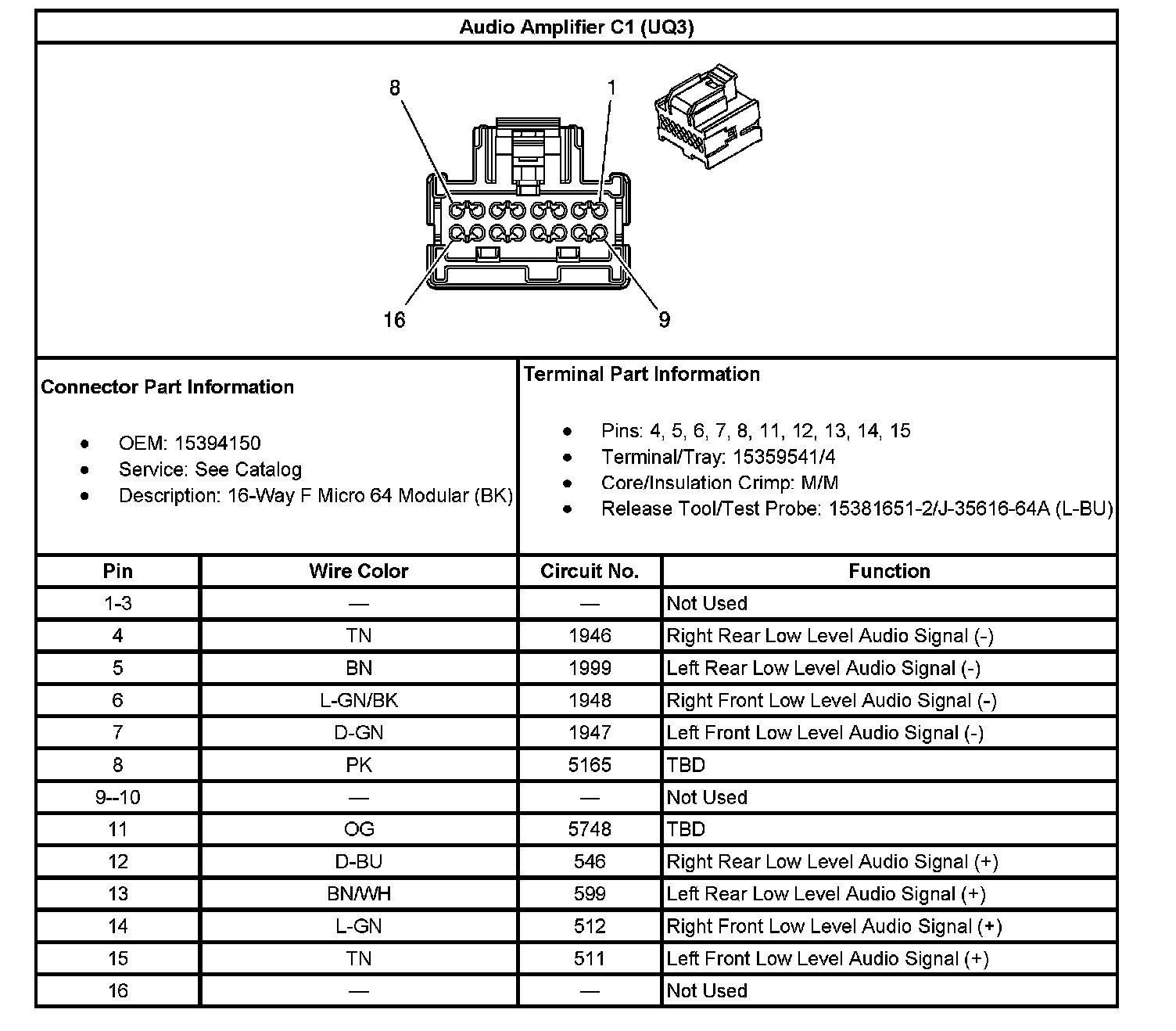

Audio Amplifier C1 (With RPO Code UQ3):
