Amplifier, Sound System
>>
Audio Amplifier C2
Audio Amplifier C2

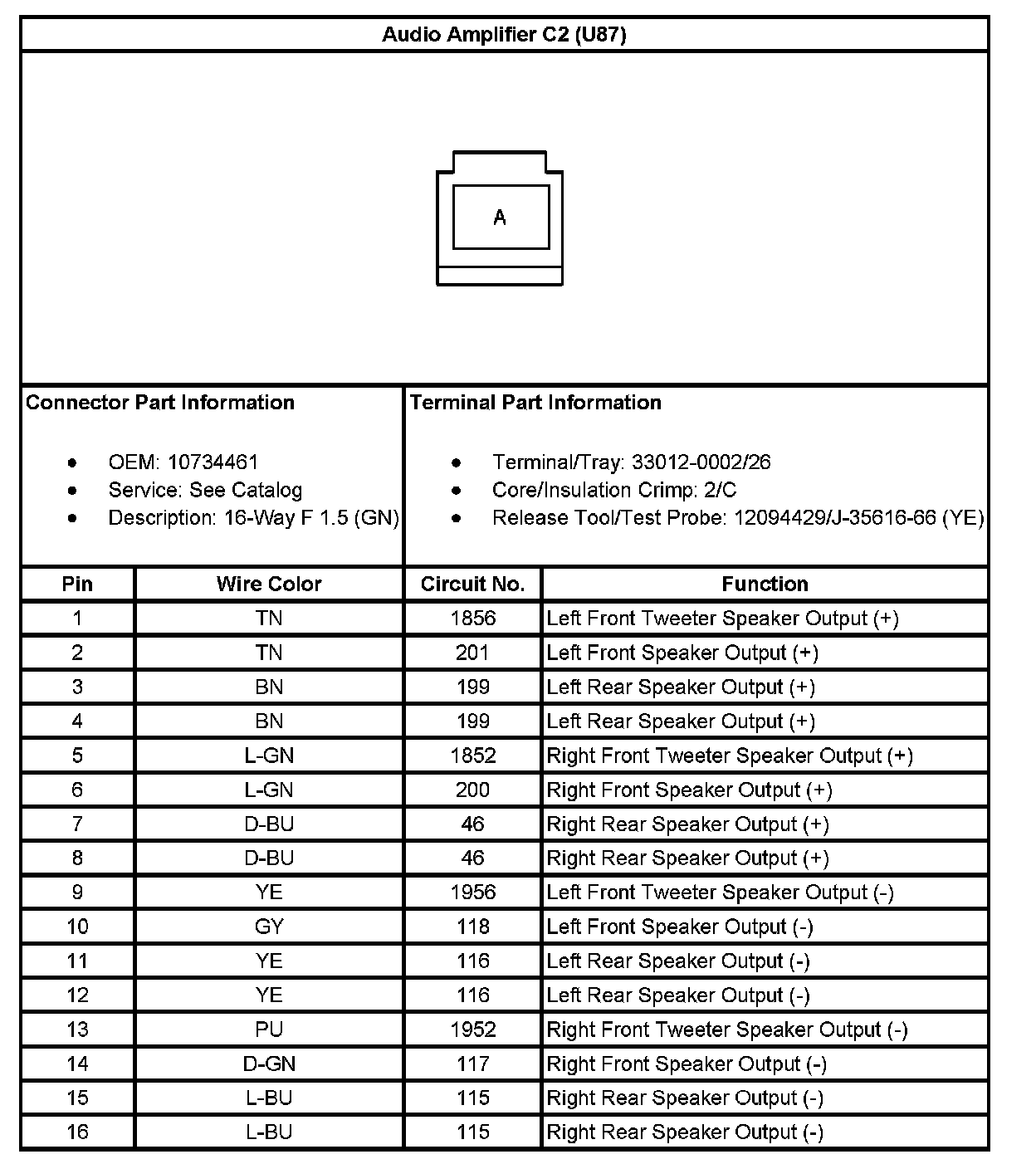

Audio Amplifier C2 (With RPO Code U87):

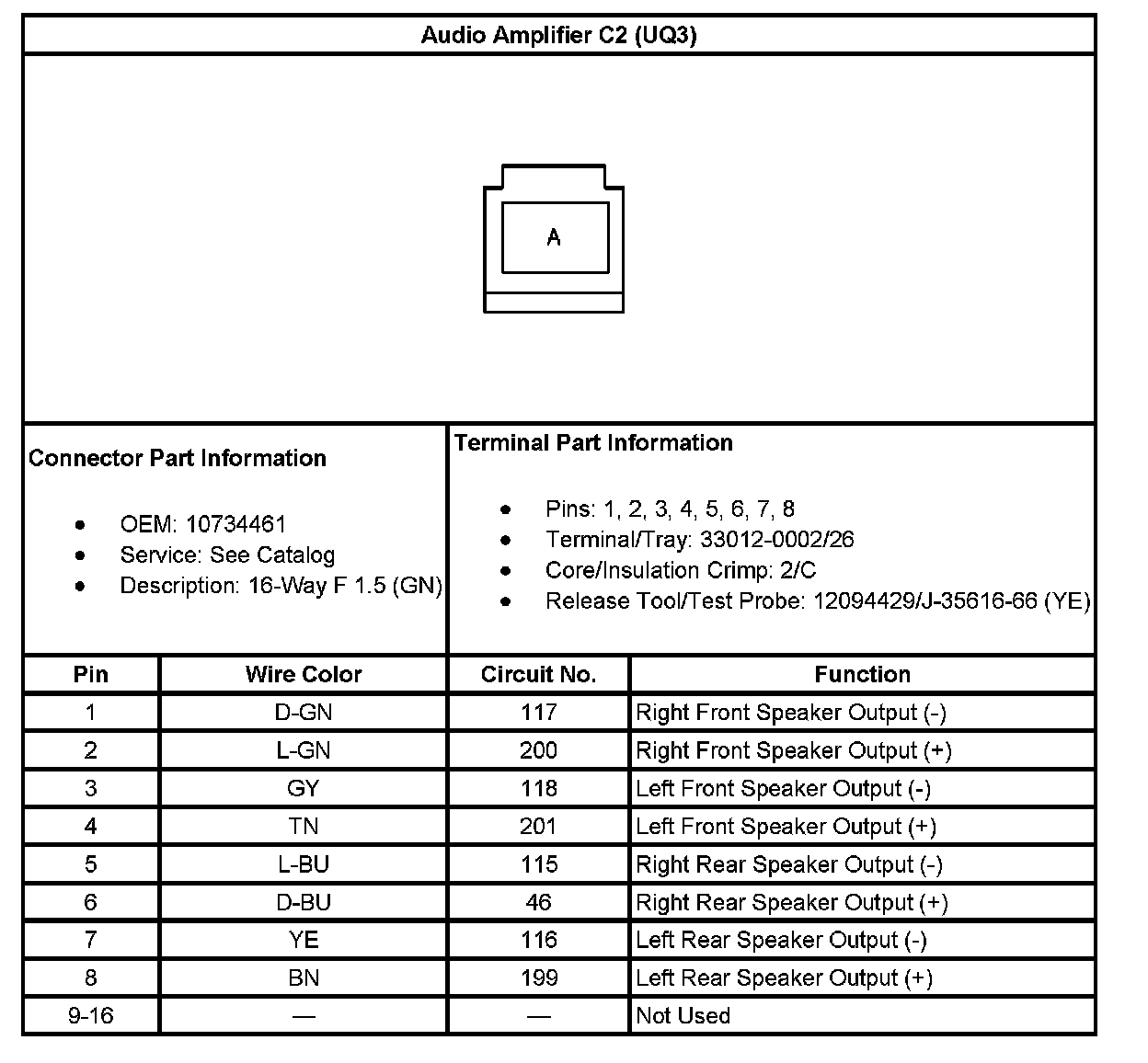

Audio Amplifier C2 (With RPO Code UQ3):
