Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Monte Carlo V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Audio Amplifier C3
Audio Amplifier C3

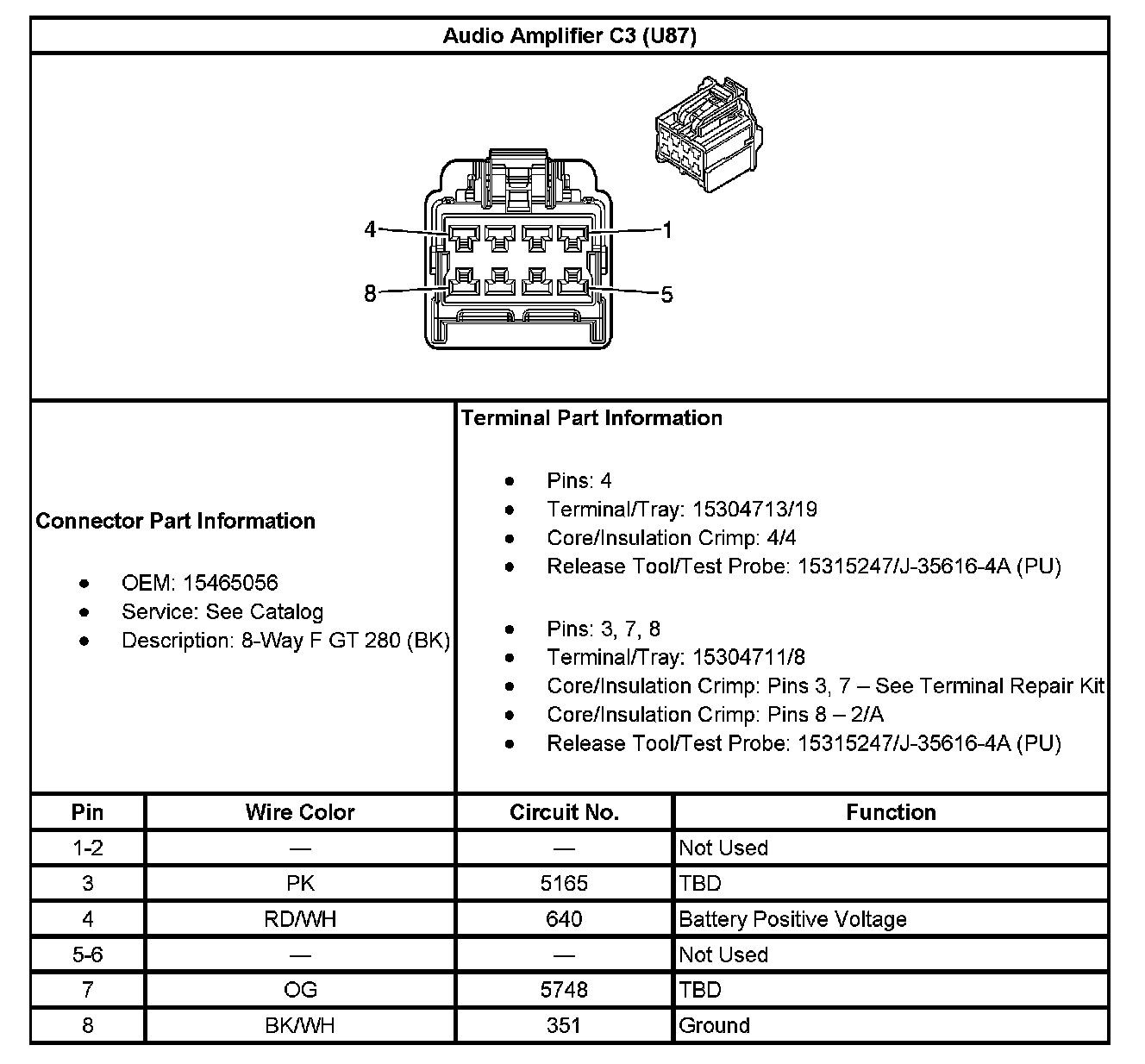

Audio Amplifier C3 (With RPO Code U87):

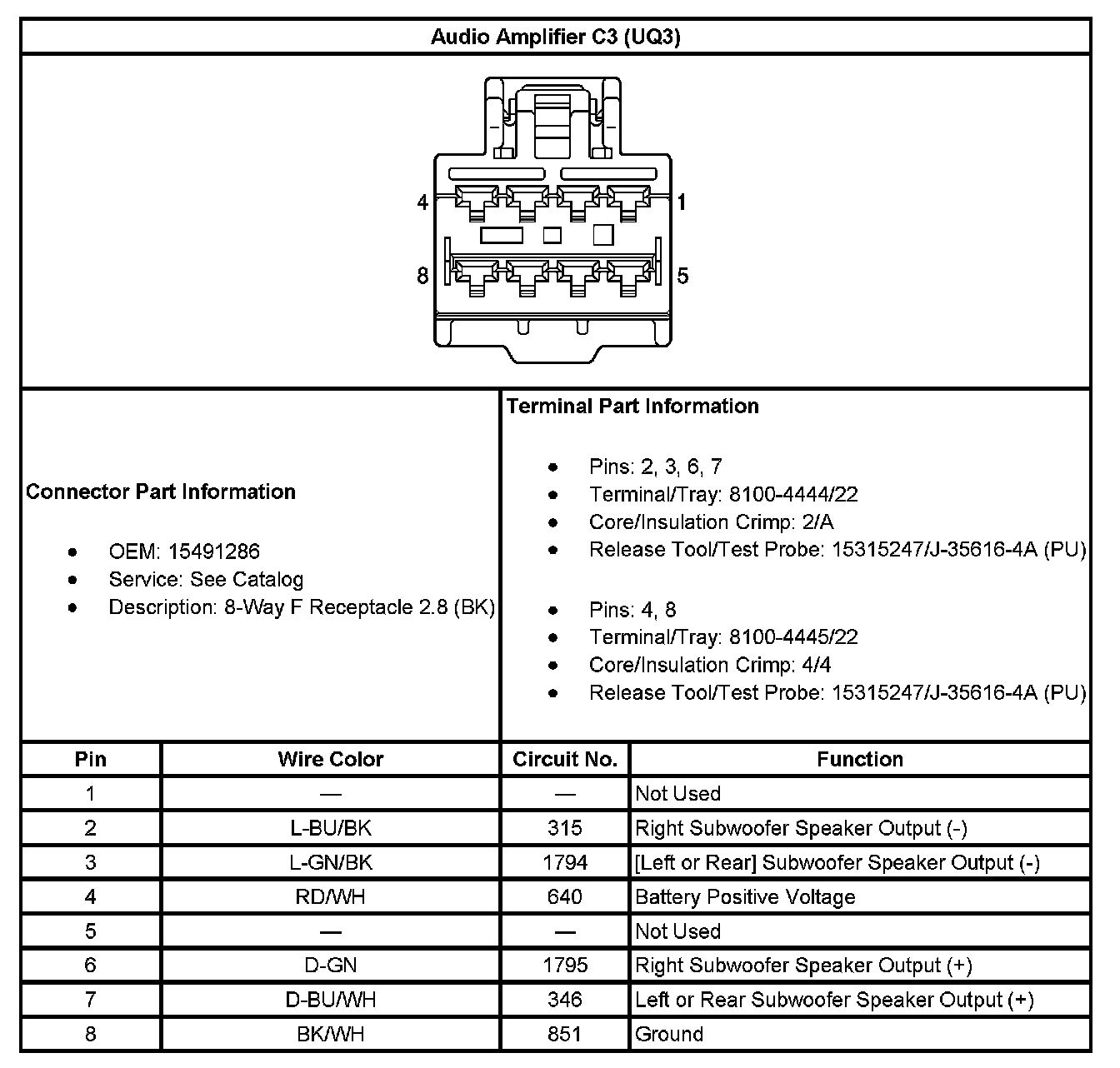

Audio Amplifier C3 (With RPO Code UQ3):
