Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Front 2

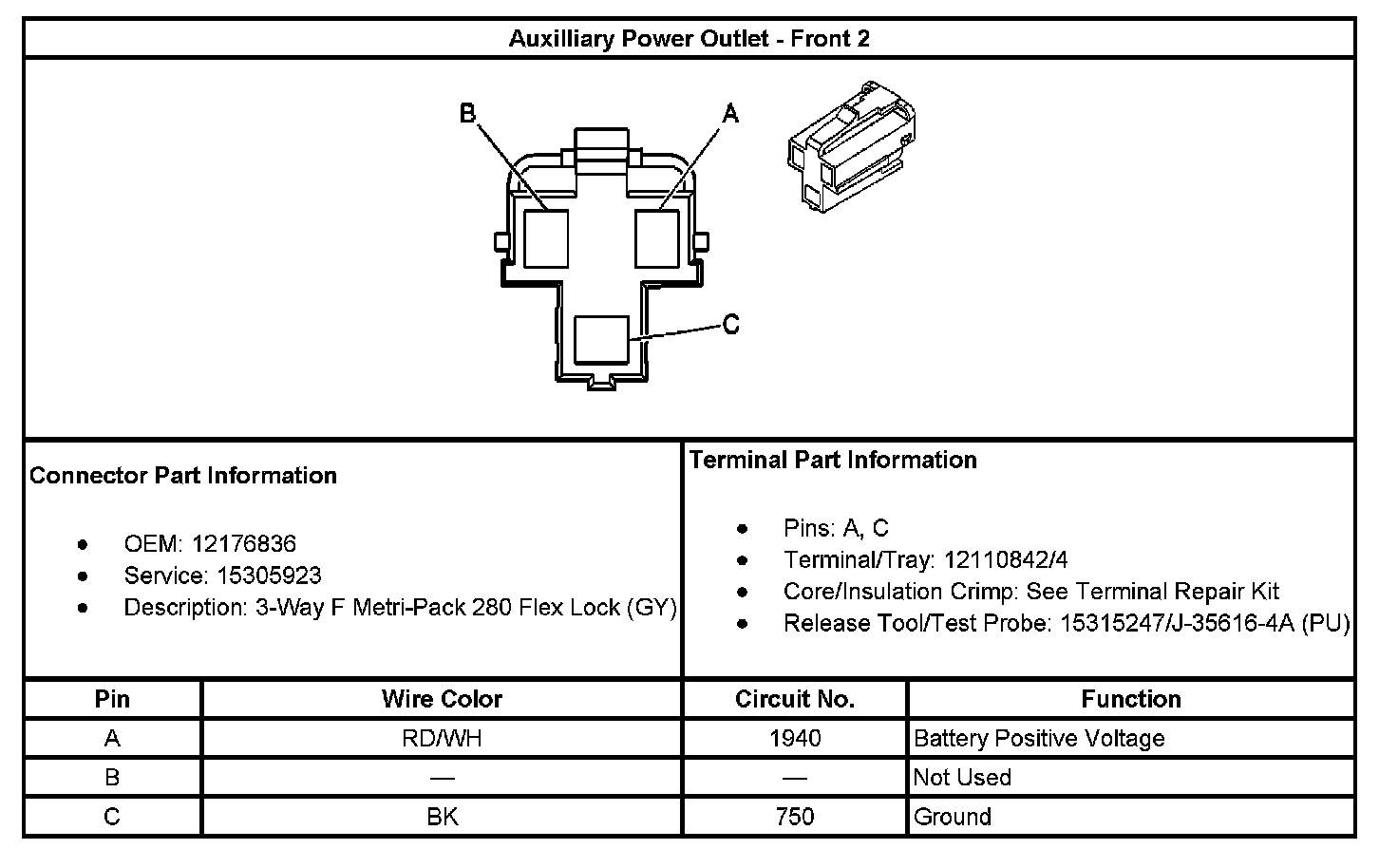

Auxiliary Power Outlet - Front 2
Auxiliary Power Outlet - Front 2:
