Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Left
Auxiliary Power Outlet - Left
Auxiliary Power Outlet - Left:

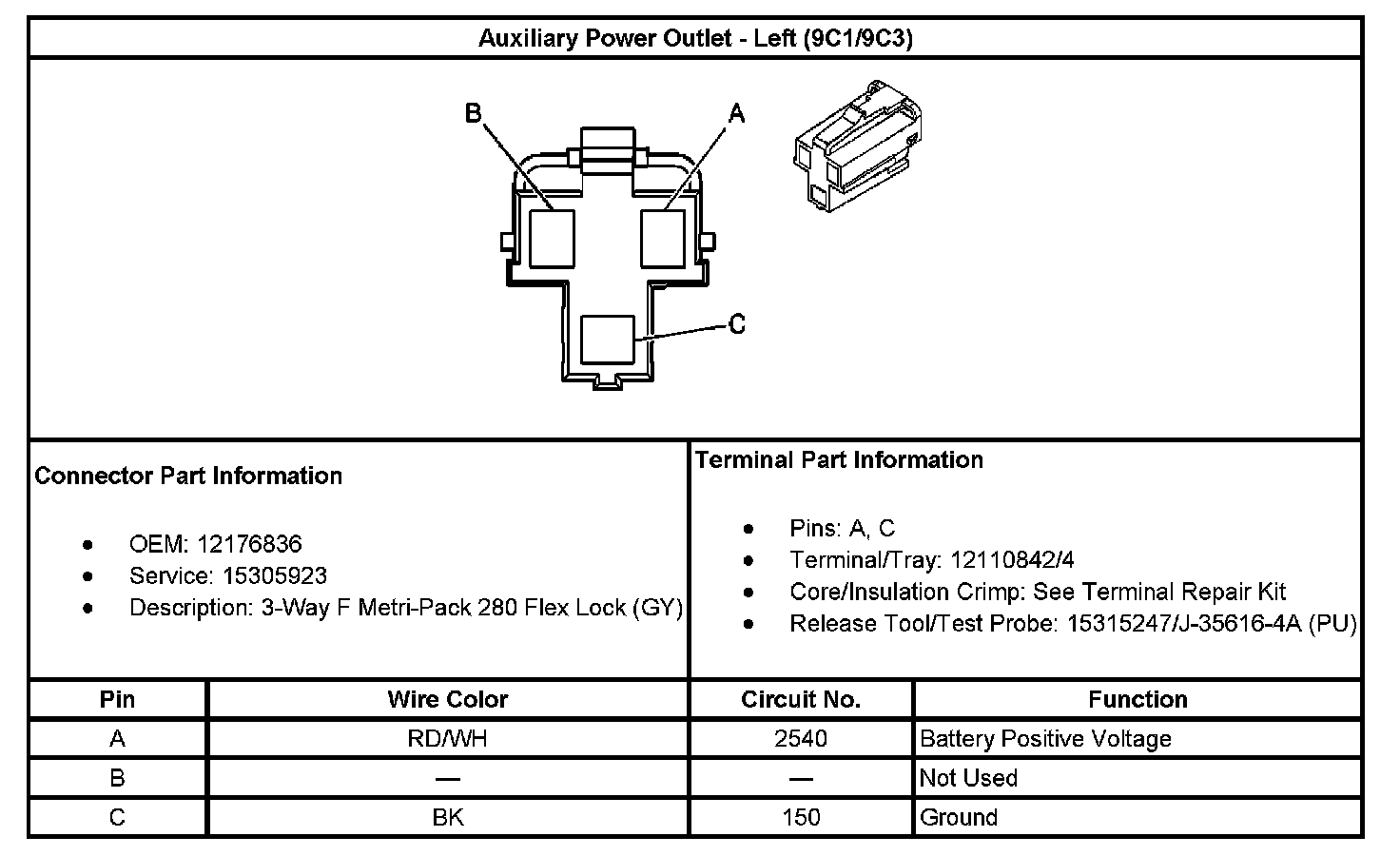

Auxiliary Power Outlet - Left (With RPO Code 9C1/9C3):
