Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Seat

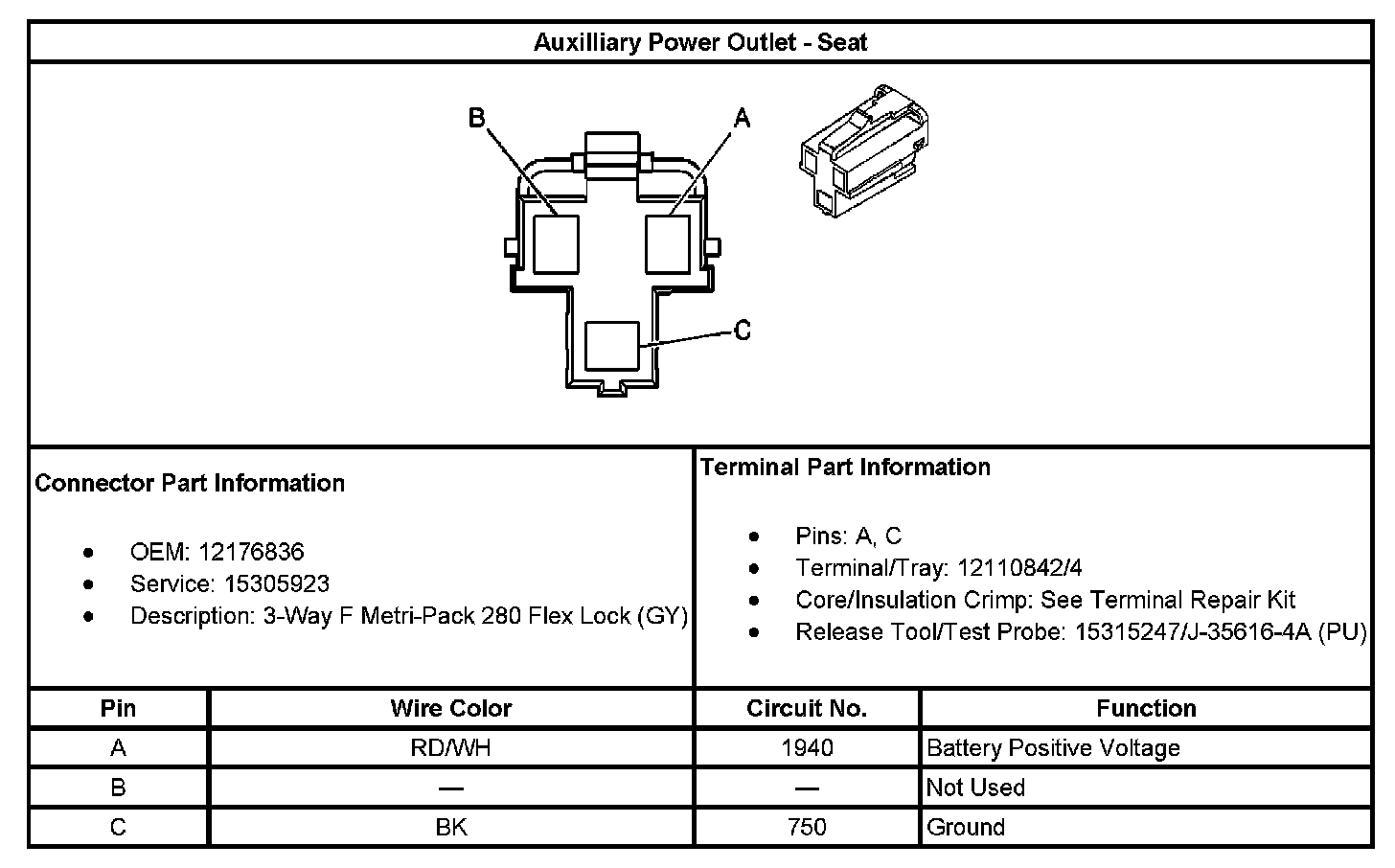

Auxiliary Power Outlet - Seat
Auxiliary Power Outlet - Seat:
