Monte Carlo V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

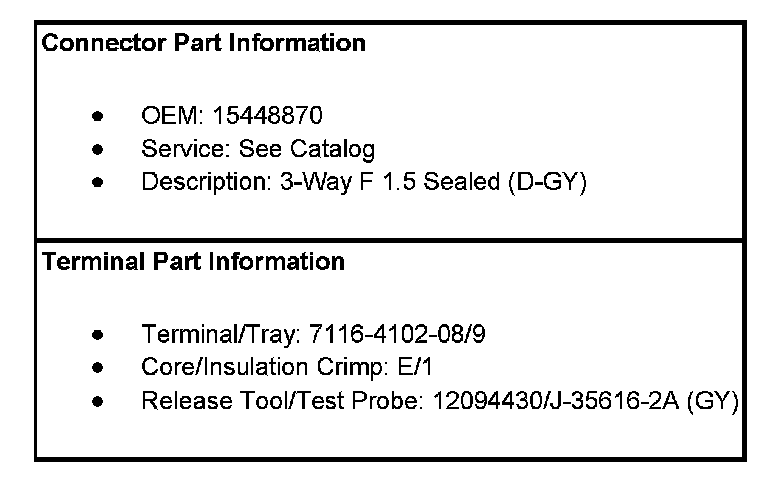

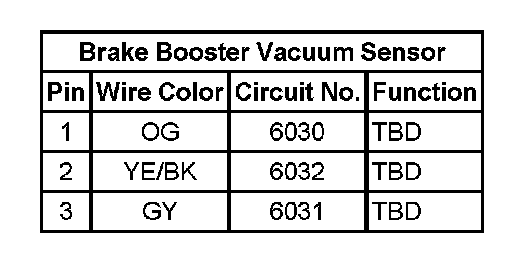

Brake Booster Vacuum Sensor:
Brake Booster Vacum Sensor:
