Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Monte Carlo V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block - I/P C1
Fuse Block - I/P C1

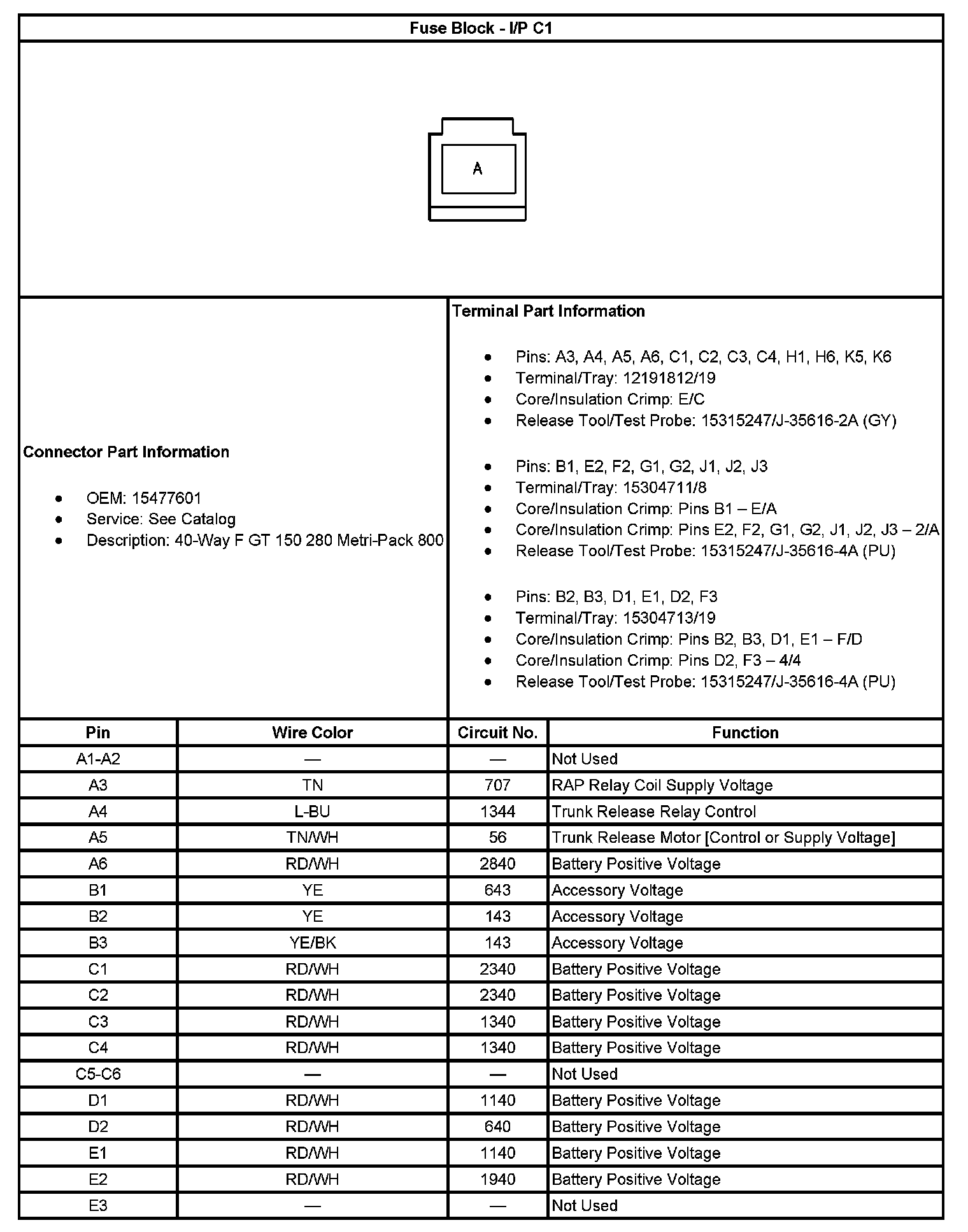

Fuse Block - I/P C1 (Part 1):
Fuse Block - I/P C1 (Part 2):
