Mirrors
>>
System Diagram
System Diagram
Outside Rearview Mirror - Driver:
Outside Rearview Mirror - Passenger:

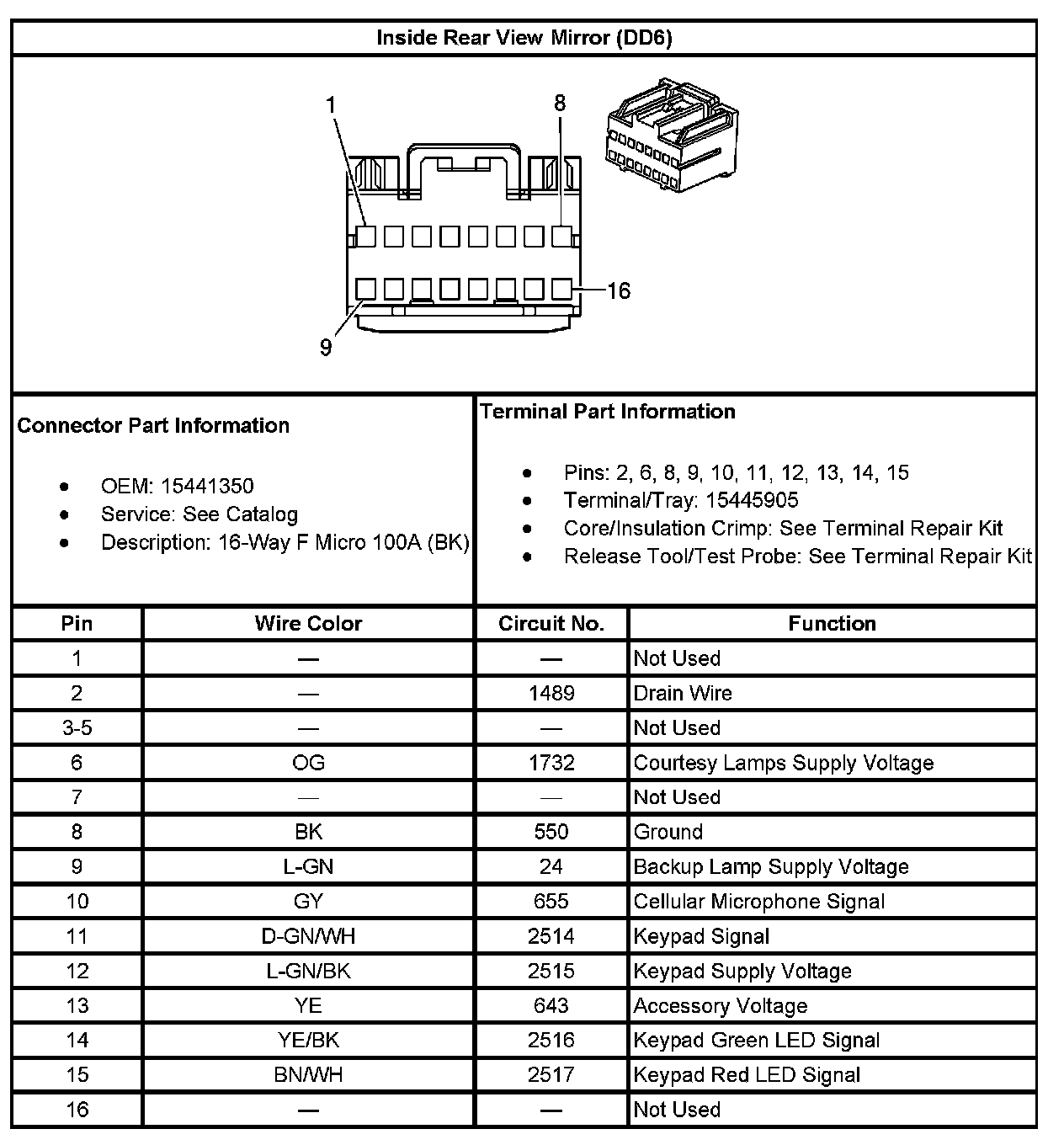

Inside Rear View Mirror (With RPO Code DD6):

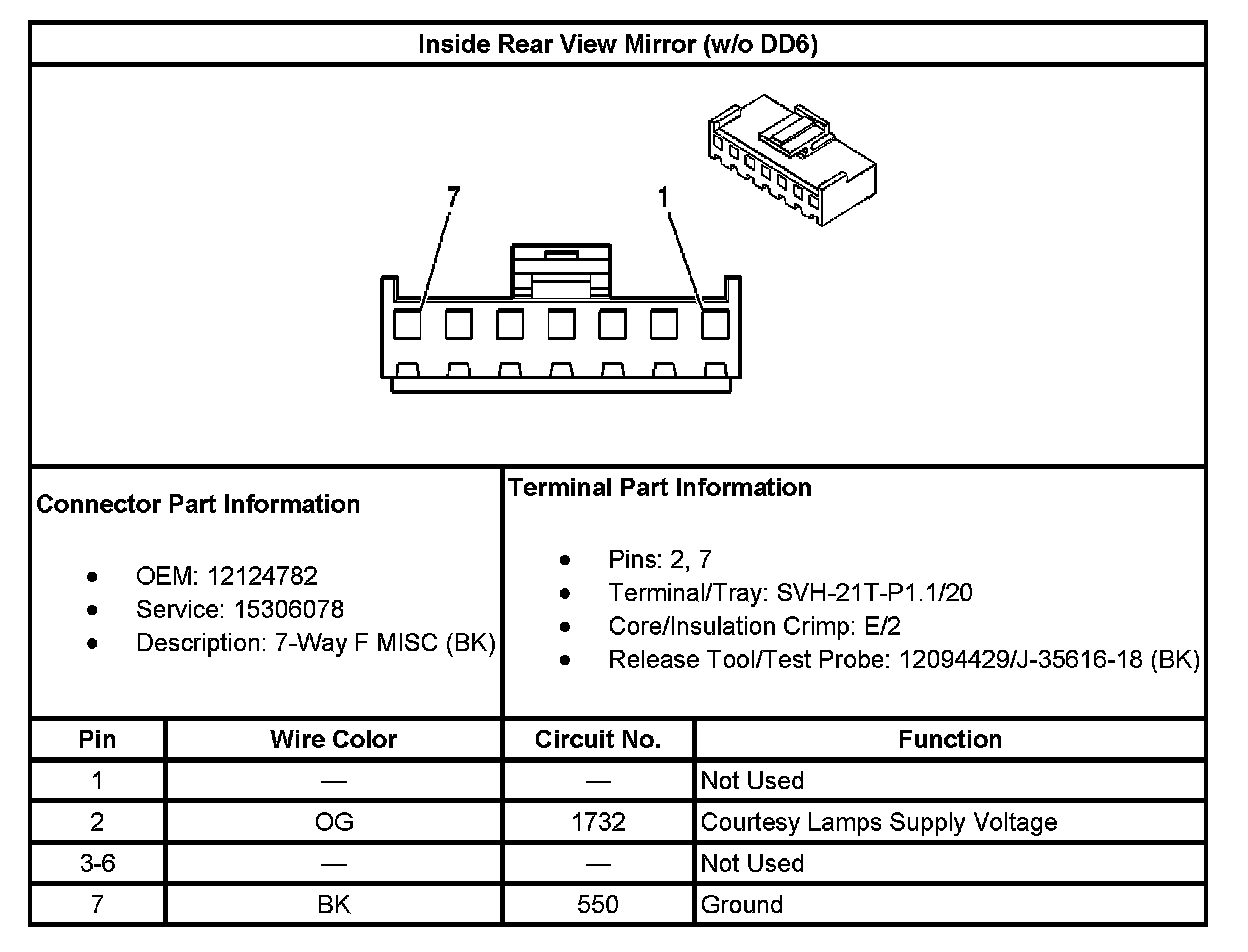

Inside Rear View Mirror (without RPO Code DD6):
