Power Door Lock Actuator
Power Door Lock Actuator

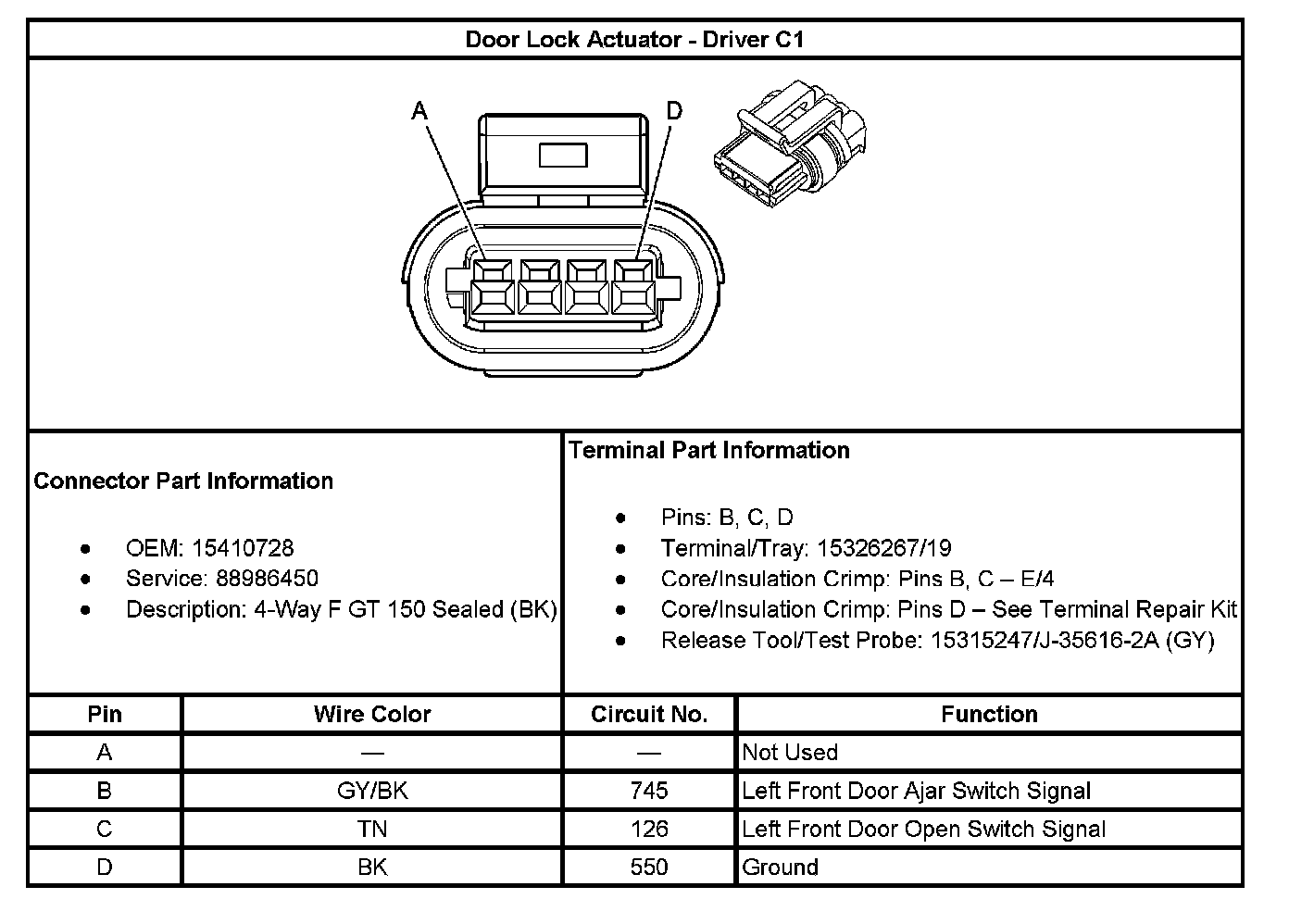

Door Lock Actuator - Driver C1:
Door Lock Actuator - Driver C2:
Door Lock Actuator - Passenger C1:

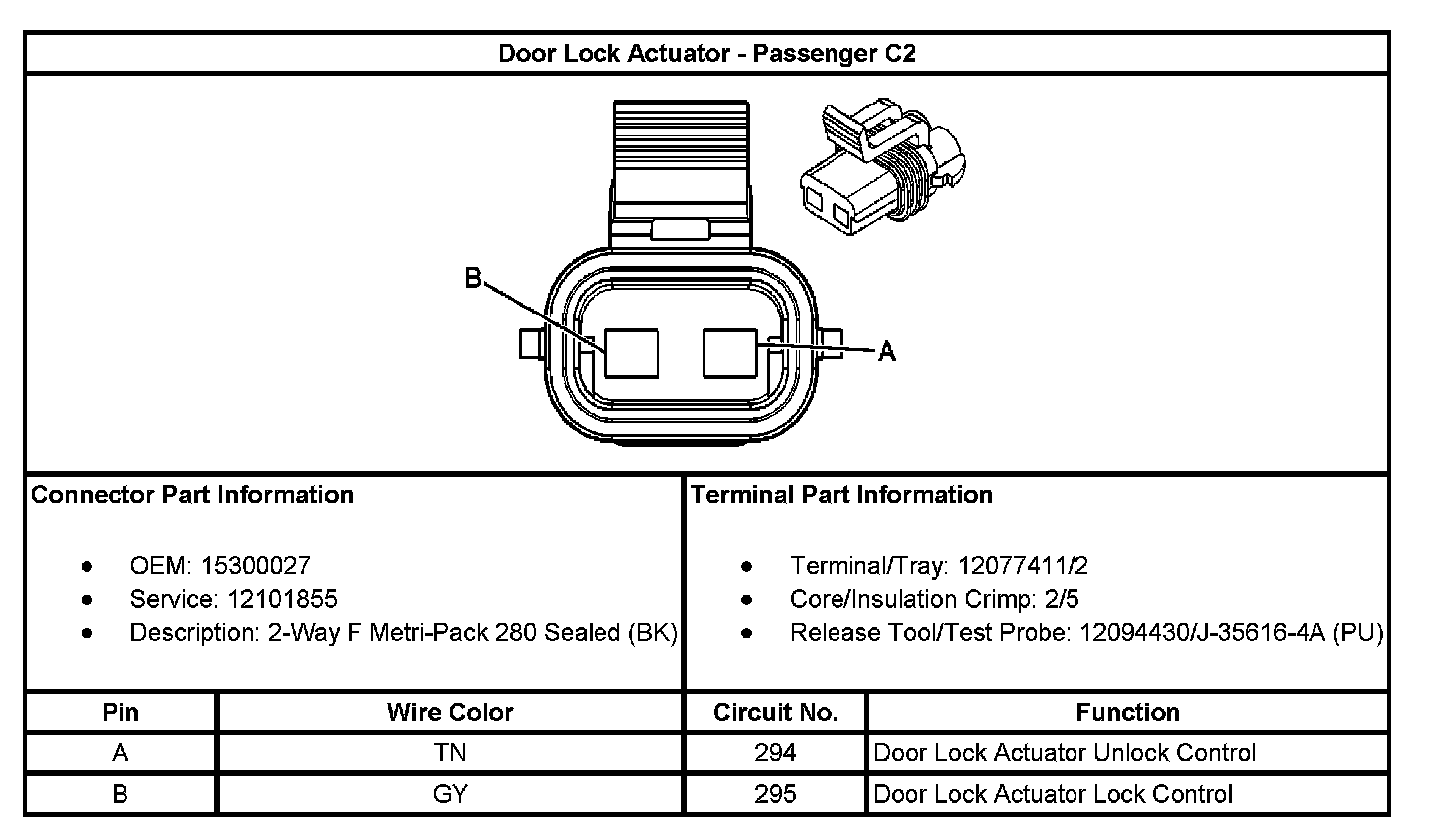

Door Lock Actuator - Passenger C2:
