Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Monte Carlo V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

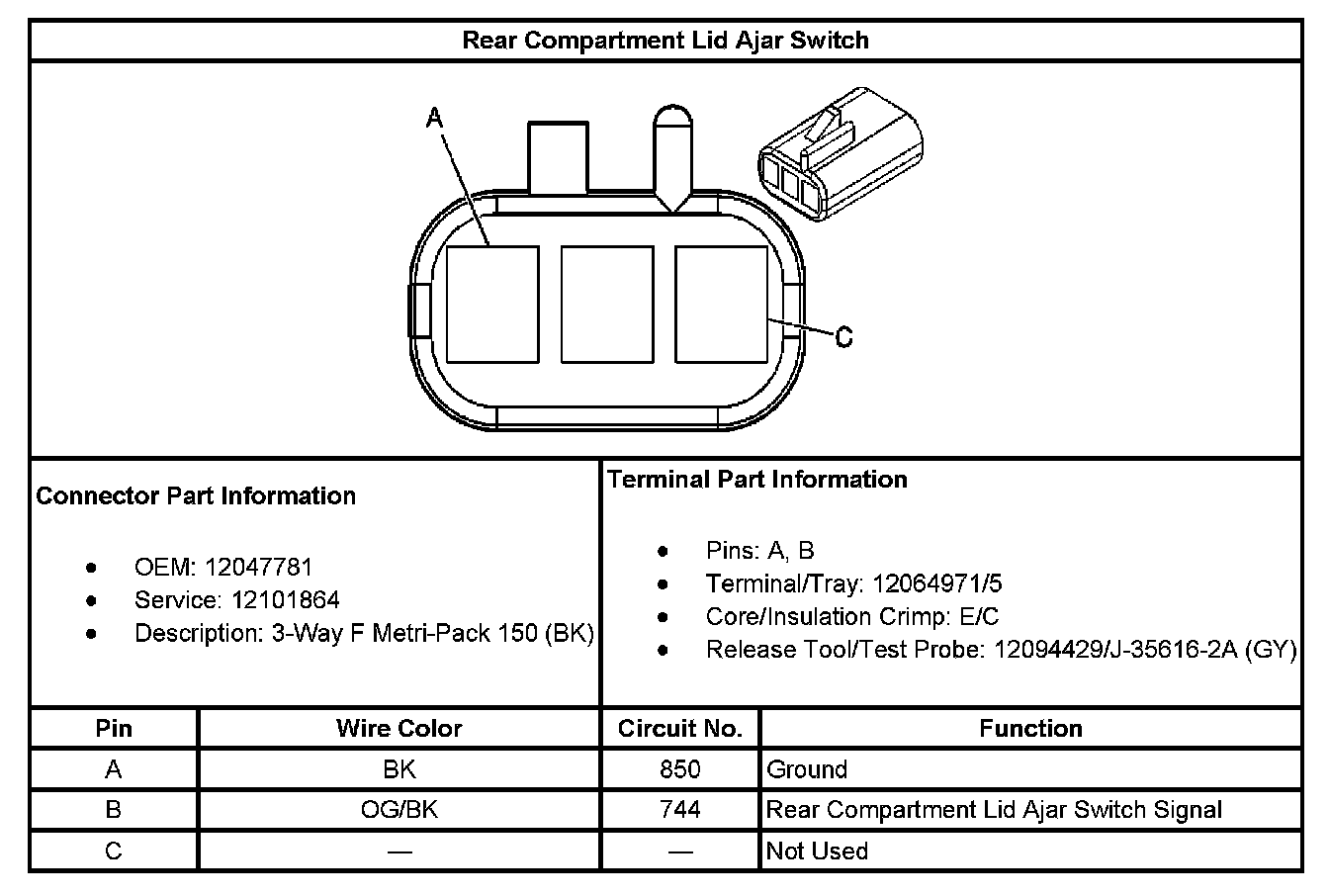

Rear Compartment Lid Ajar Switch:

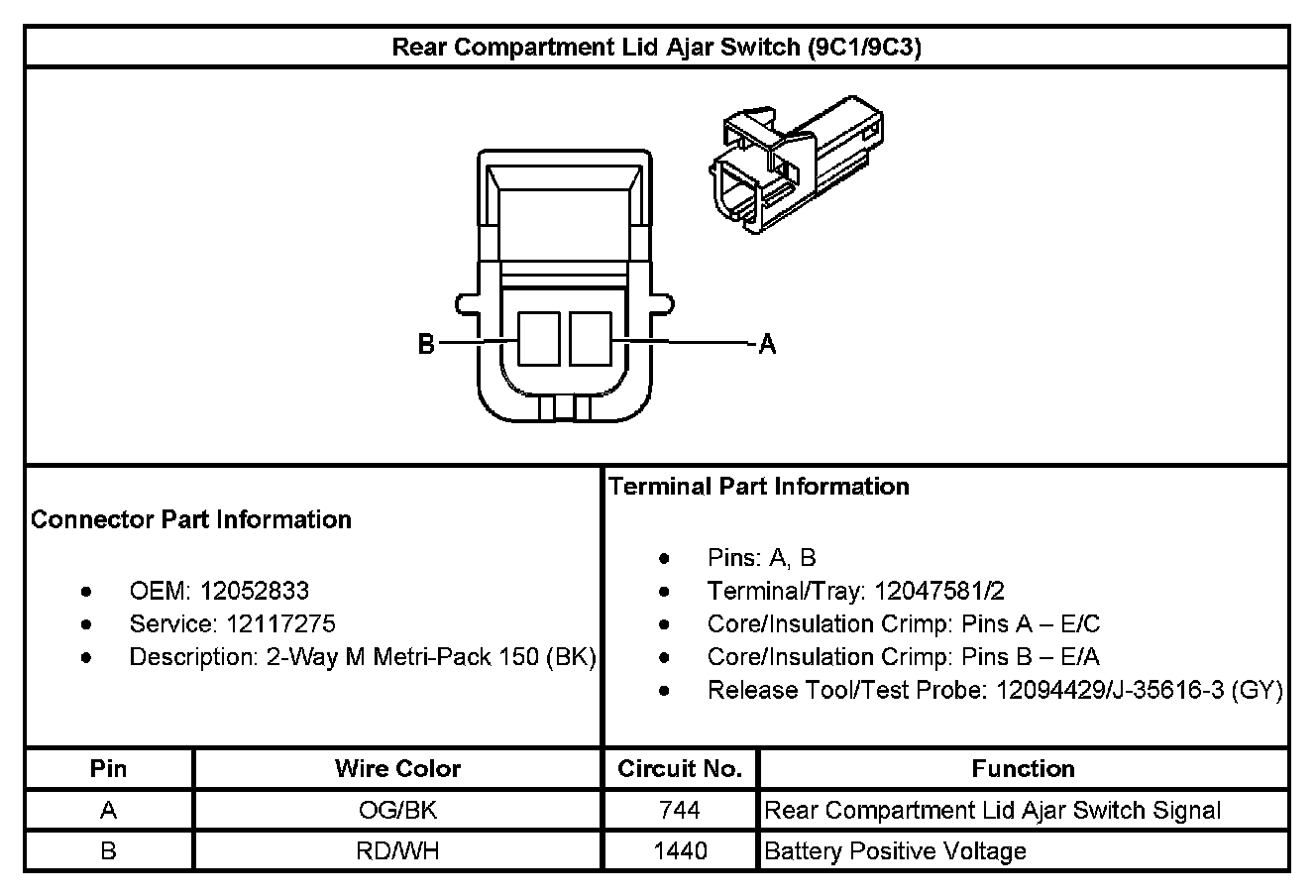

Rear Compartment Lid Ajar Switch (With RPO Code 9C1/9C3):

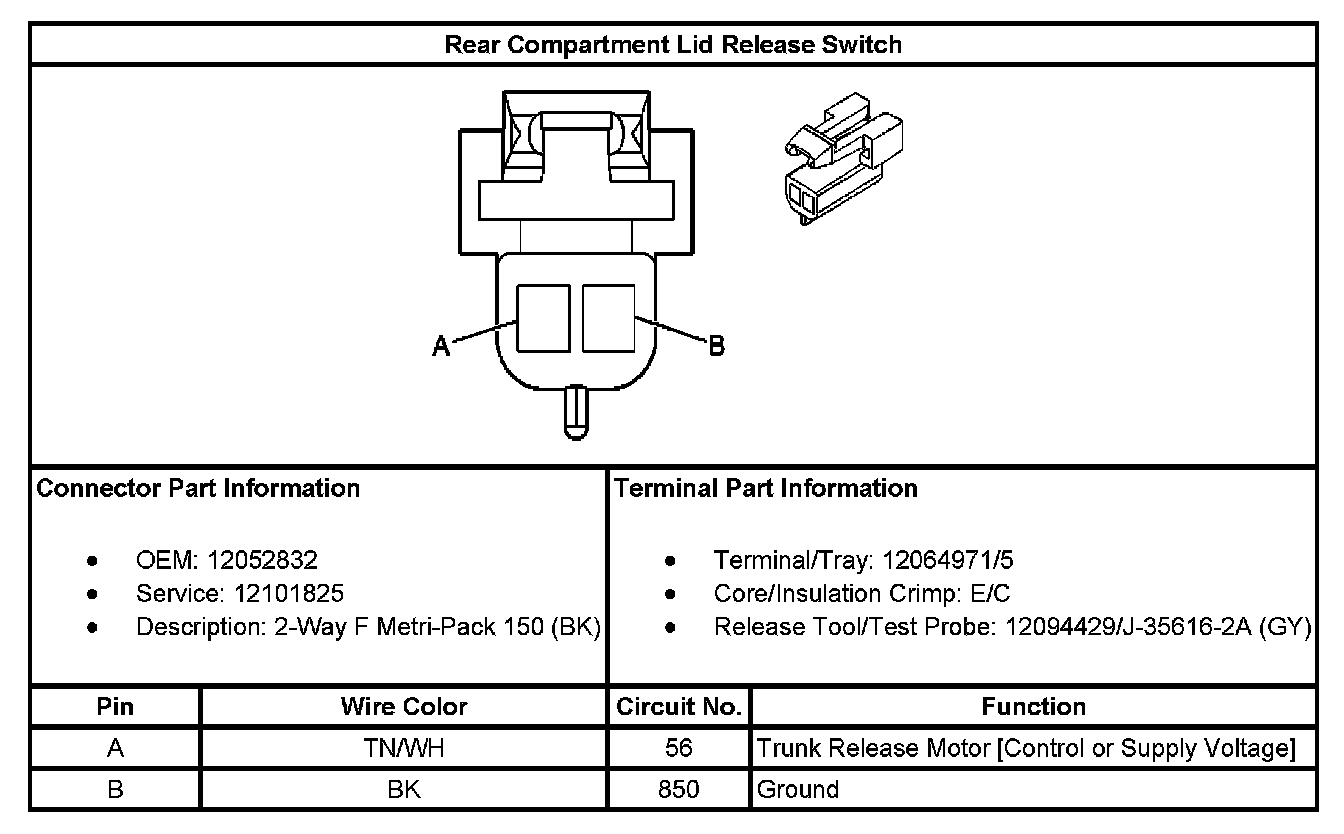

Rear Compartment Lid Release Switch:
