Radio

Radio C1:



Radio C1 (With RPO Code 9C1/9C3):



Radio C2:

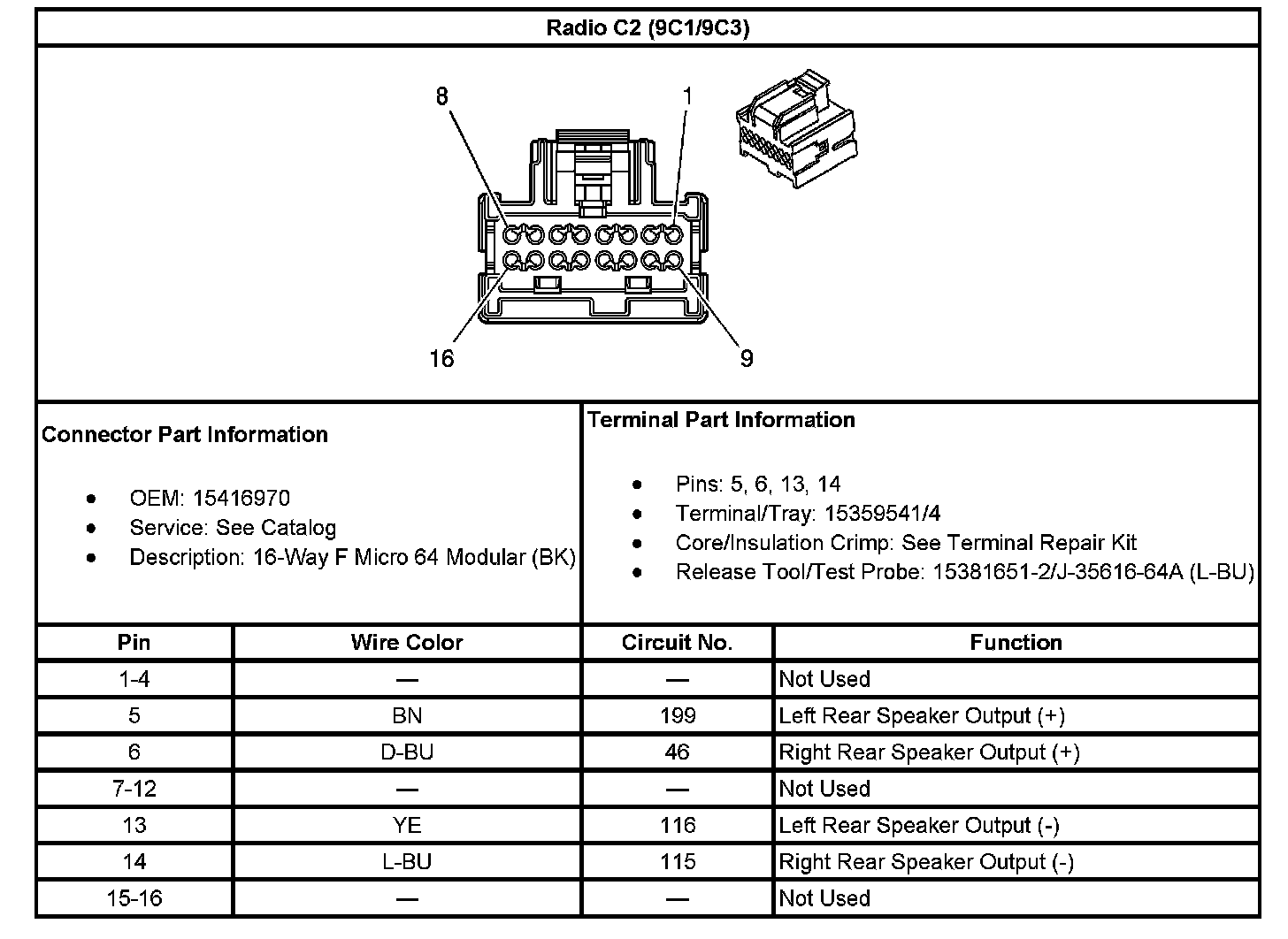

Radio C2 (With RPO Code 9C1/9C3):
