Home
>>
Chevrolet
>>
2006
>>
Monte Carlo V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Speaker - RF Door
Speaker - RF Door
Speaker - RF Door:

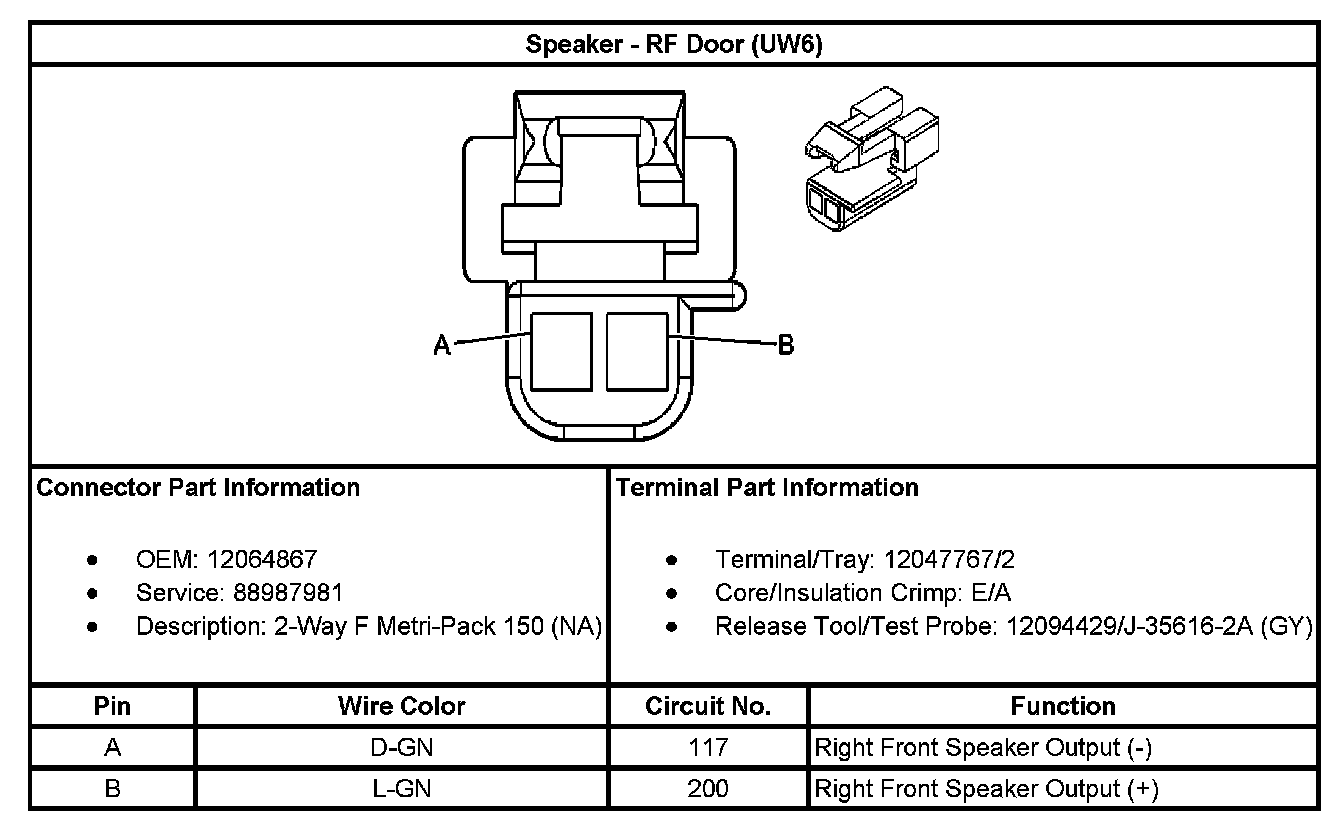

Speaker - RF Door (With RPO Code UW6):
