Steering Column Lock

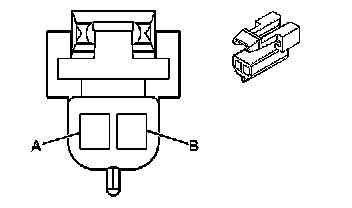

Steering Wheel and Column Connector End Views

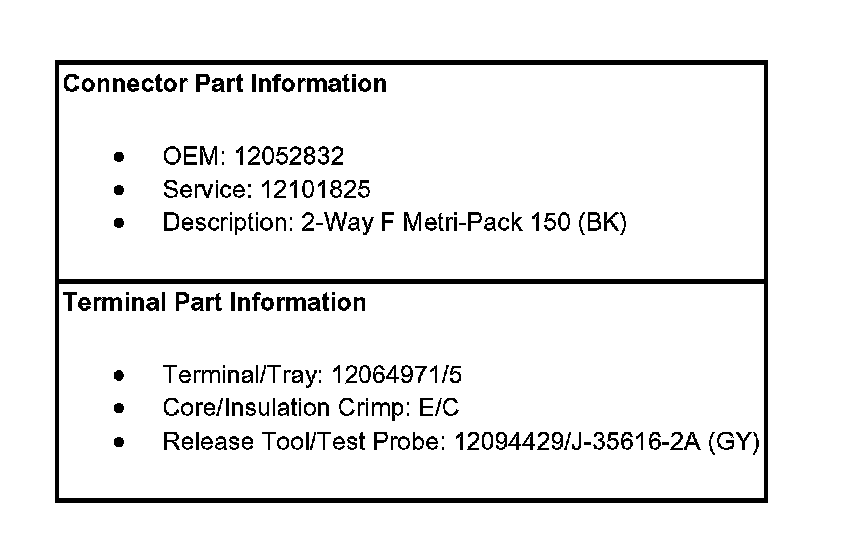

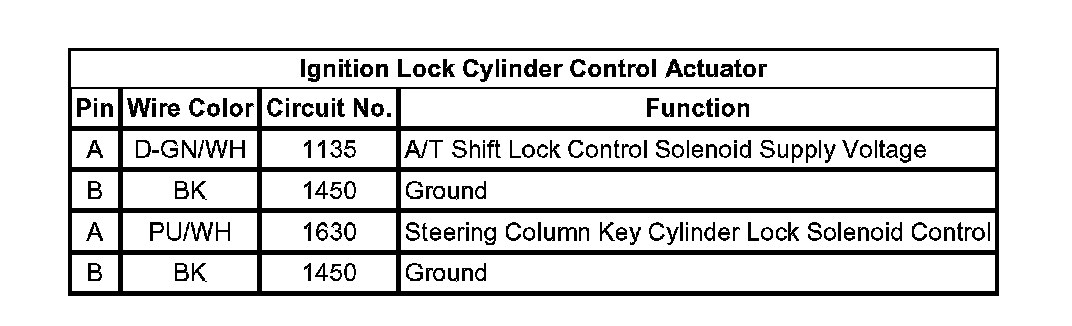

Ignition Lock Cylinder Control Actuator

A/T Shift Lock Control Solenoid:

Ignition Lock Cylinder Control Actuator:
