System Diagram





HVAC Schematics

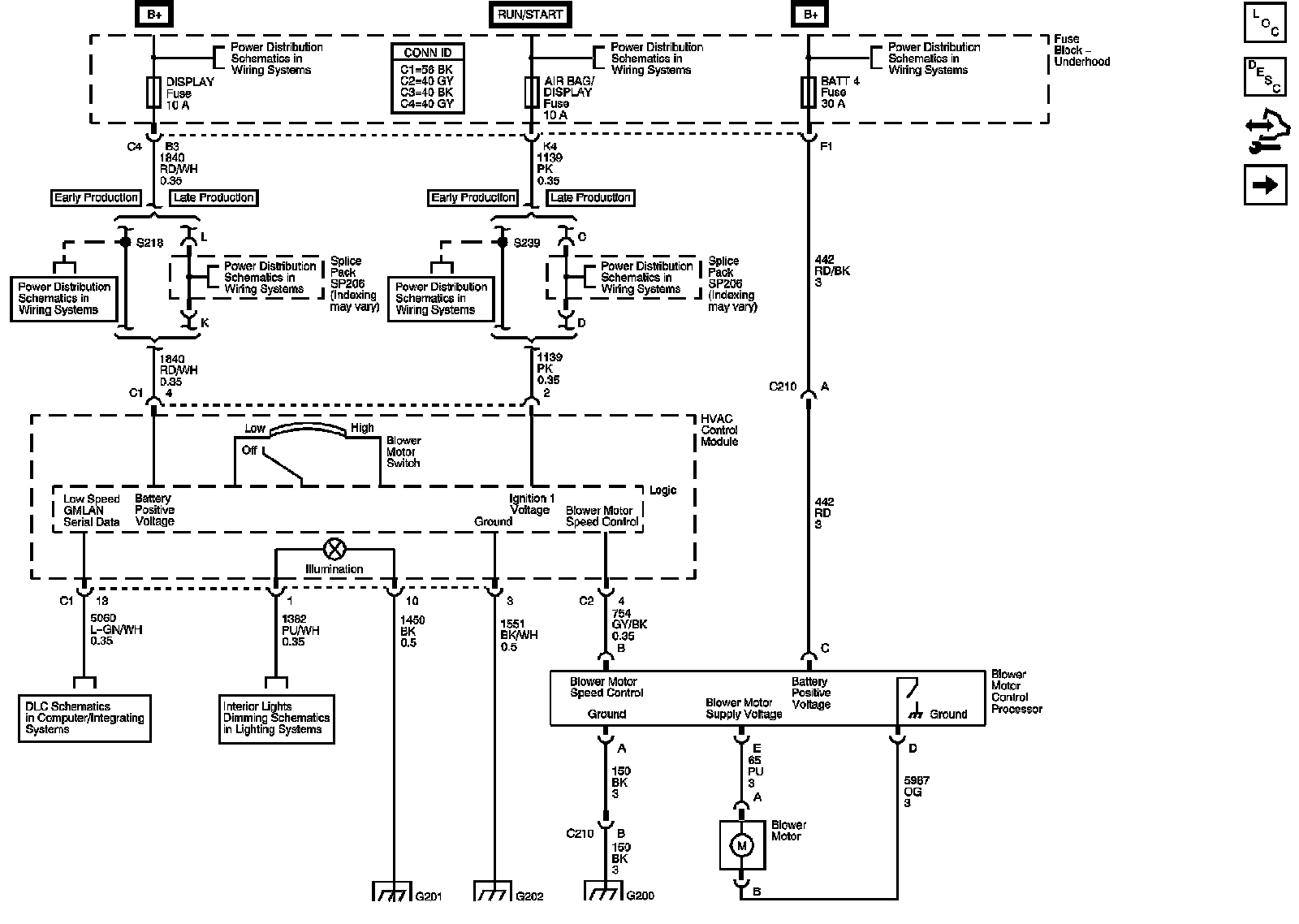

Power, Ground, and Blower Motor Control

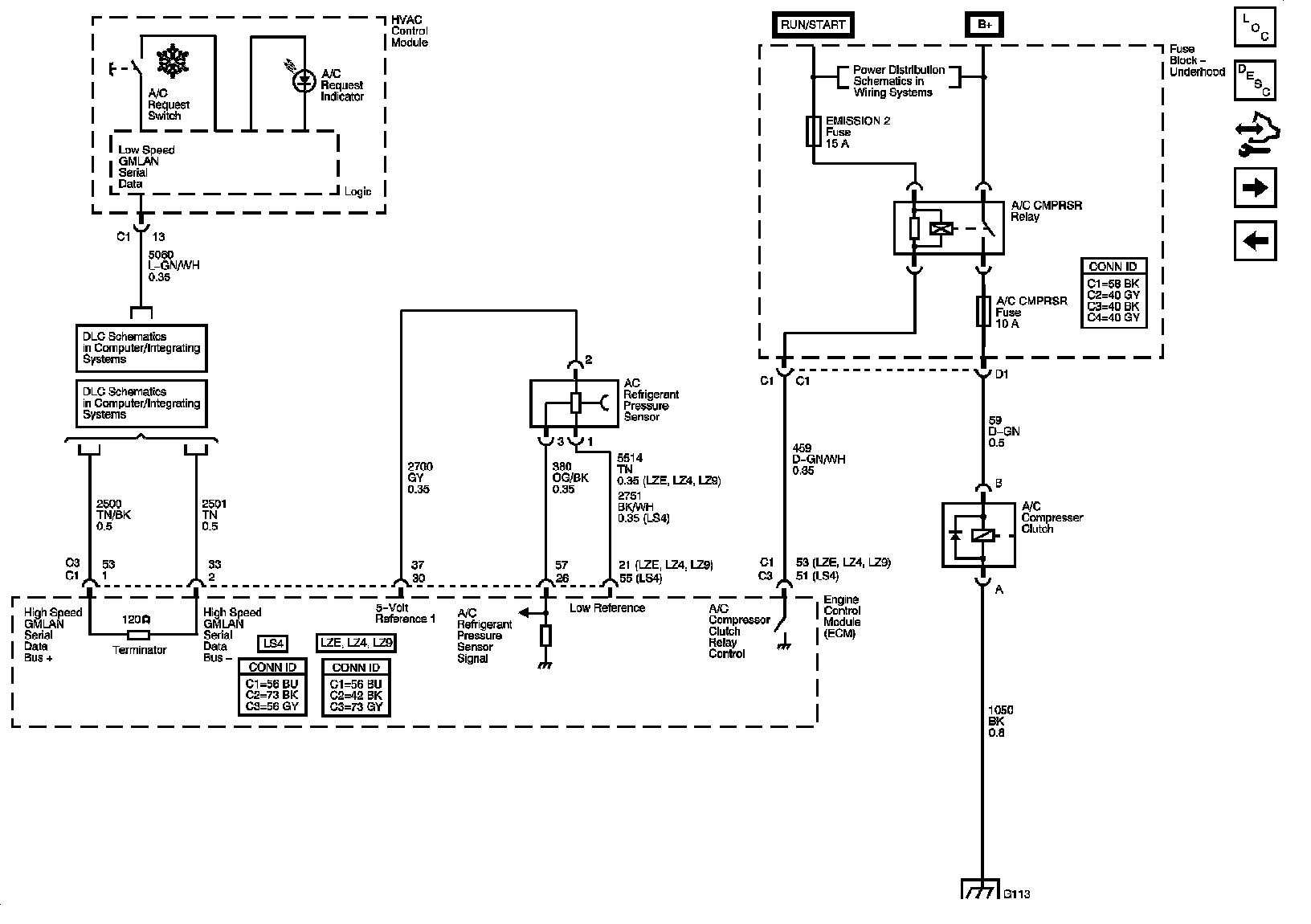

A/C Compressor Controls






Mode and Air Temperature Controls
