Home >> Chevrolet >> 2006 >> Monte Carlo V8-5.3L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Service and Repair

Expansion Block/Orifice Tube: Service and Repair

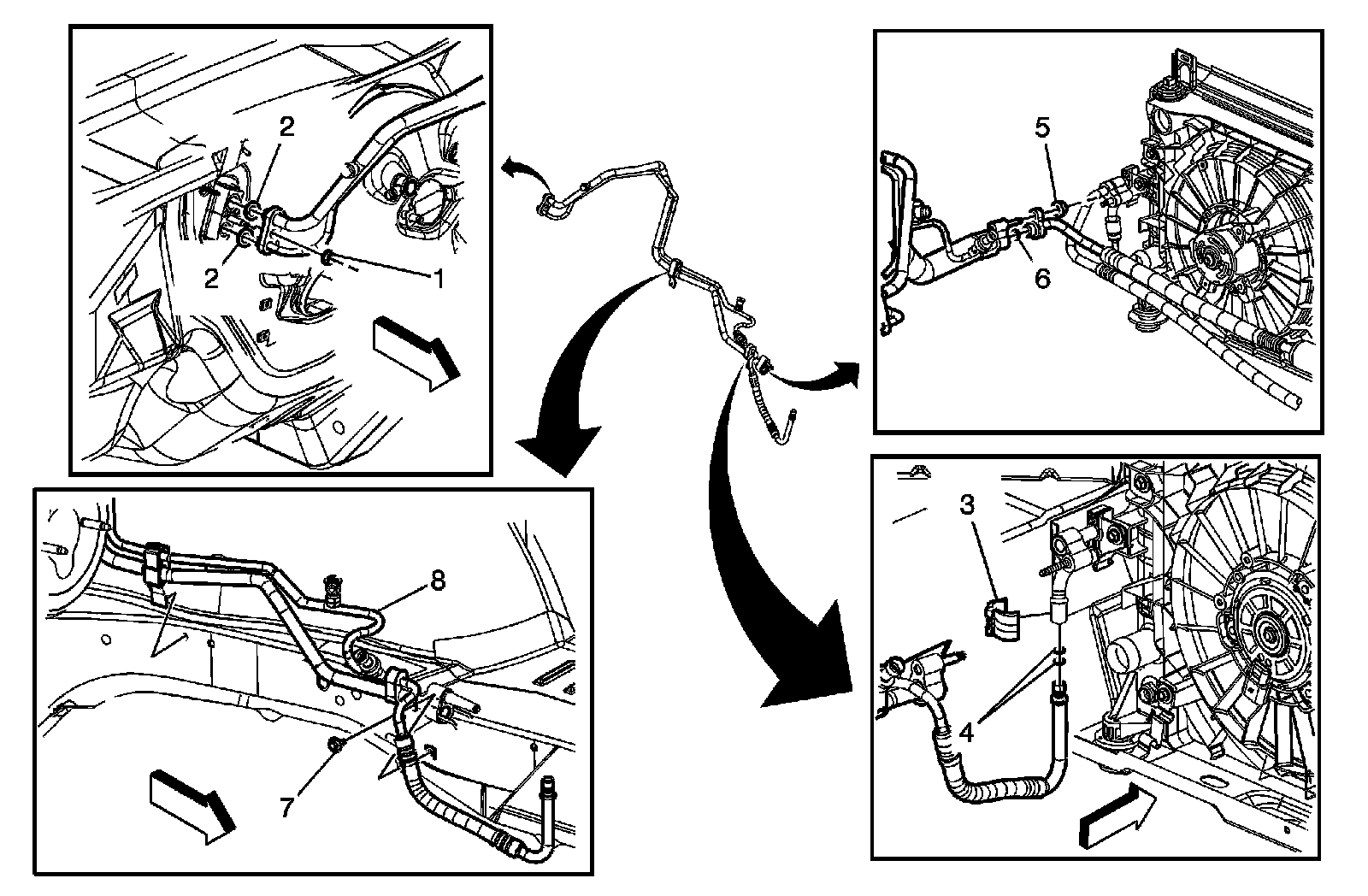

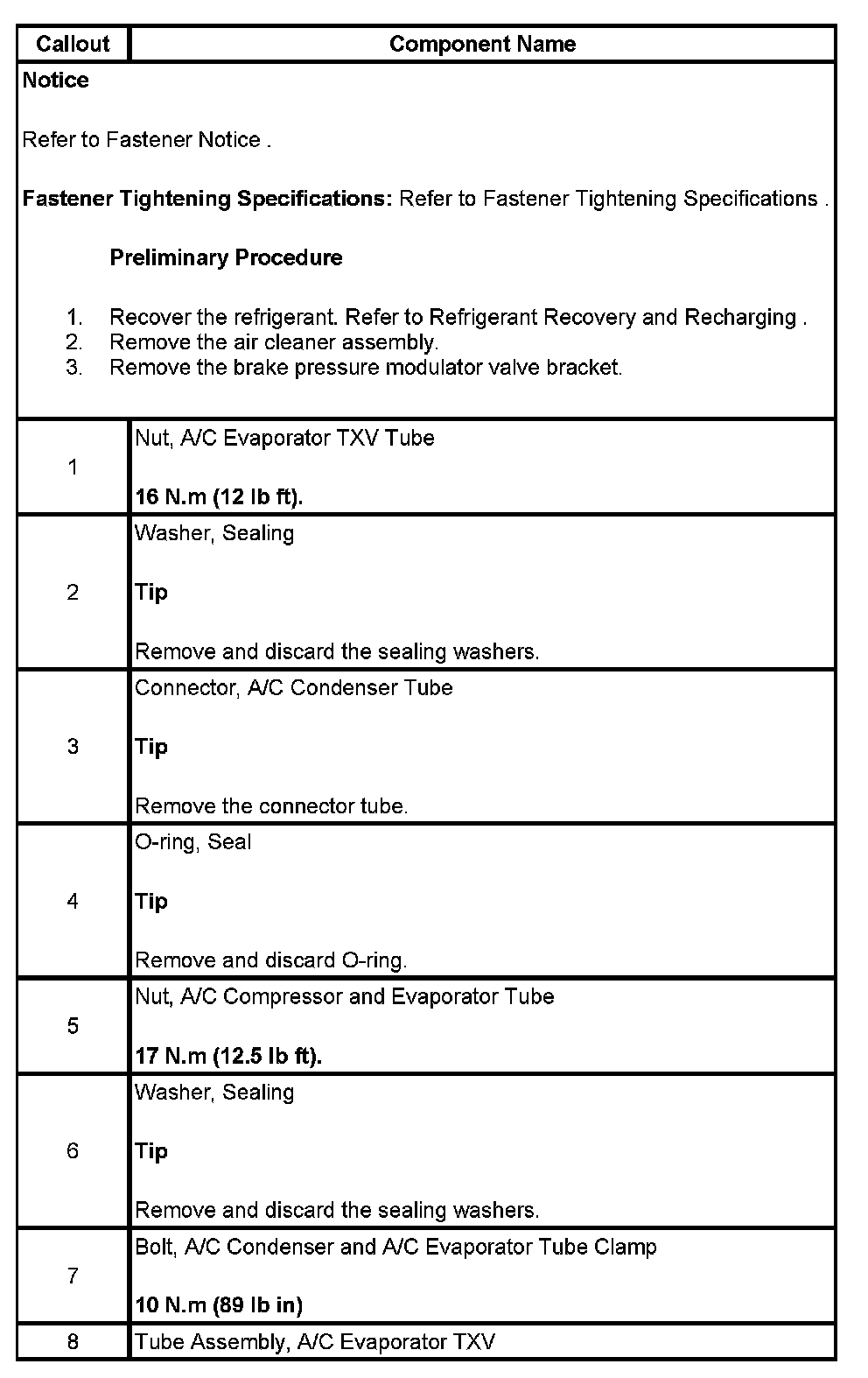

AIR CONDITIONING EVAPORATOR THERMAL EXPANSION VALVE TUBE REPLACEMENT
