Spot Lamp: Diagrams

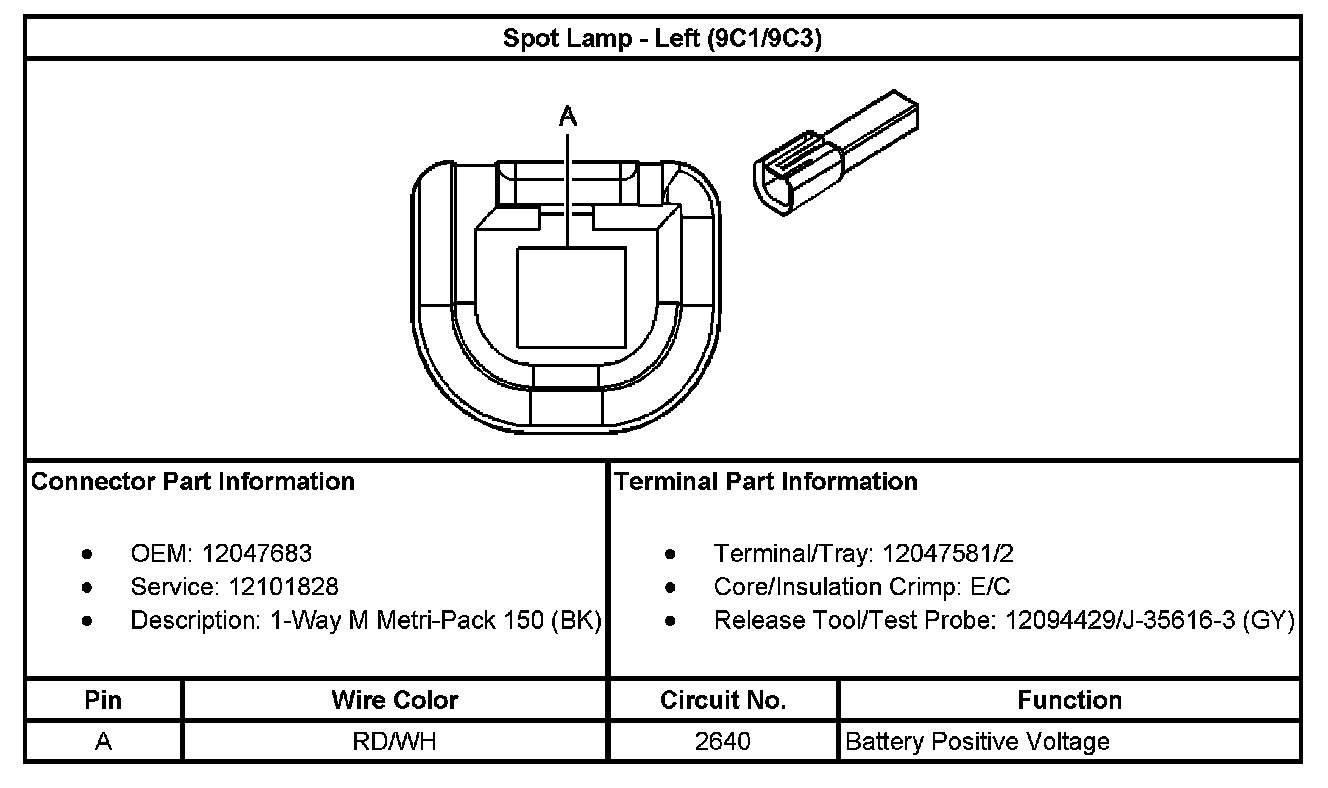

Spot Lamp - Left (With RPO Code 9C1/9C3):

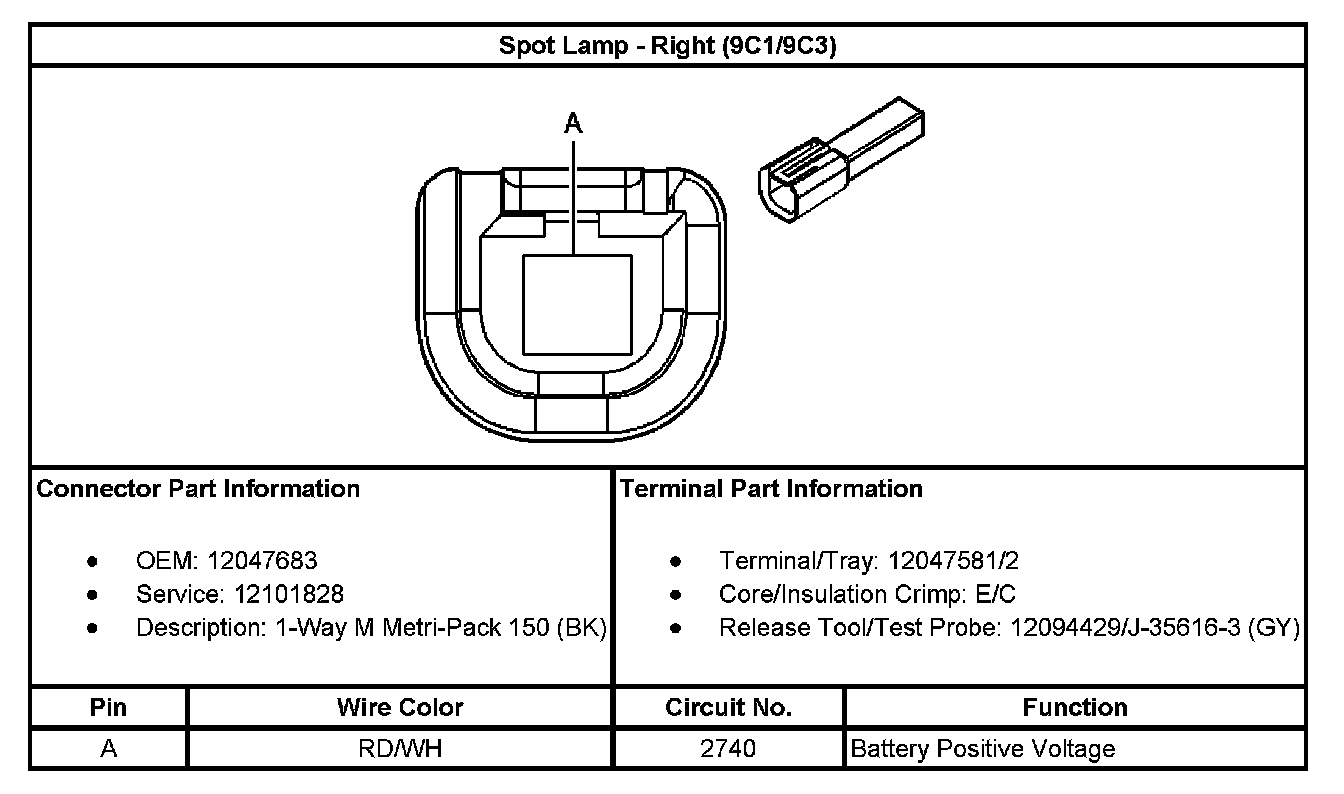

Spot Lamp - Right (With RPO Code 9C1/9C3):
