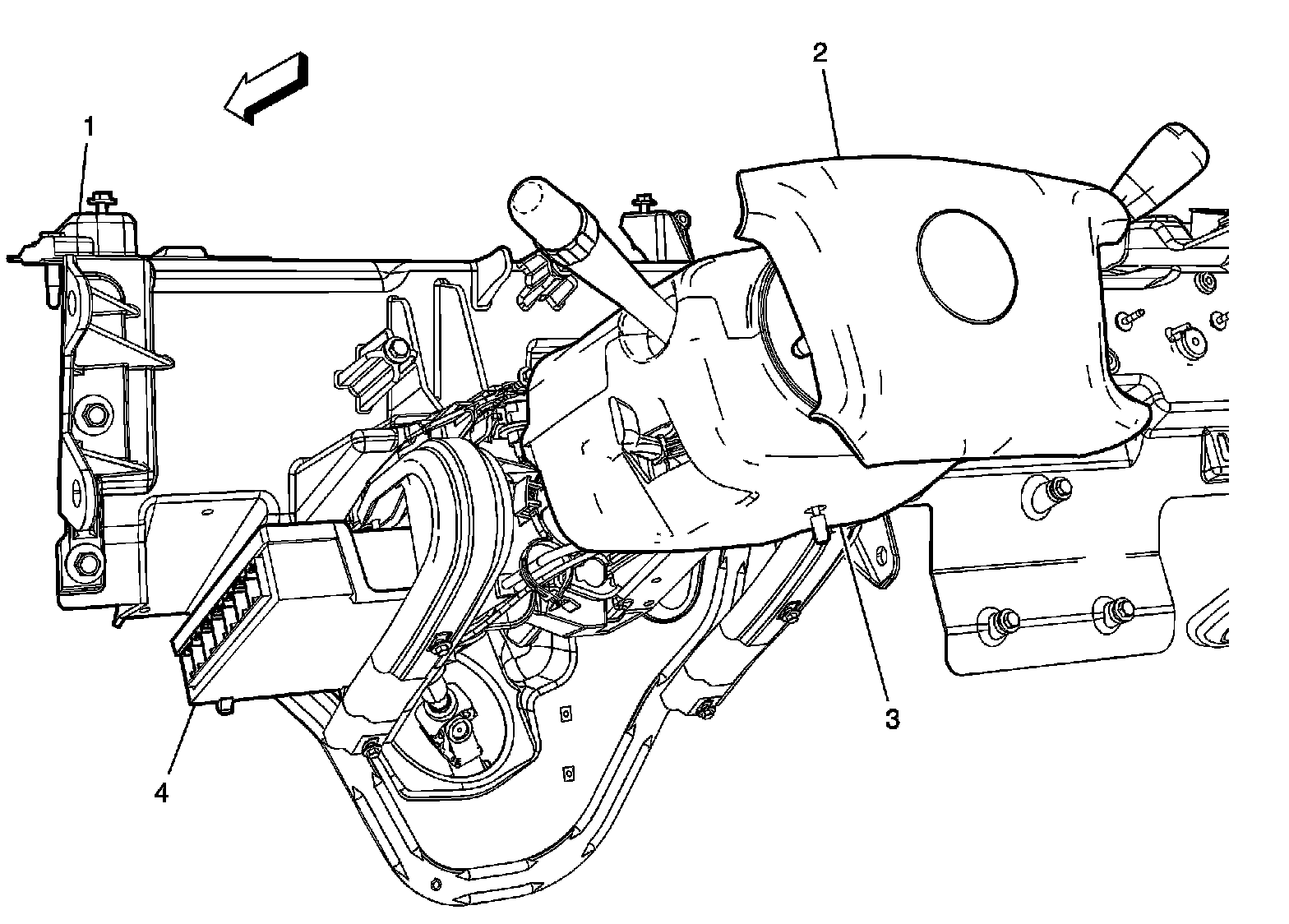

Near the Steering Column








1. I/P Carrier
2. Inflatable Restraint Steering Wheel Module
3. Steering Column
4. Body Control Module (BCM)
