Battery Replacement

BATTERY REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: Do not tip the battery more than 40 degrees during removal.




1. Disconnect the negative battery cable.
2. Remove the right front diagonal brace.

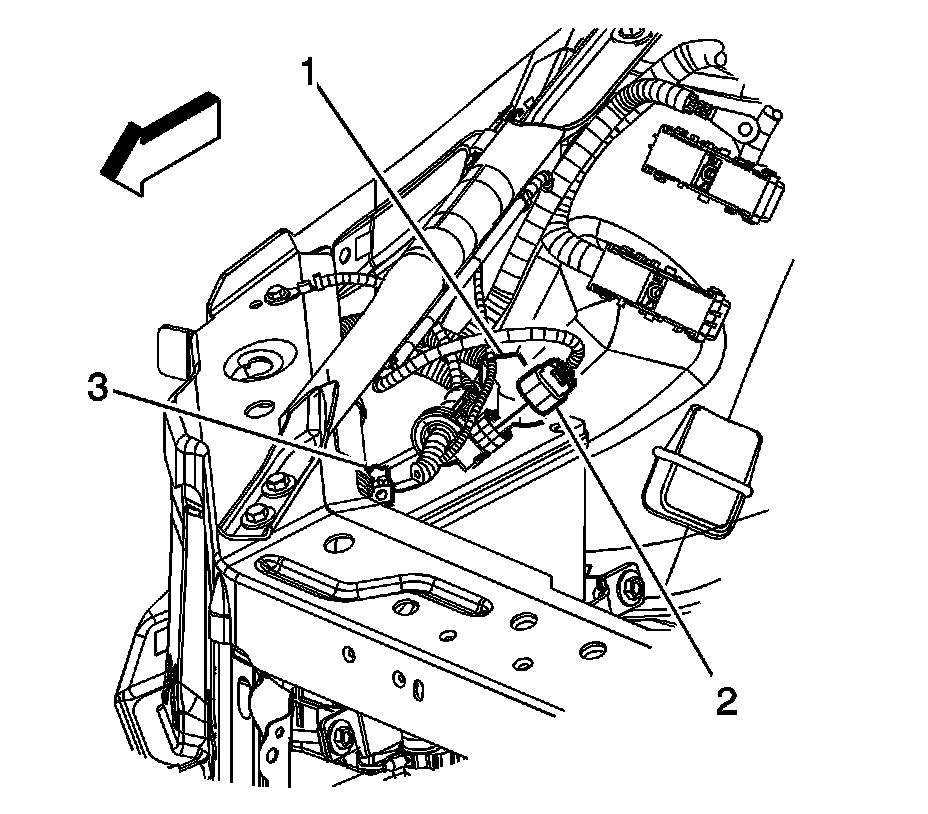

3. Reposition the positive battery cable terminal cover (1).
4. Loosen the positive battery cable terminal nut.
5. Remove the positive battery cable terminal from the battery.




6. Remove the battery retainer bolts (1) and retainer (2).
7. Remove the battery.

INSTALLATION PROCEDURE

IMPORTANT: Do not tip the battery more than 40 degrees during installation.




1. Install the battery.
2. Install the battery retainer (2) and bolts (1).

NOTE: Refer to Fastener Notice.

Tighten the bolts to 18 N.m (13 lb ft).




3. Install the positive battery cable terminal to the battery.
4. Tighten the positive battery cable terminal nut.

Tighten the nut to 15 N.m (11 lb ft).

5. Position the positive battery cable terminal cover (2).
6. Install the right front diagonal brace.
7. Connect the negative battery cable.
