Keyless Entry Receiver: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Console Replacement - Front Floor Service and Repair in Instrument Panel, Gages and Console.

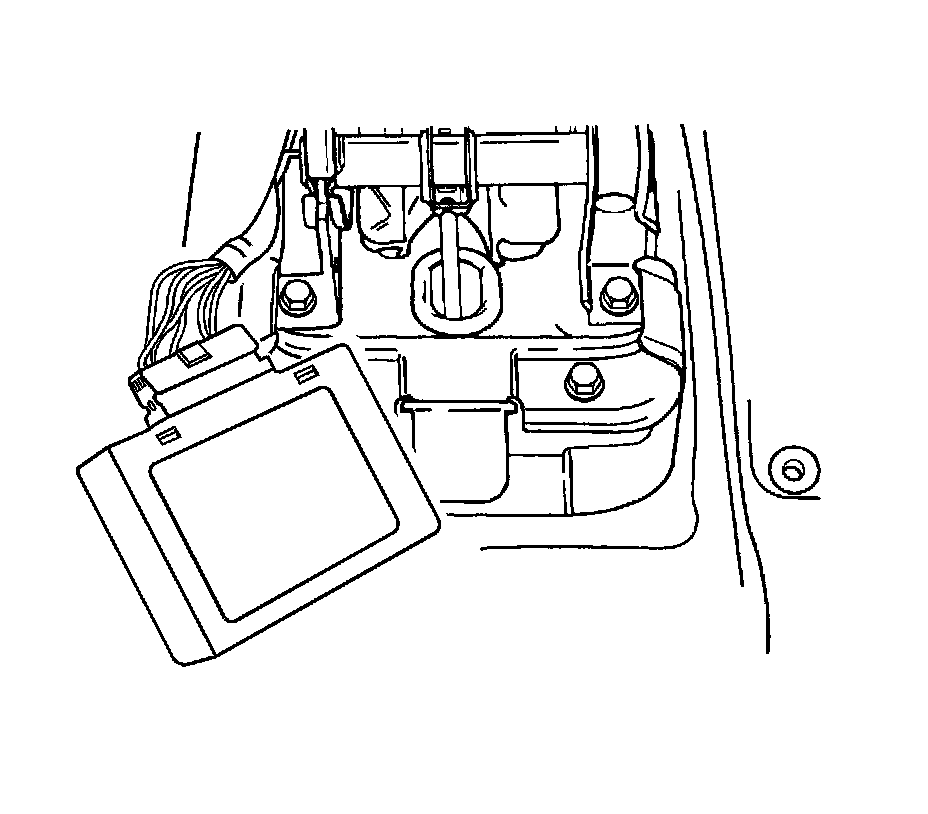

3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver away from the mounting bracket.

Installation Procedure




1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.
3. Install the floor console. Refer to Console Replacement - Front Floor Service and Repair in Instrument Panel, Gages and Console.
4. Connect the negative battery cable.
