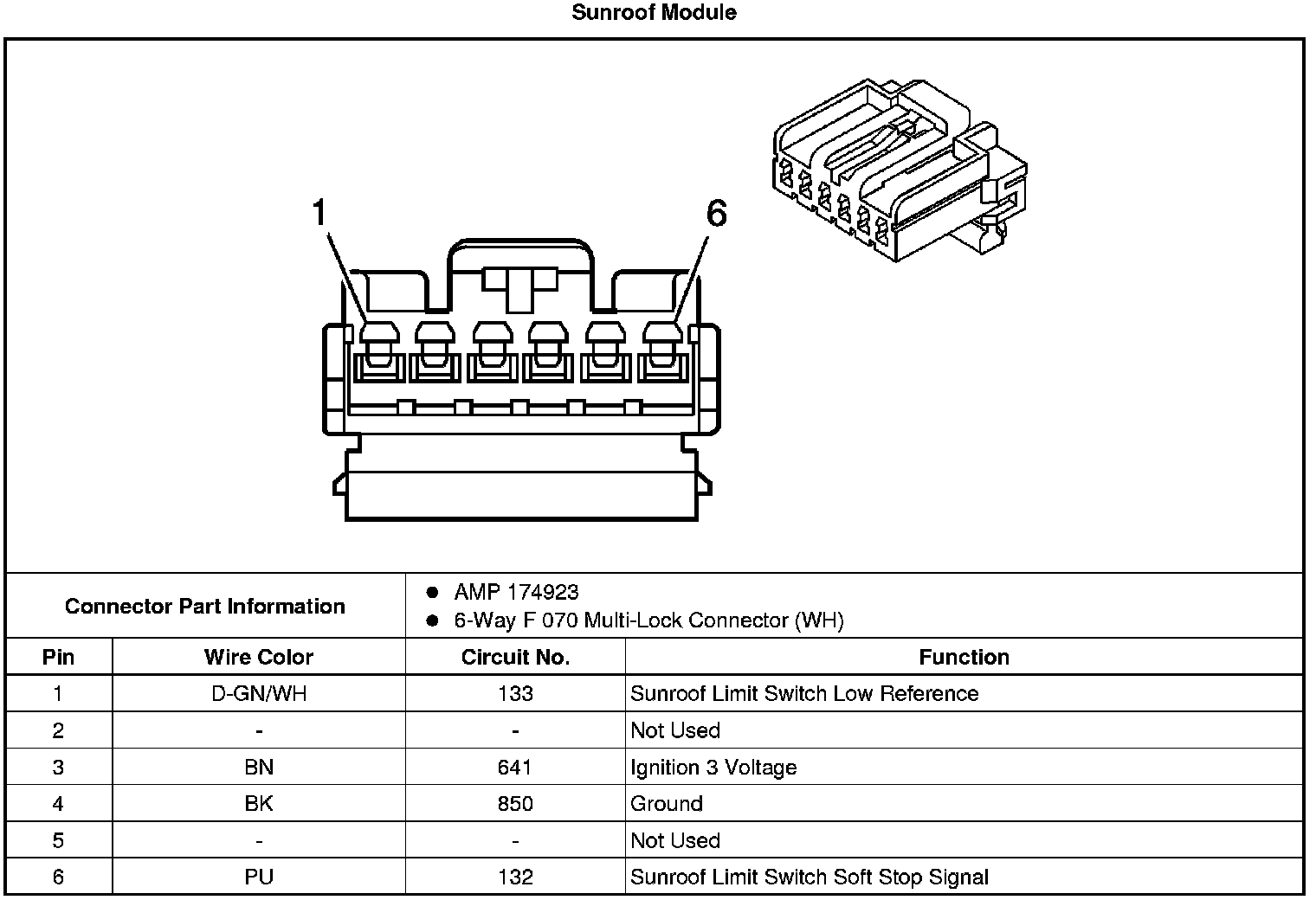

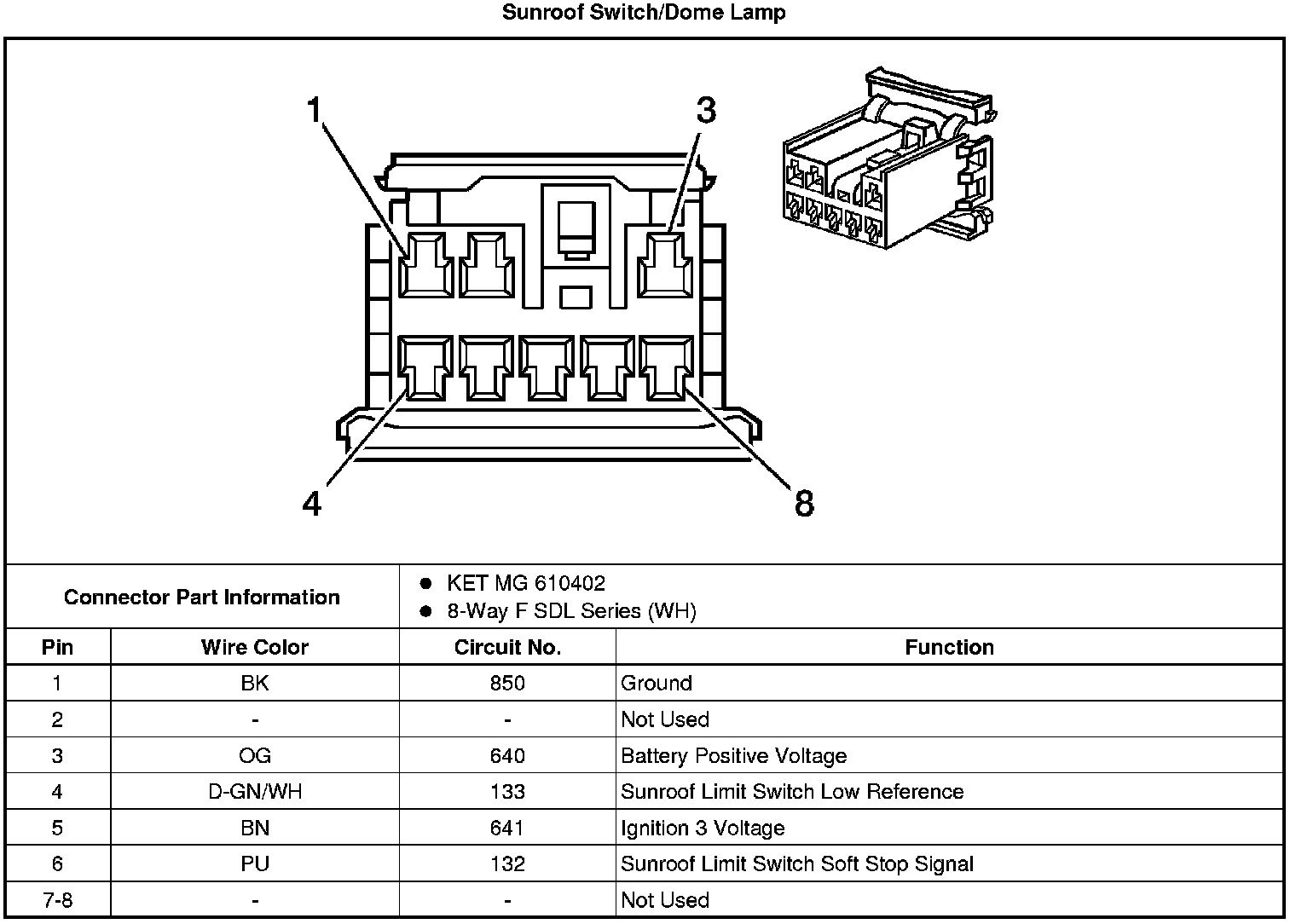

Power Roof Systems Connector End Views
Power Roof Systems Connector End Views
Power Roof Systems Connector End Views
