Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

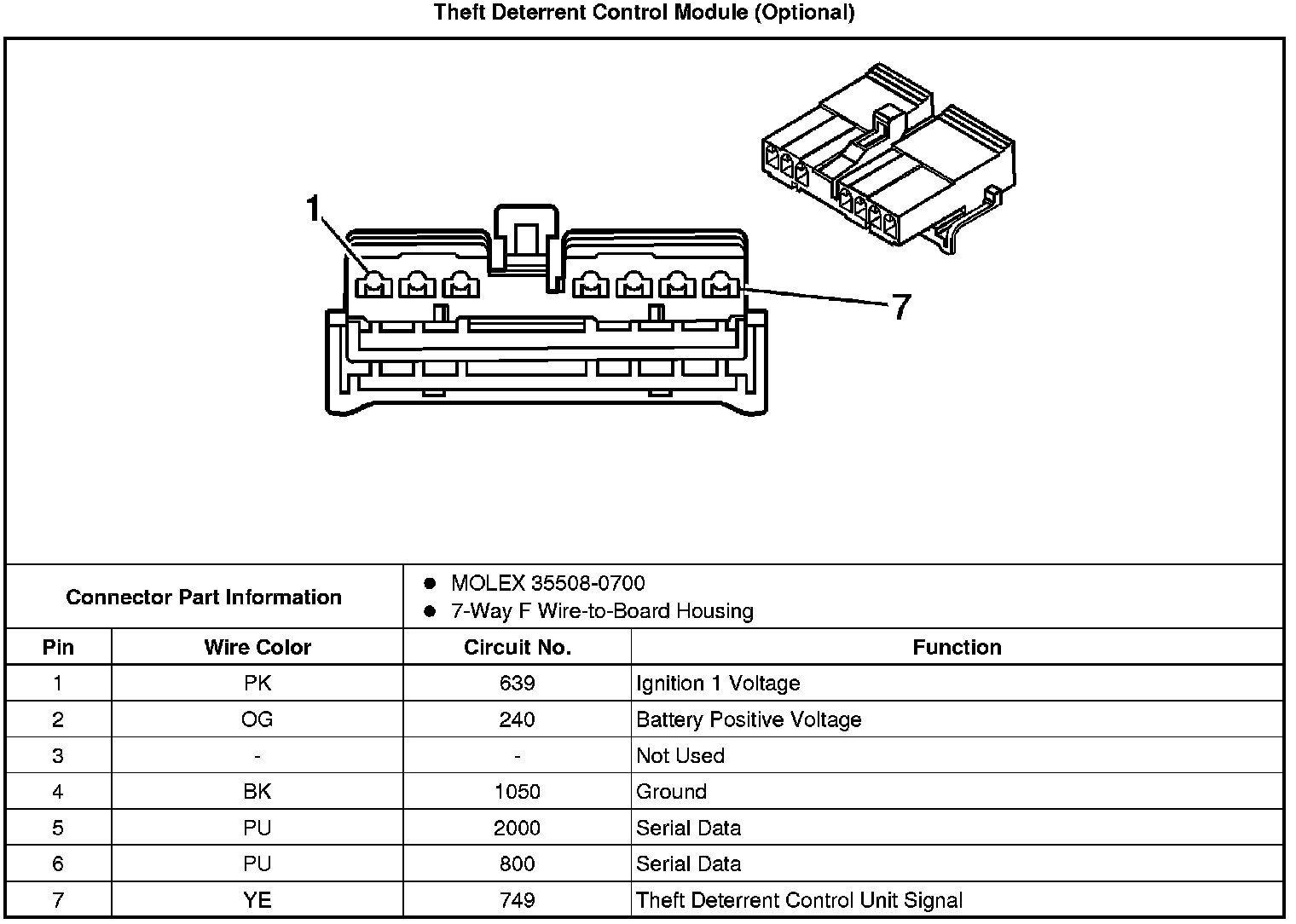

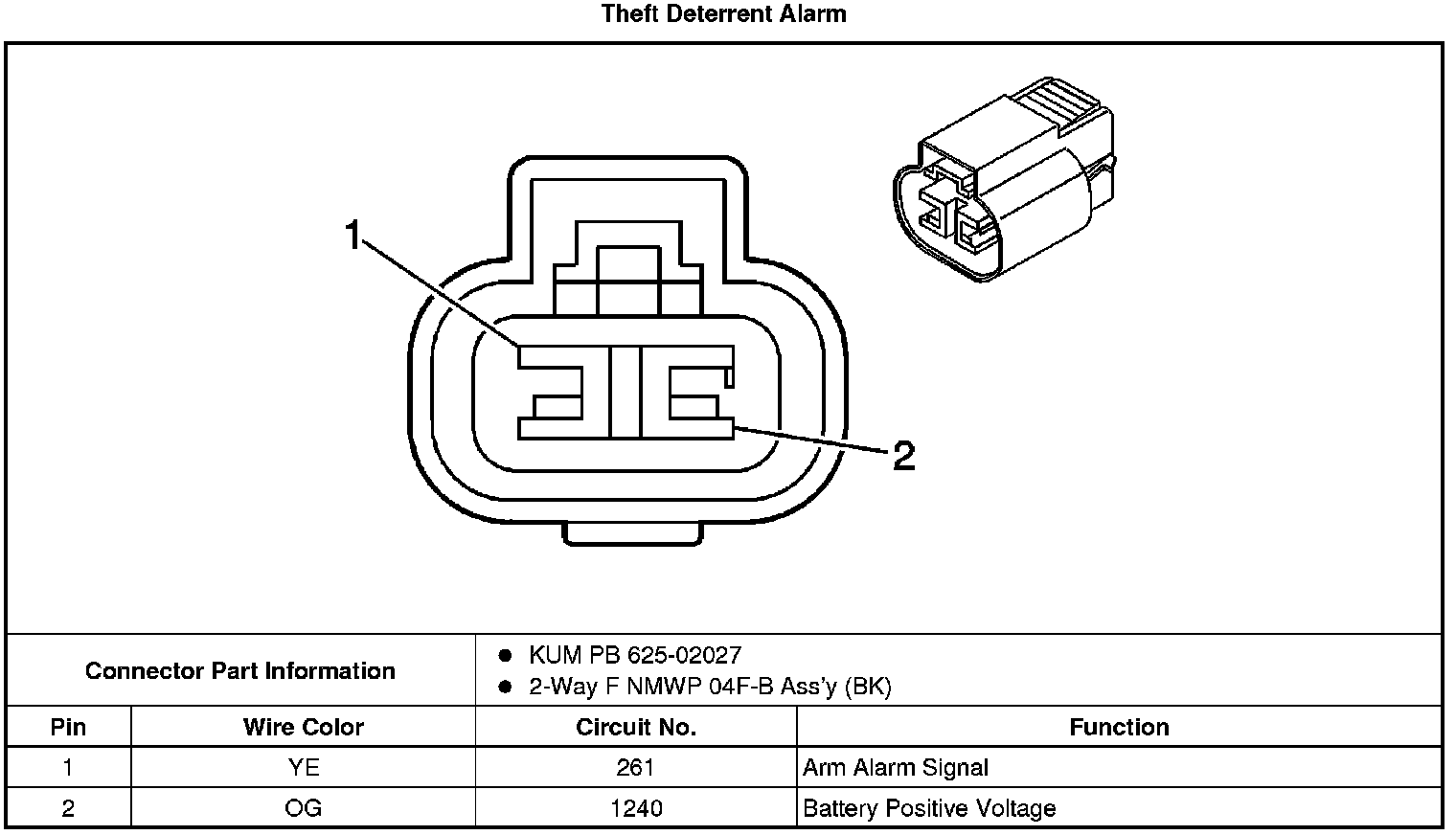

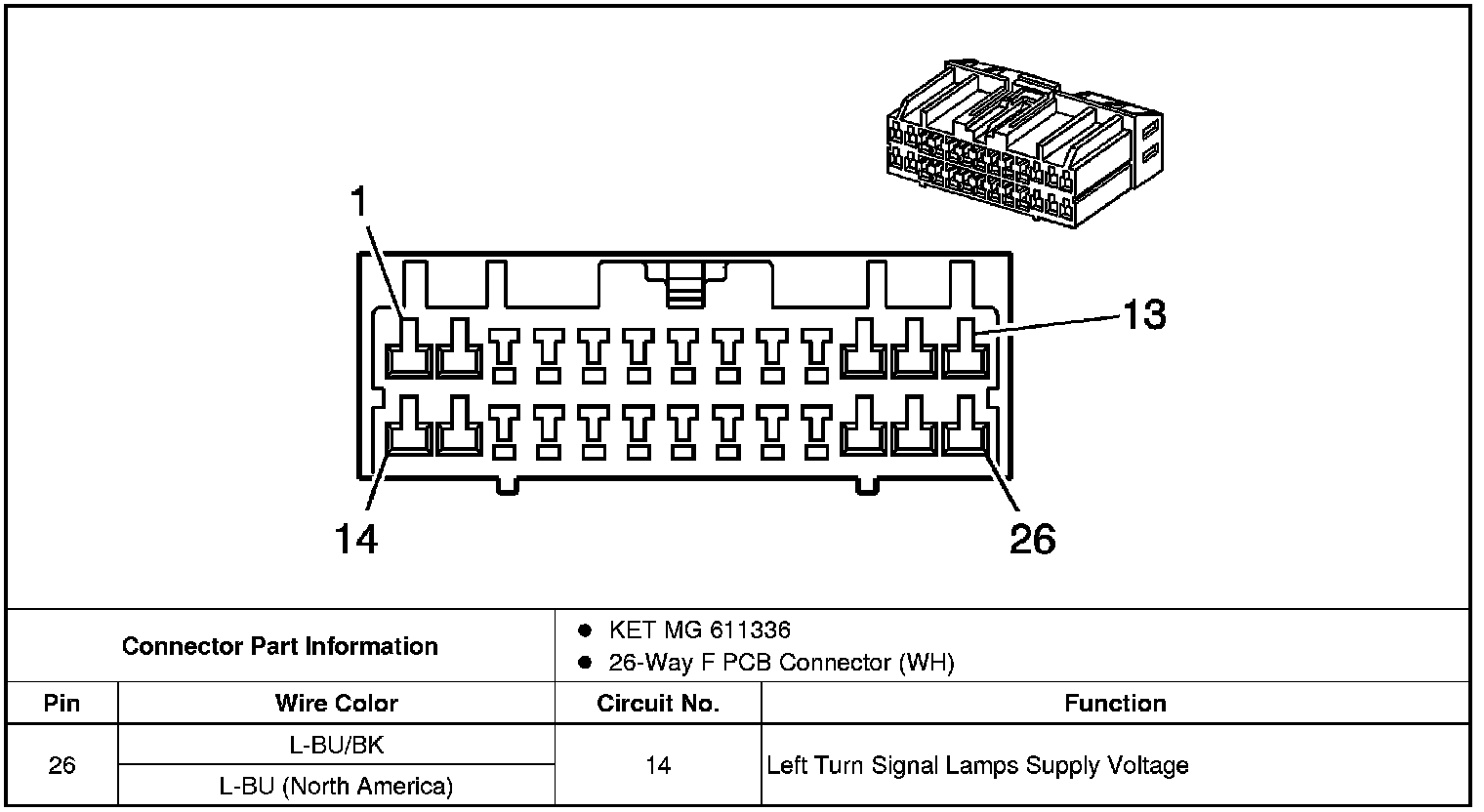

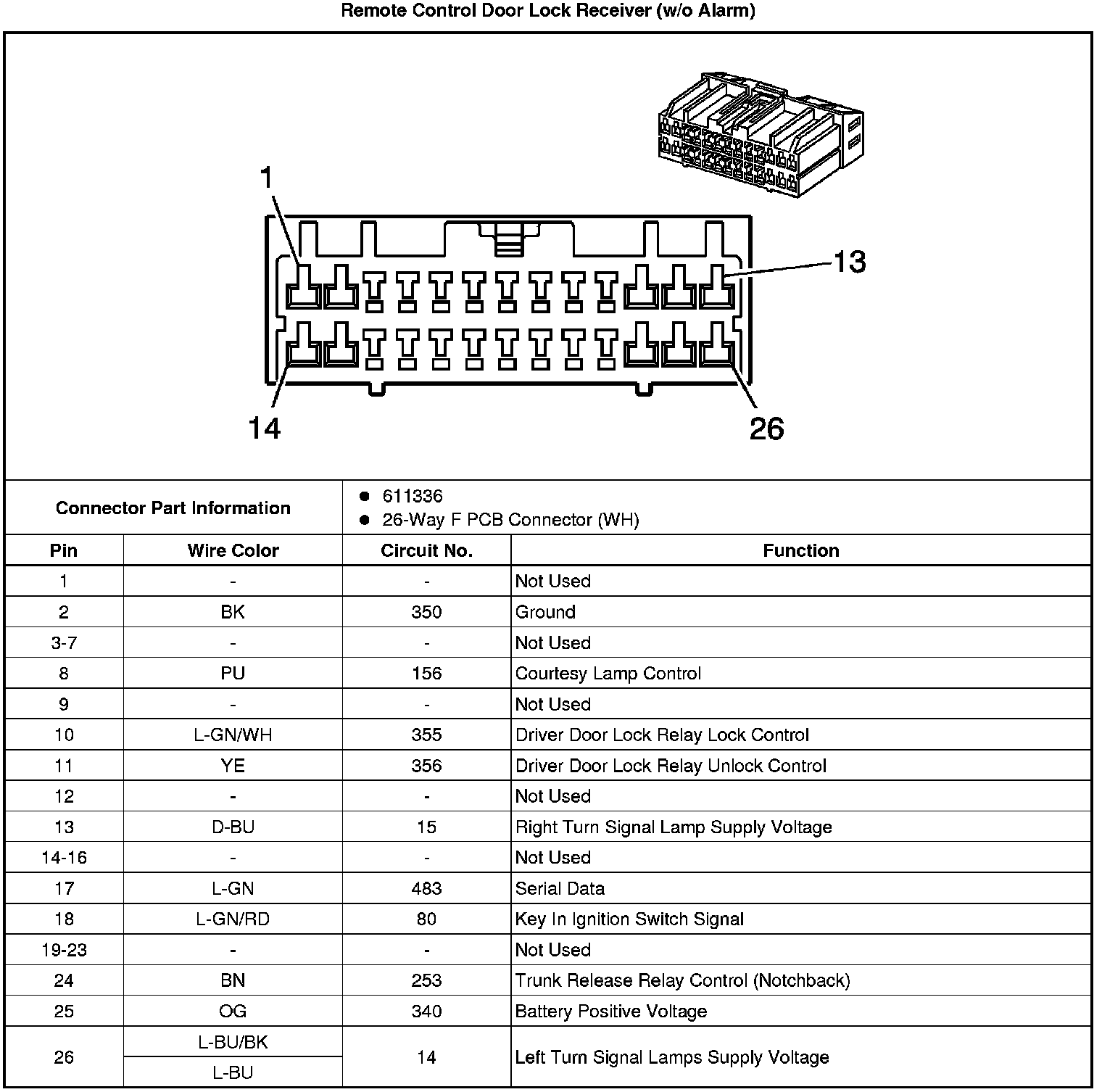

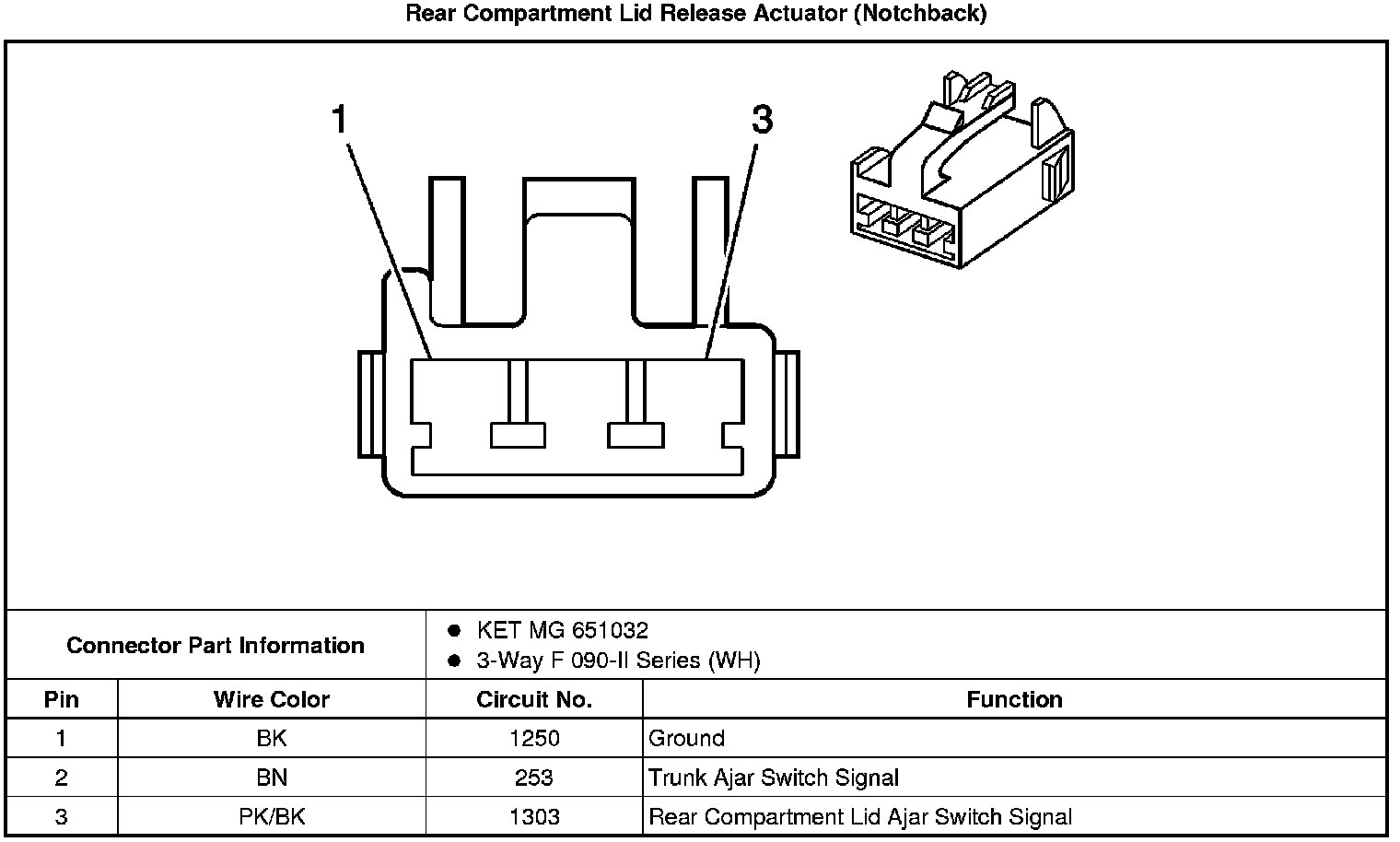

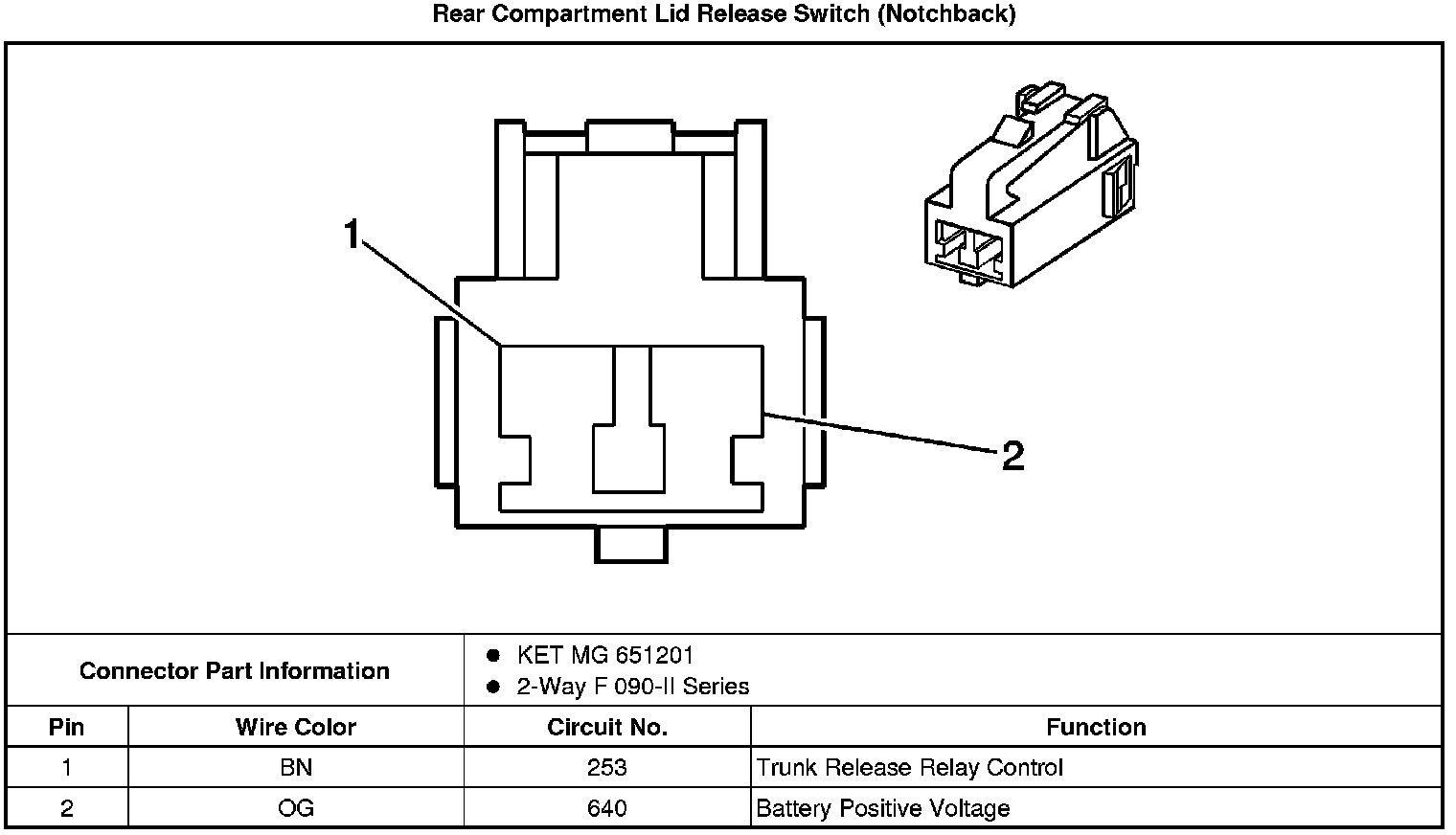

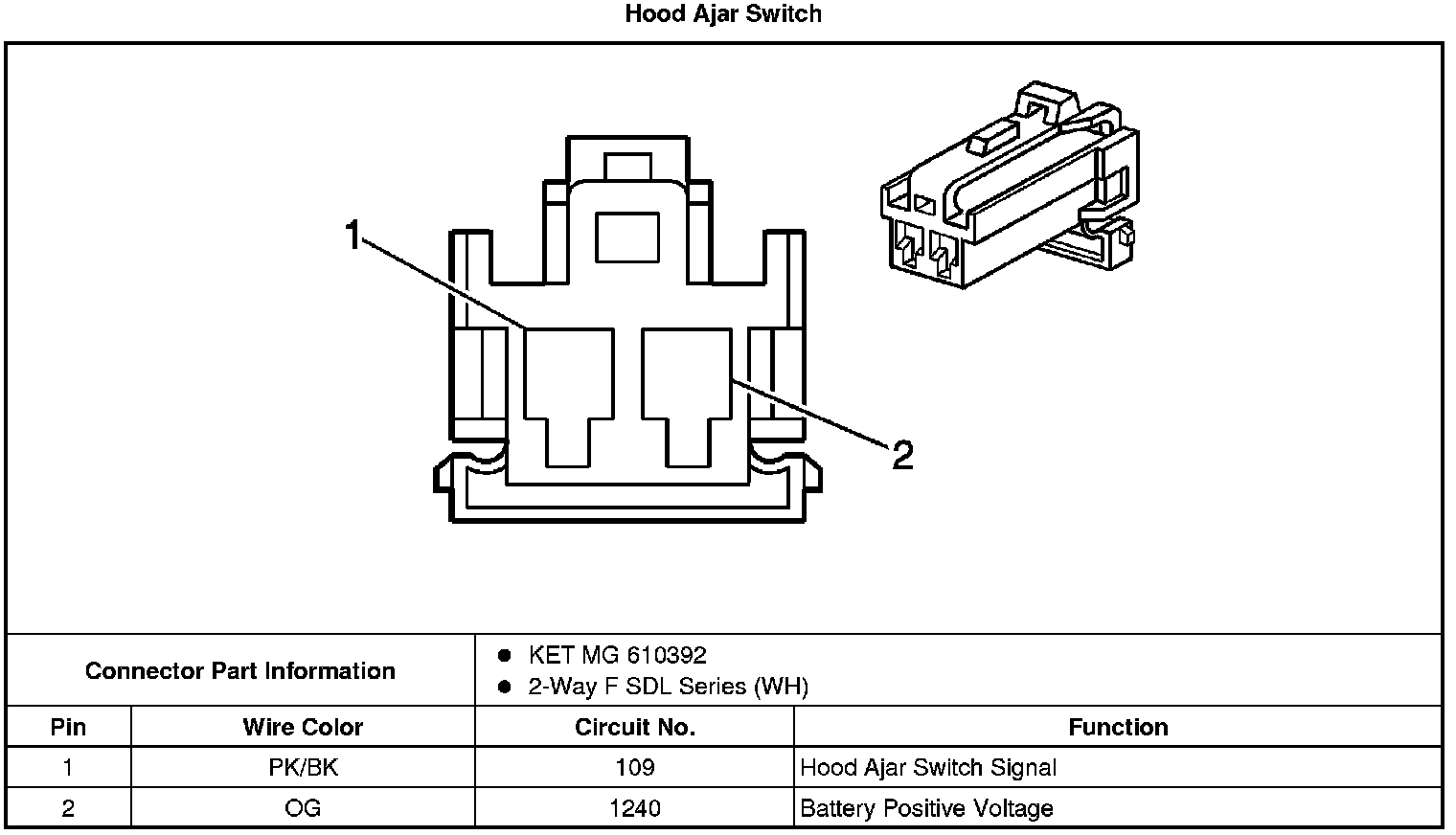

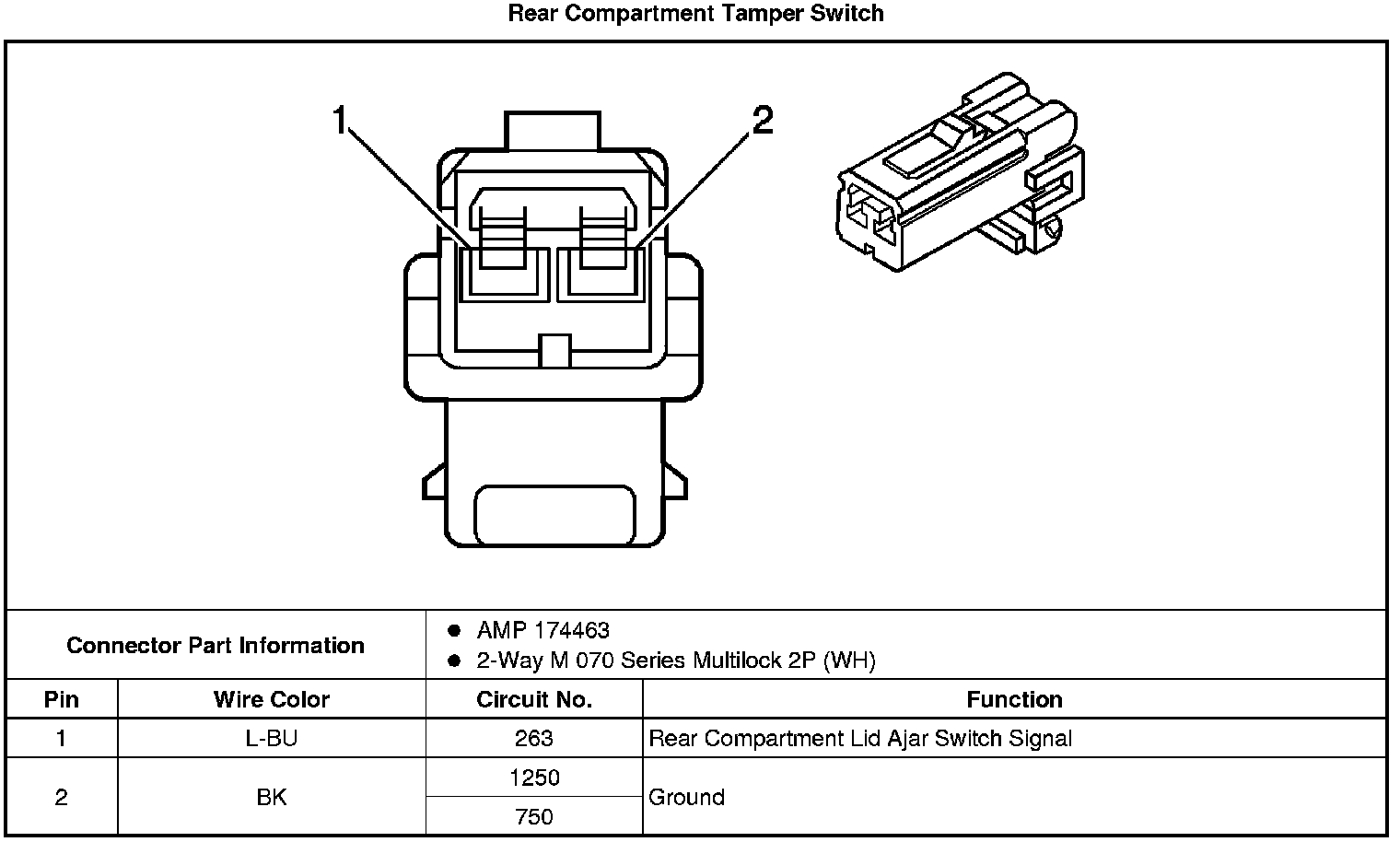

Theft Deterrent System Connector End Views
