Antitheft and Alarm Systems
Antitheft and Alarm Systems
Theft Deterrent System Schematics
Remote Control

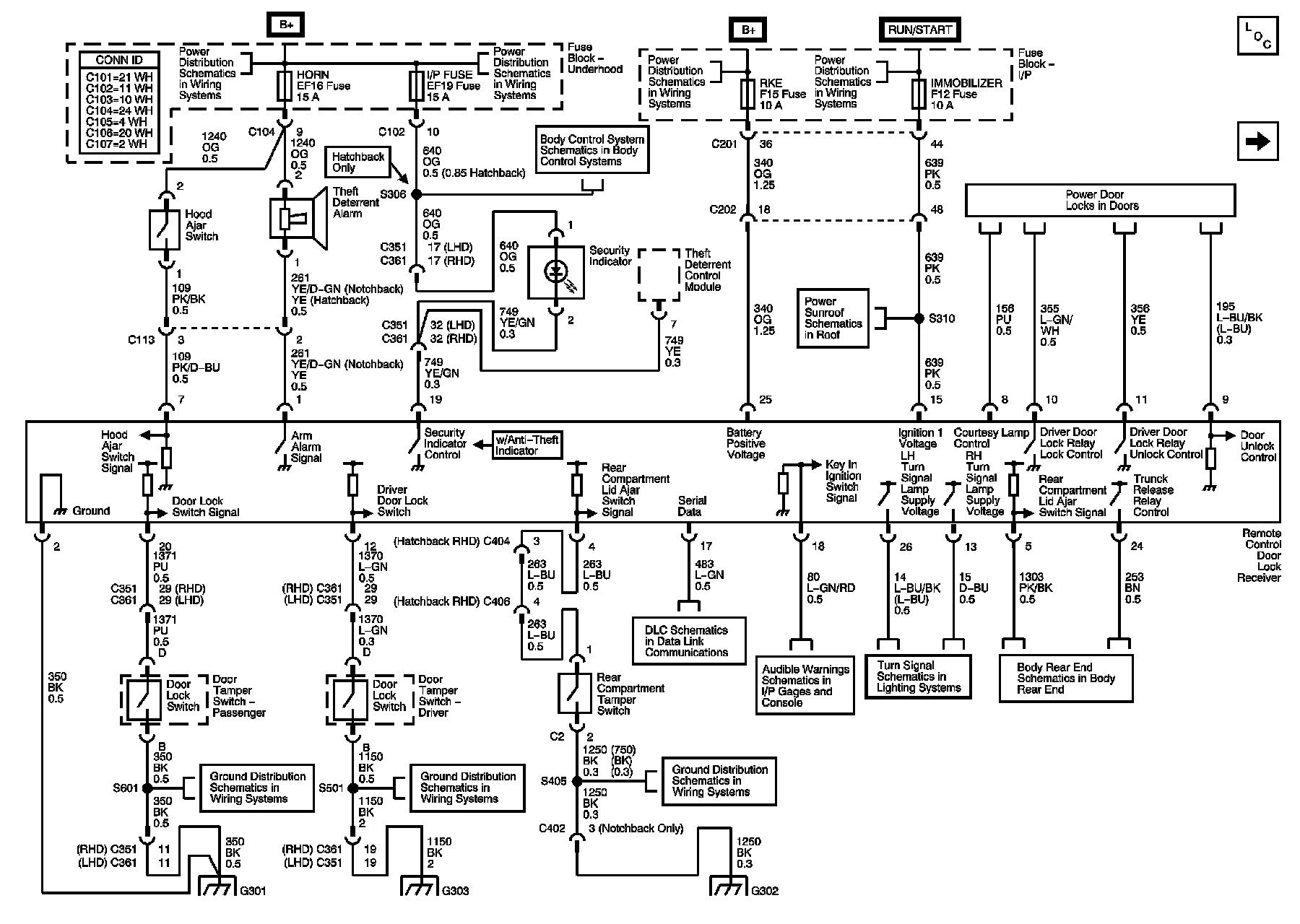

Door LK Receiver

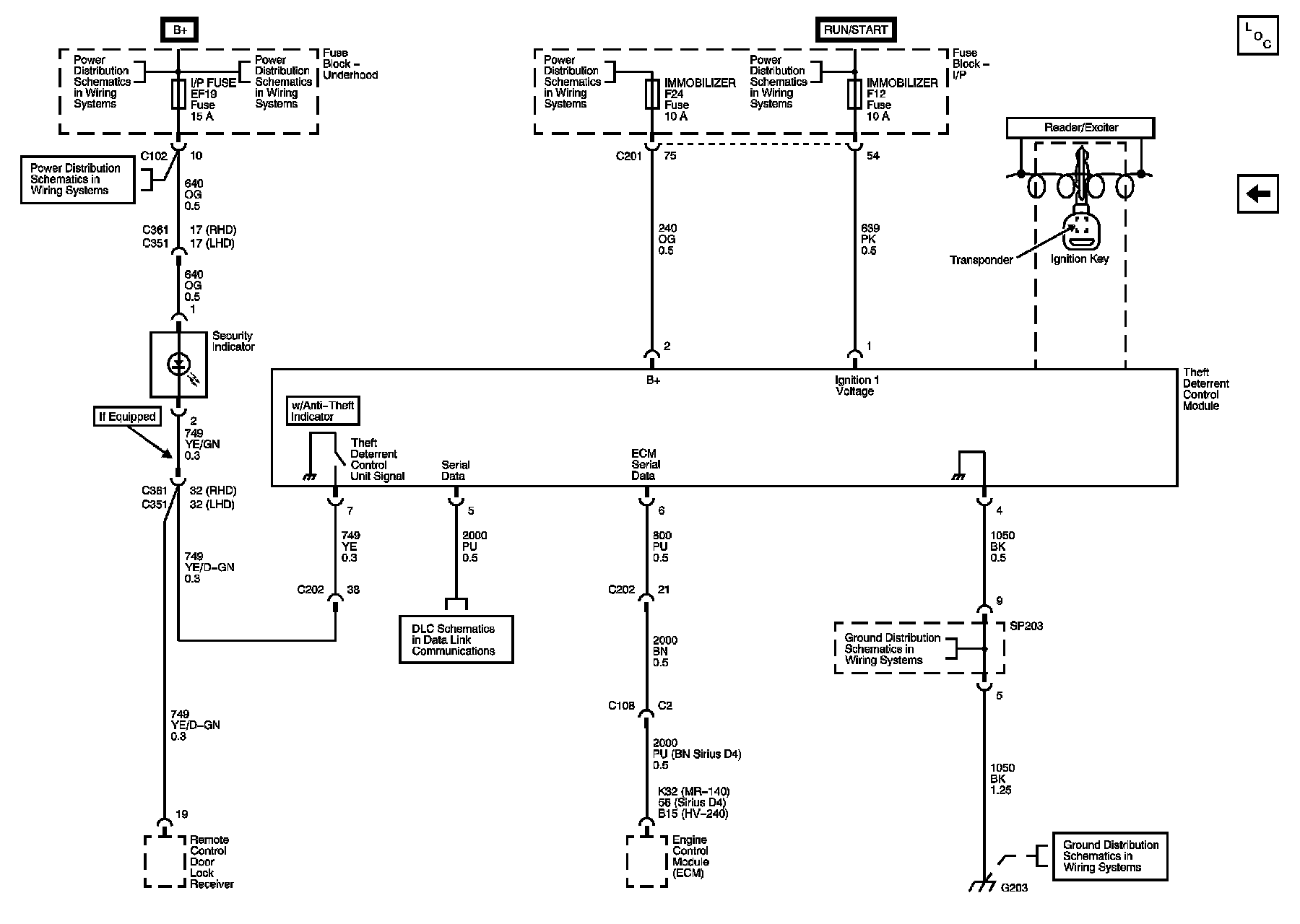

Theft Deterrent Control Module
