Wiper and Washer Systems




Wiper/Washer System Schematics

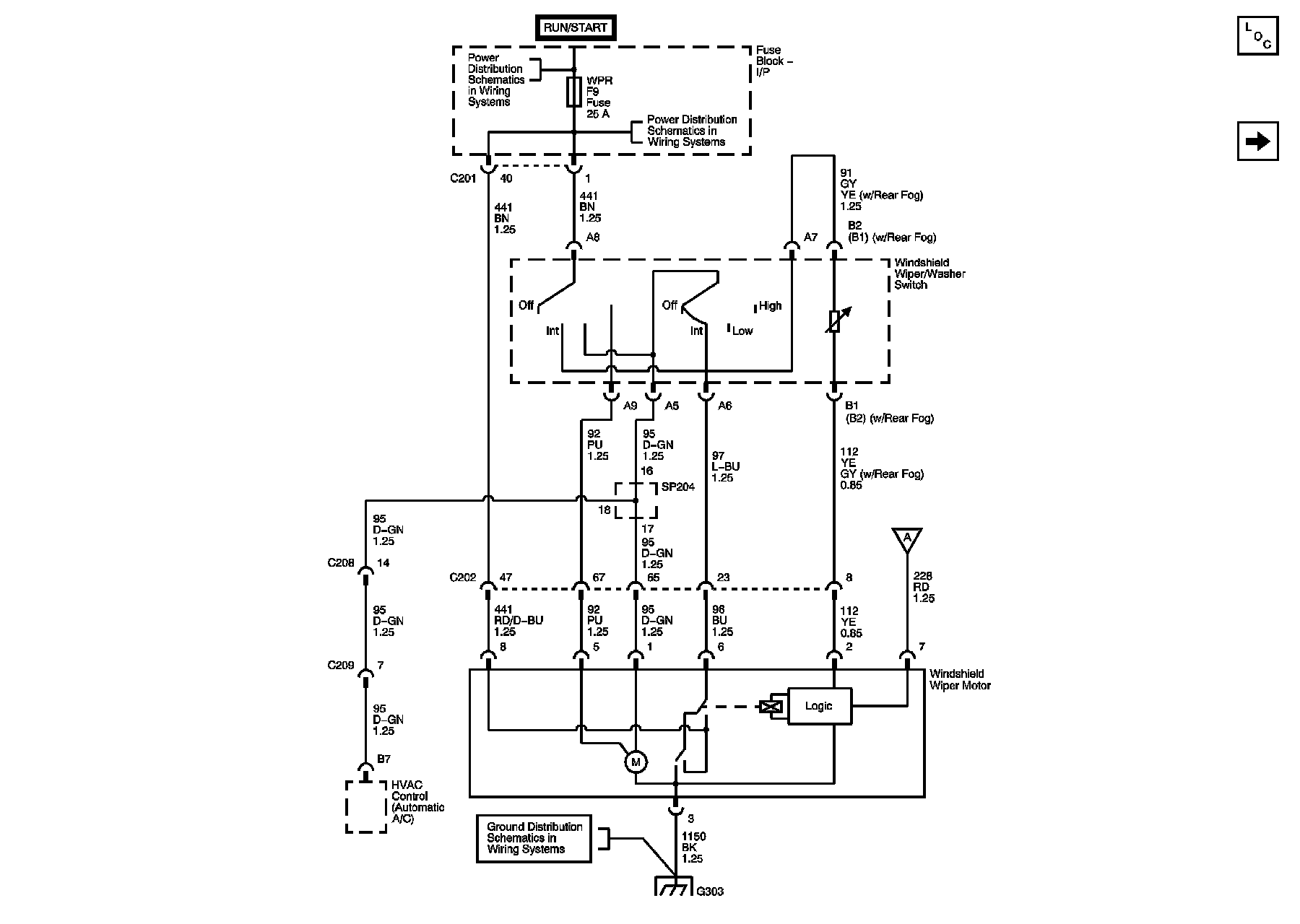

Front Wipers - w/o Rain Sensor

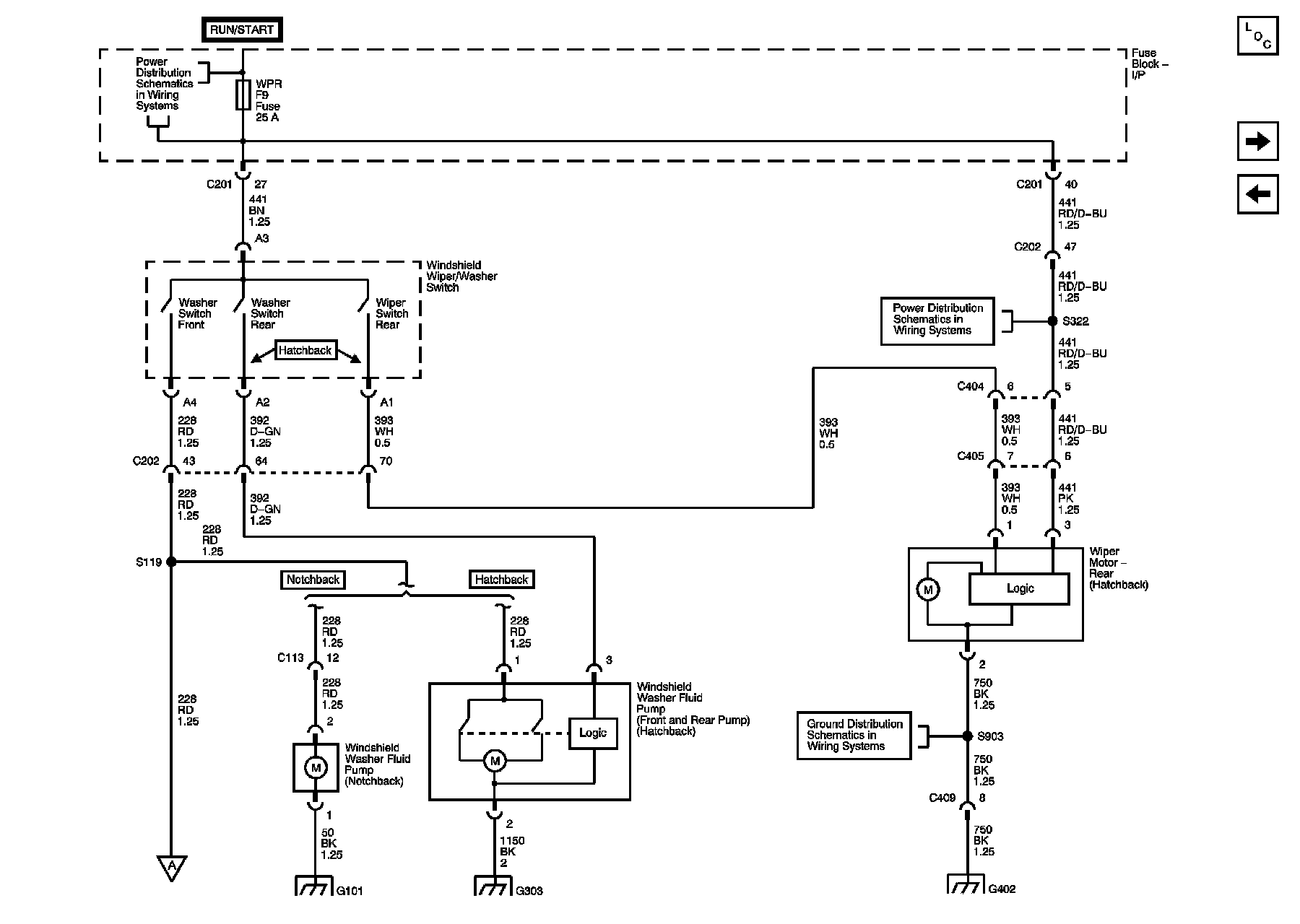

Front and Rear Washers/Rear Wiper

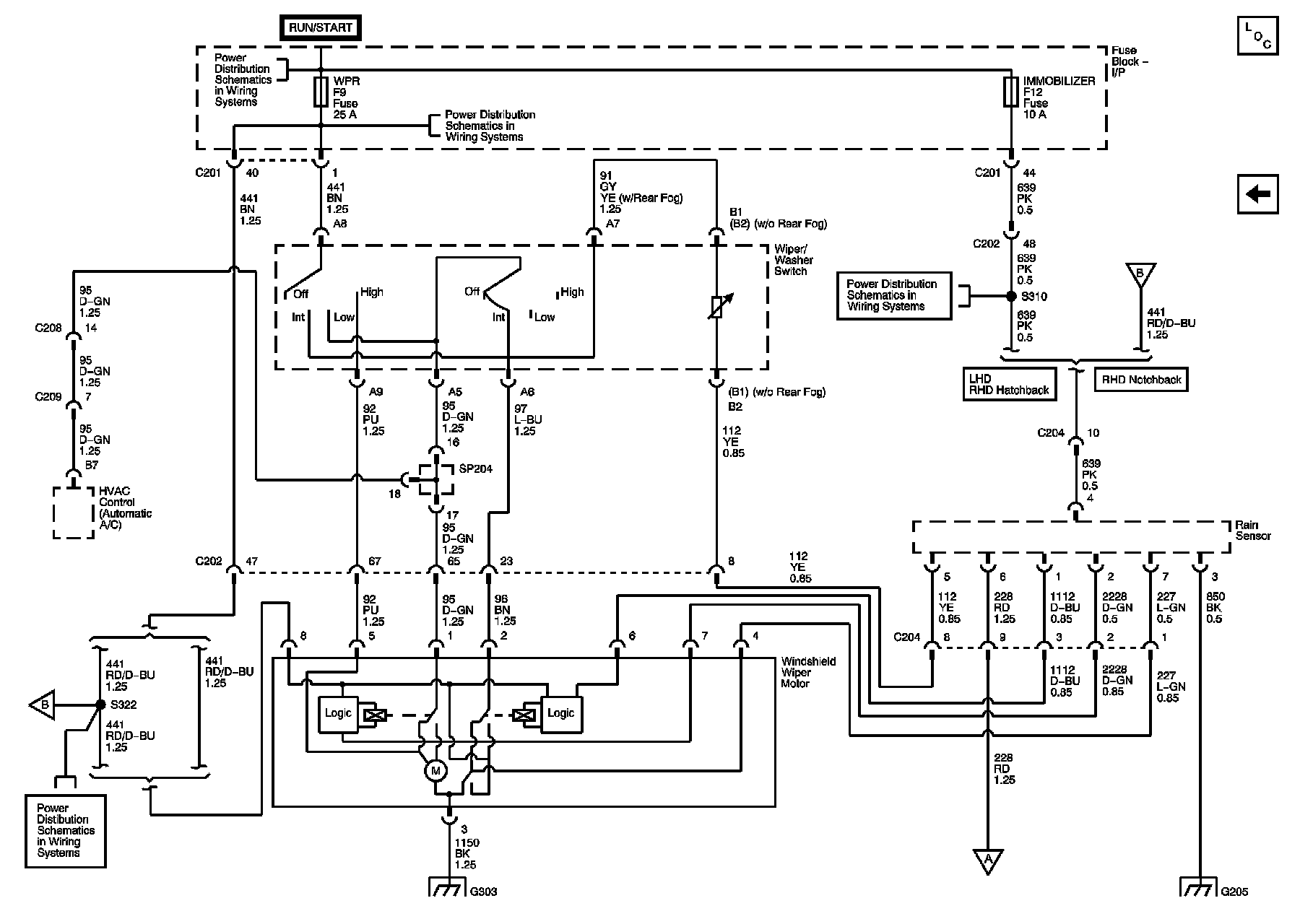

Front Wipers - w/Rain Sensor
