Front Door Window Regulator: Service and Repair

Window Regulator Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the door glass. Refer to Window Replacement - Front Door Service and Repair or to Window Replacement - Rear Door Service and Repair.
3. Disconnect the electrical connector.

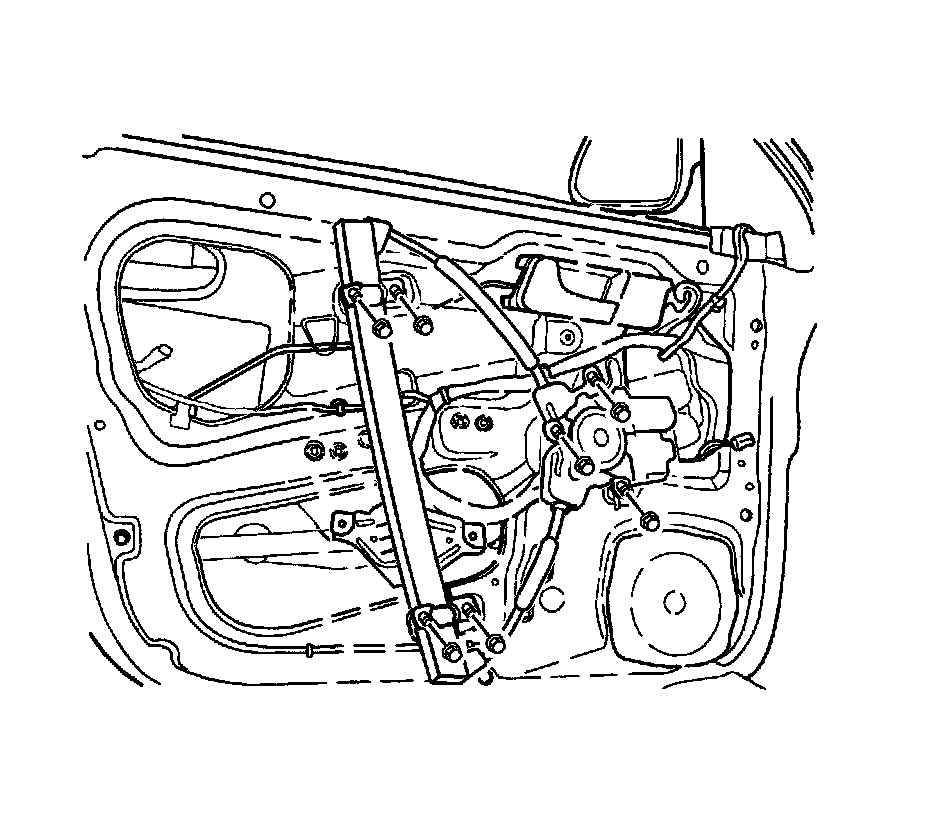

4. Remove the nuts and the window regulator.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the window regulator with the nuts.

Tighten the window regulator nuts to 8 Nm (71 lb in).

2. Connect the electrical connector.
3. Install the door glass. Refer to Window Replacement - Front Door Service and Repair or to Window Replacement - Rear Door Service and Repair.
4. Connect the negative battery cable.
