Camshaft Position Sensor
Camshaft Position Sensor

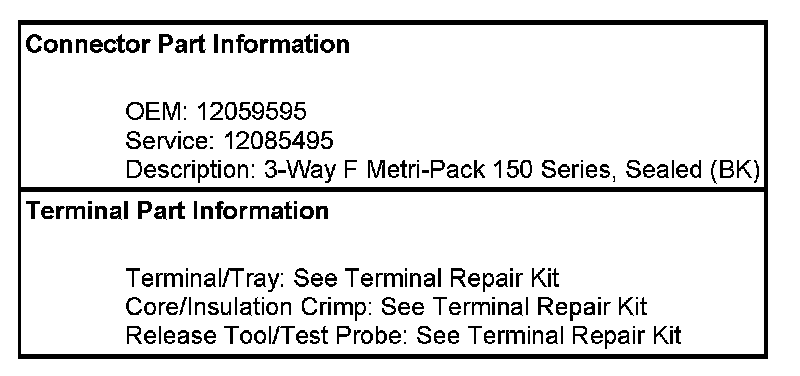

Engine Controls Connector End Views

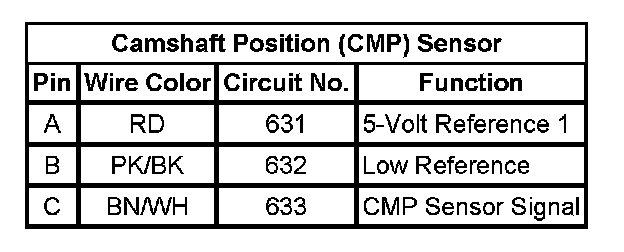

Camshaft Position (CMP) Sensor
