System Diagram

ENGINE CONTROLS SCHEMATICS

DLC, Ground, MIL and Power

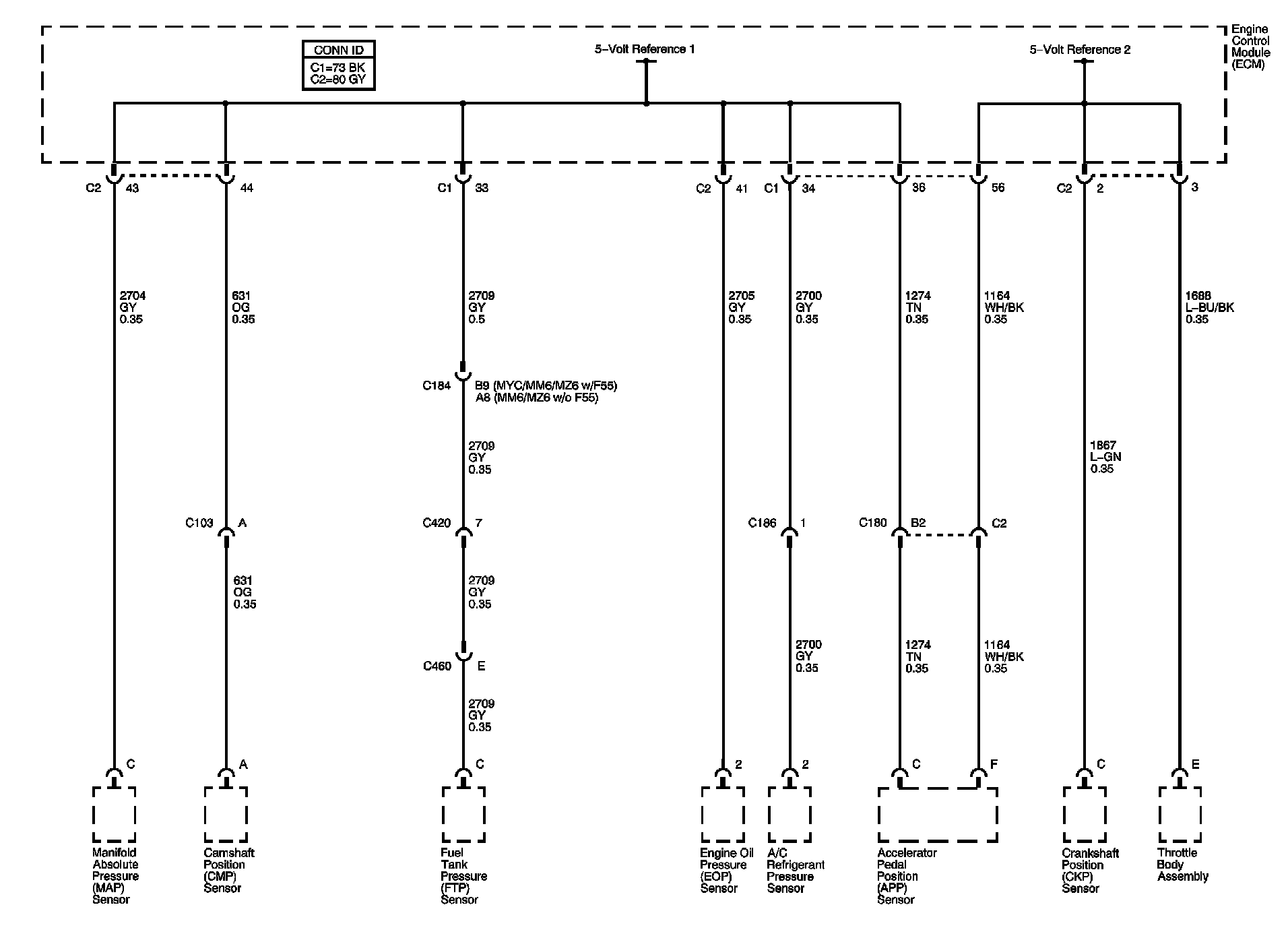

5-Volt Reference Bussing

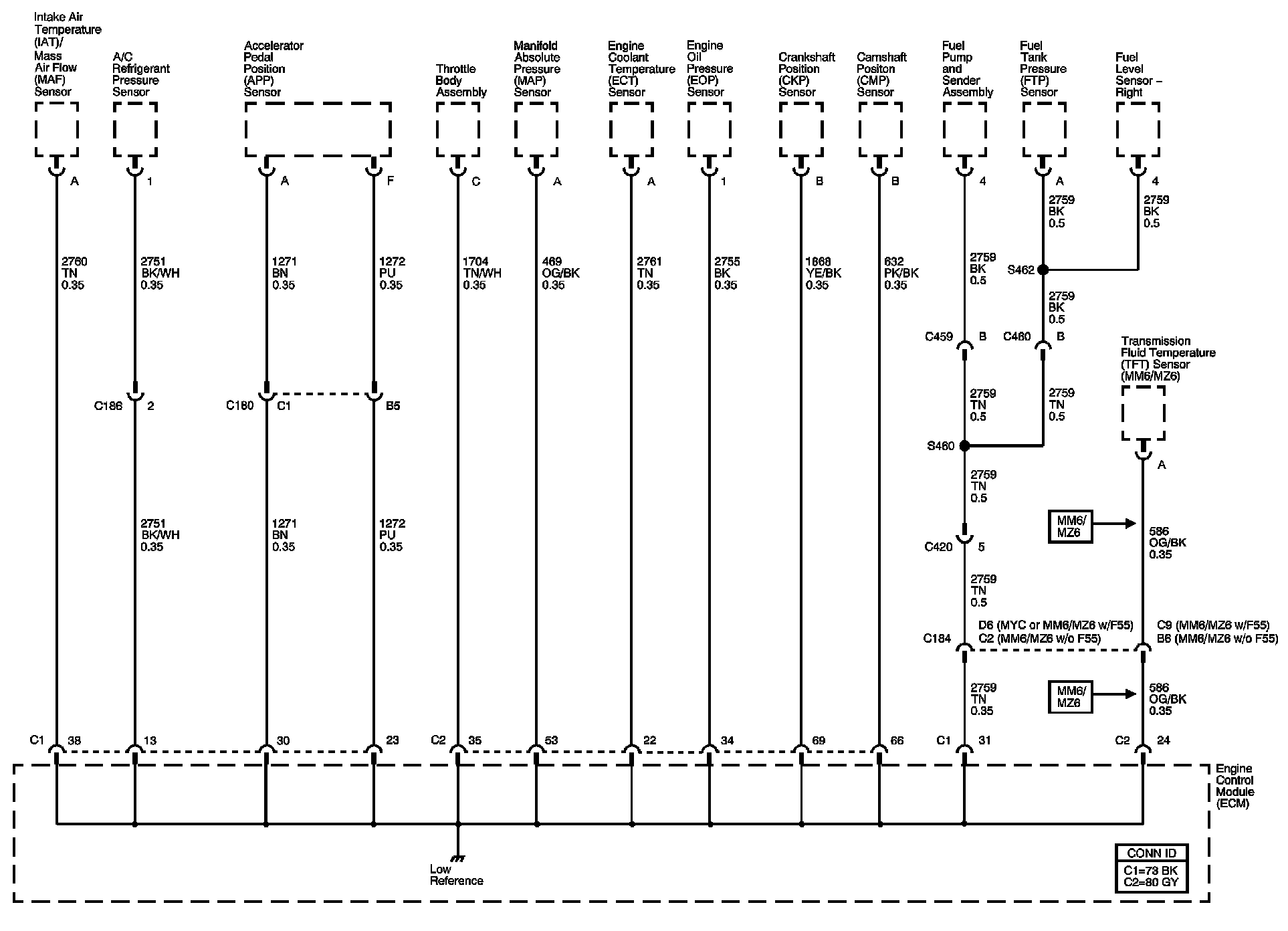

Low Reference Bussing

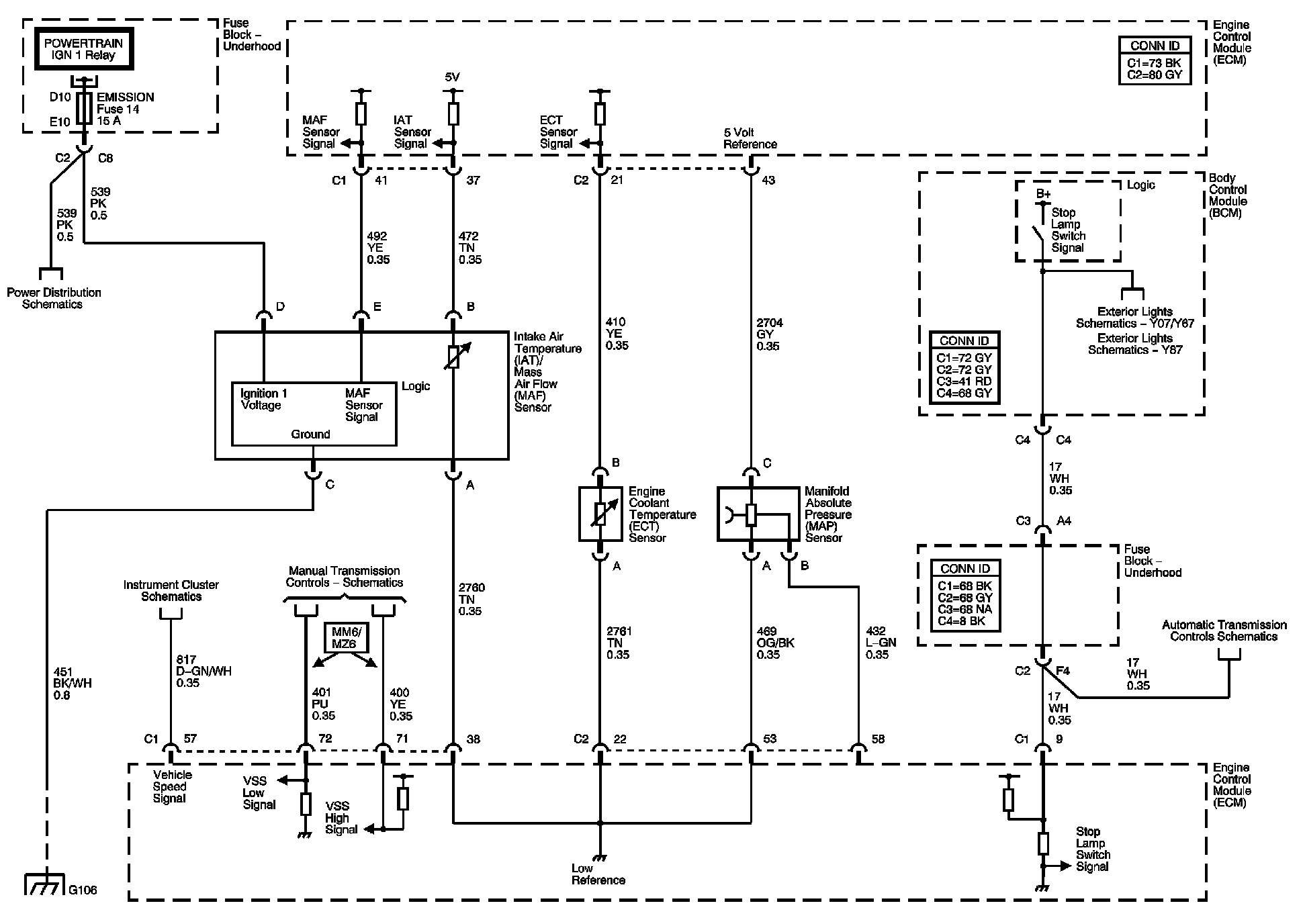

Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel







Engine Data Sensors - Oxygen Sensors







Engine Data Sensors - Electronic Throttle Controls







Ignition Controls System - Bank 1

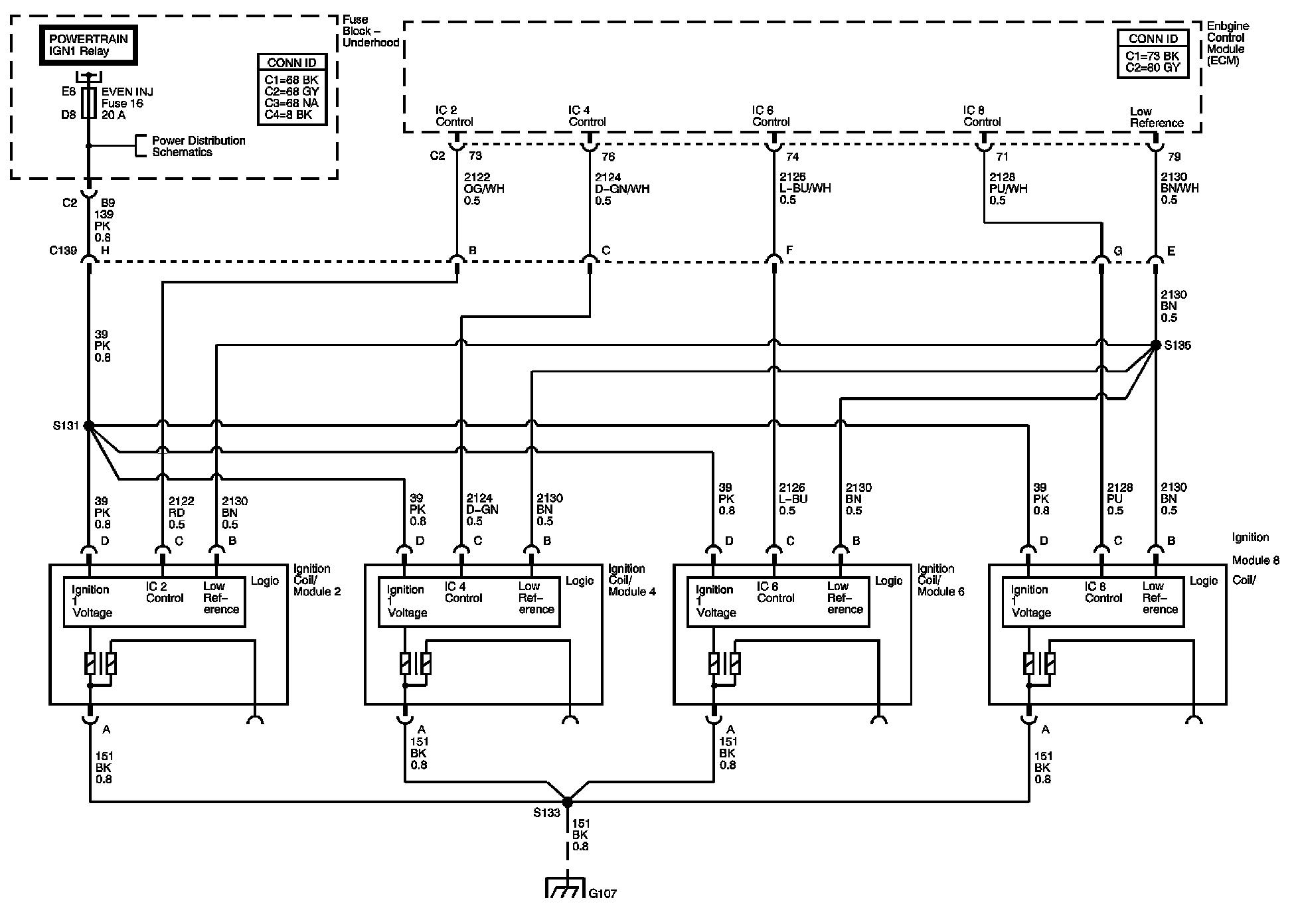

Ignition Controls System - Bank 2







Ignition Controls - Sensors







Fuel Controls - Fuel Pump Controls and Injectors







Fuel Controls - EVAP Controls







Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
