I/P Harness Splice Locations - Rear Body (Convertible and Hardtop/Coupe Harness)

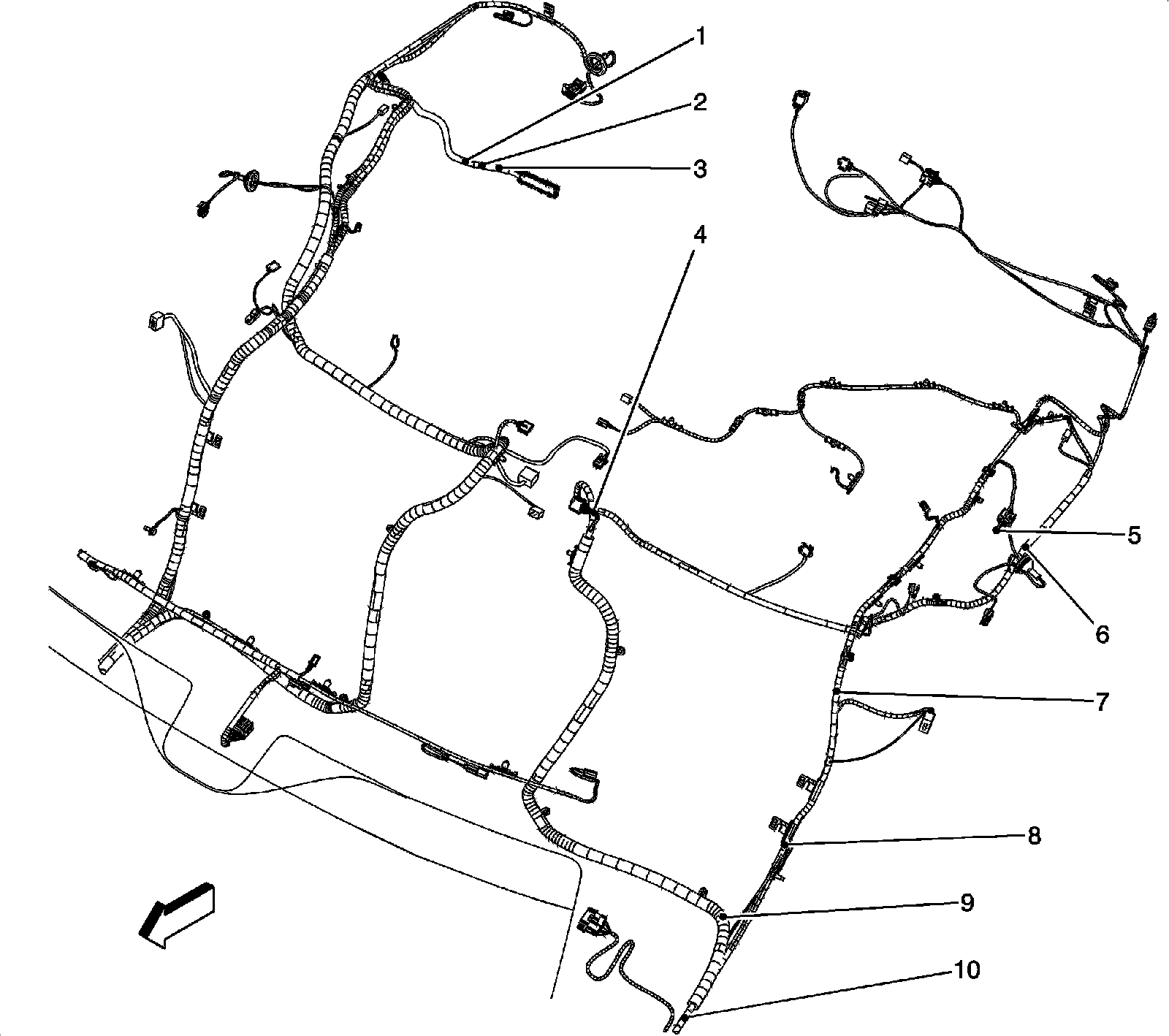

Harness Routing Views

I/P Harness Splice Locations - Rear Body (Convertible and Hardtop/Coupe Harness)




1 - S309 (UE1)
2 - S311 (UE1)
3 - S313 (UE1)
4 - S220 (UZD)
5 - S219 (Y07&UZD)
6 - S355 (CM7)
7 - S301 (Y67)
8 - S303
9 - S301 (Y07)
10 - S422
