Connector Views



Lighting Systems Connector End Views

Park/Turn Signal Lamp - LF (w/o T90)

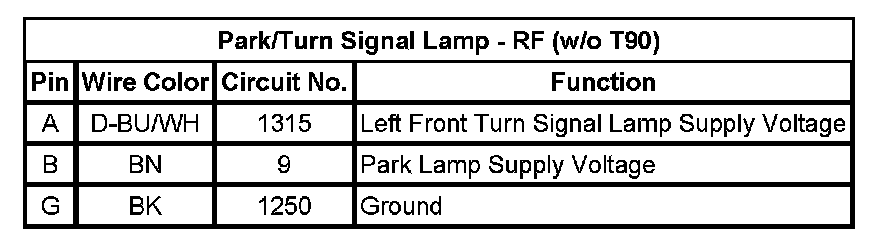

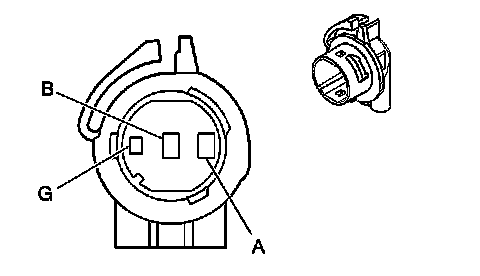

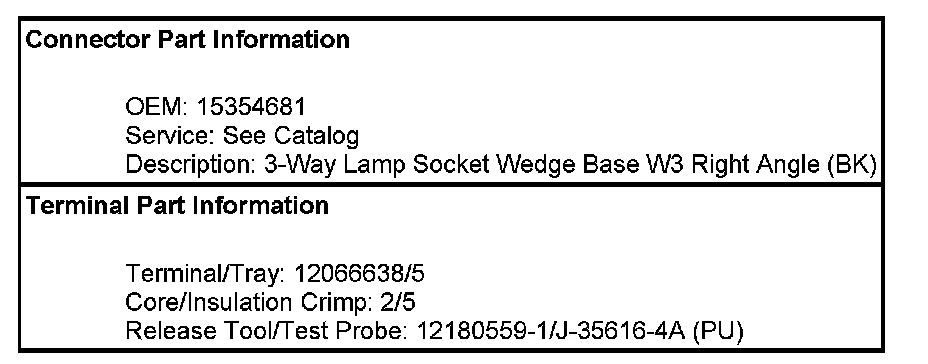

Park/Turn Signal Lamp - RF (w/o T90)
