Starting and Charging: Locations

Engine Electrical Component Views

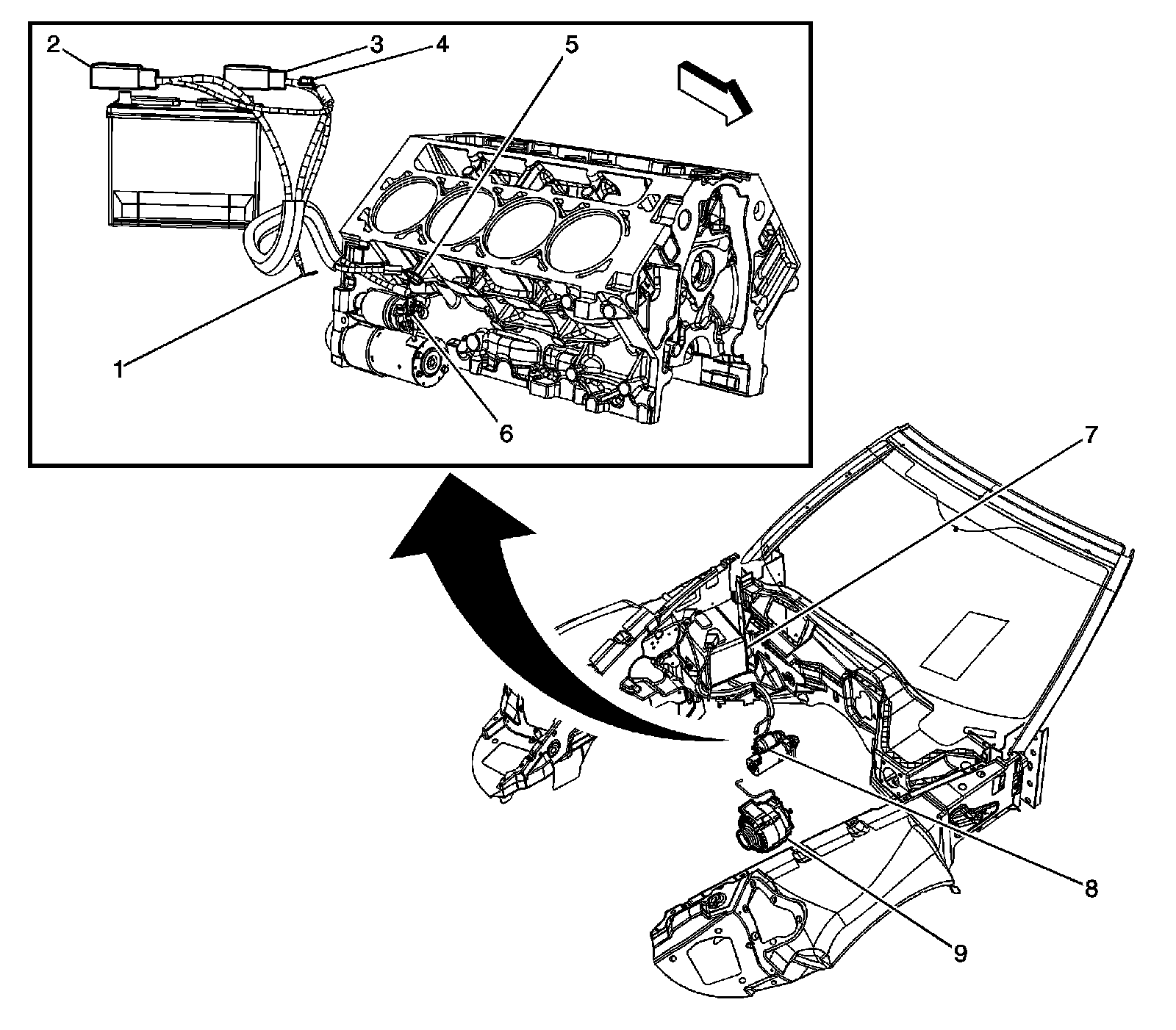

Engine Electrical Components




1 - G104
2 - Battery Positive Cable
3 - Battery Negative Cable
4 - Positive Stud (Fuse Block-Underhood)
5 - G106
6 - Starter Solenoid
7 - Battery
8 - Starter Solenoid
9 - Generator

Lower Left Side of I/P




1 - Brake Pedal Position Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Clutch Start Switch (MM6/MZ6)
4 - Clutch Pedal Position (CPP) Switch (MM6/MZ6)
