Heating and Air Conditioning: Locations

HVAC Component Views

LF of the Engine Compartment

LF of the Engine Compartment:

1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Brake Booster Vacuum Sensor (LS4)
3 - Windshield Wiper Motor
4 - Electronic Brake Control Module (EBCM)
5 - A/C Refrigerant Pressure Sensor
6 - Transmission Control Module (TCM)
7 - Engine Control Module (ECM)
8 - G101
9 - Inflatable Restraint Front End Sensor - Left

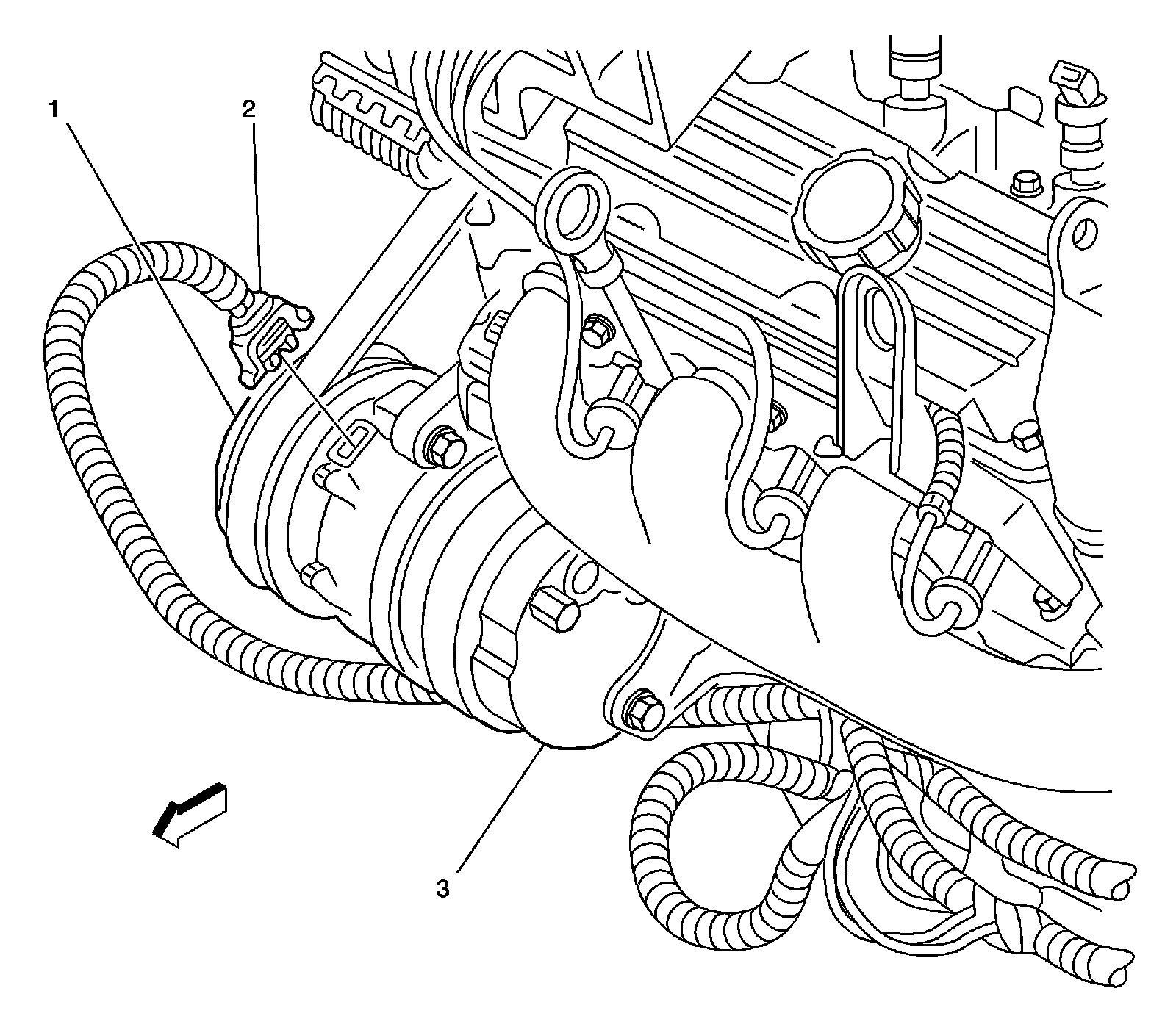

Lower Right Front of Engine




1 - A/C Compressor Clutch
2 - A/C Compressor Clutch Connector
3 - A/C Compressor

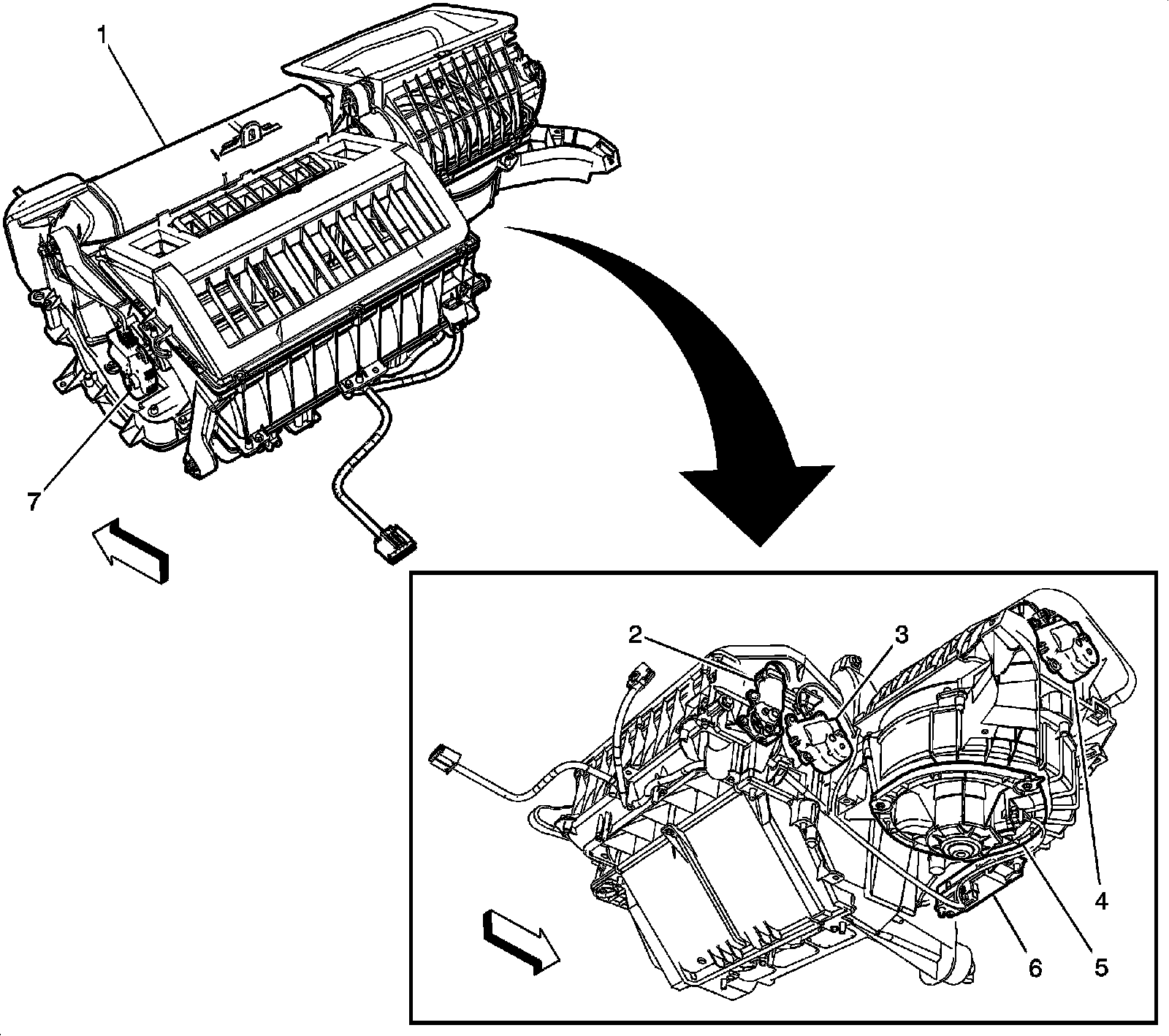

Interior HVAC Components




1 - HVAC Module
2 - Mode Actuator
3 - Air Temperature Actuator (C67), Air Temperature Actuator - Right (CJ3)
4 - Recirculation Actuator
5 - Blower Motor
6 - Blower Motor Control Processor
7 - Air Temperature Actuator - Left (CJ3)

I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Driver Information Center (DIC) Switch
5 - Ambient Light Sensor
6 - Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
7 - Radio
8 - Inflatable Restraint I/P Module
9 - I/P Trim Panel
10 - Heated Seat Switch - Passenger (KA1)
11 - HVAC Control Module
12 - Heated Seat Switch - Driver (KA1)
13 - Turn Signal/Multifunction Switch
