Starting and Charging: Locations

Engine Electrical Component Views

Lower Front of the Engine (LZE, LZ4, LZ9)




1 - Exhaust Manifold
2 - Starter
3 - Cable Pro Fuse (6J1)
4 - A/C Compressor Clutch

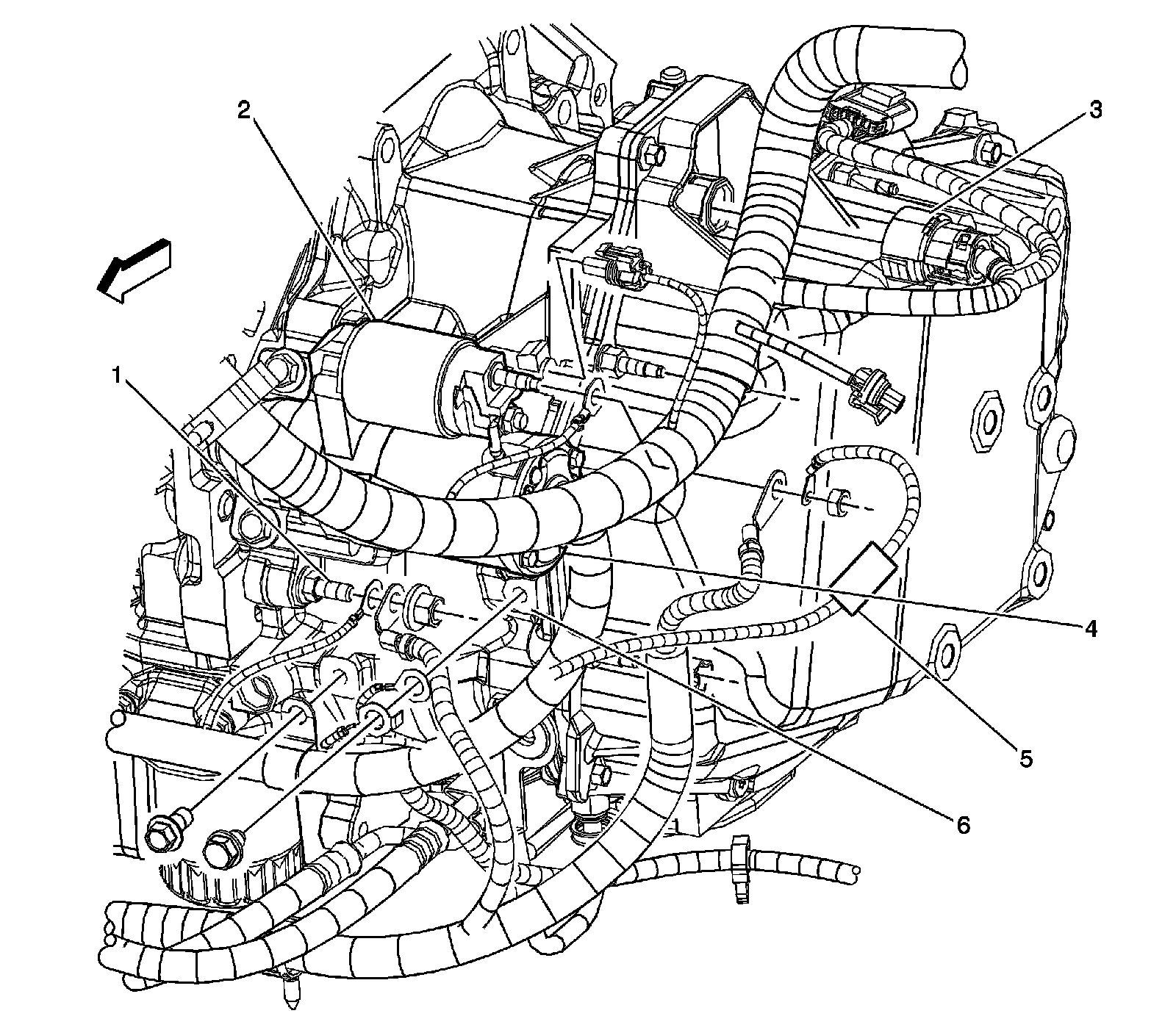

Front of the Engine (LS4)




1 - G111
2 - Starter Solenoid
3 - C100
4 - Starter
5 - Cable Pro fuse
6 - G113

RF of the Engine Compartment




1 - Fuse Block - Underhood
2 - Generator
3 - Brake Fluid Level Switch
4 - Battery
5 - Inflatable Restraint Front End Sensor - Right
6 - G100
7 - Horn Assembly
8 - Windshield Washer Fluid Container
9 - Windshield Washer Fluid Level Switch
10 - Windshield Washer Fluid Pump
11 - Battery Current Sensor
12 - G102

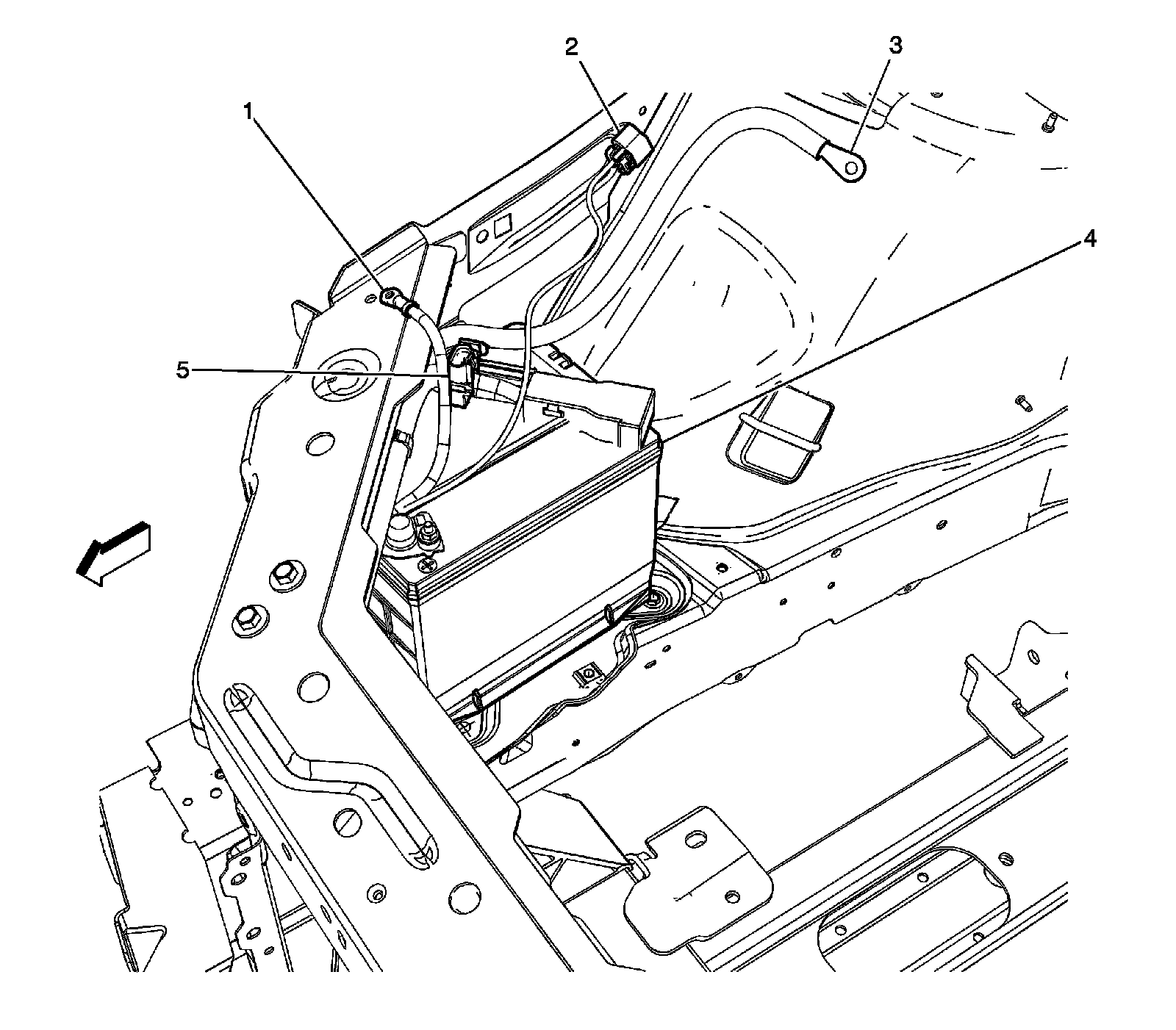

Battery Attachments (LZE, LZ4, LZ9)




1 - G102
2 - C105
3 - Fuse Block - Underhood Positive Battery Cable Terminal
4 - Battery
5 - Battery Current Sensor

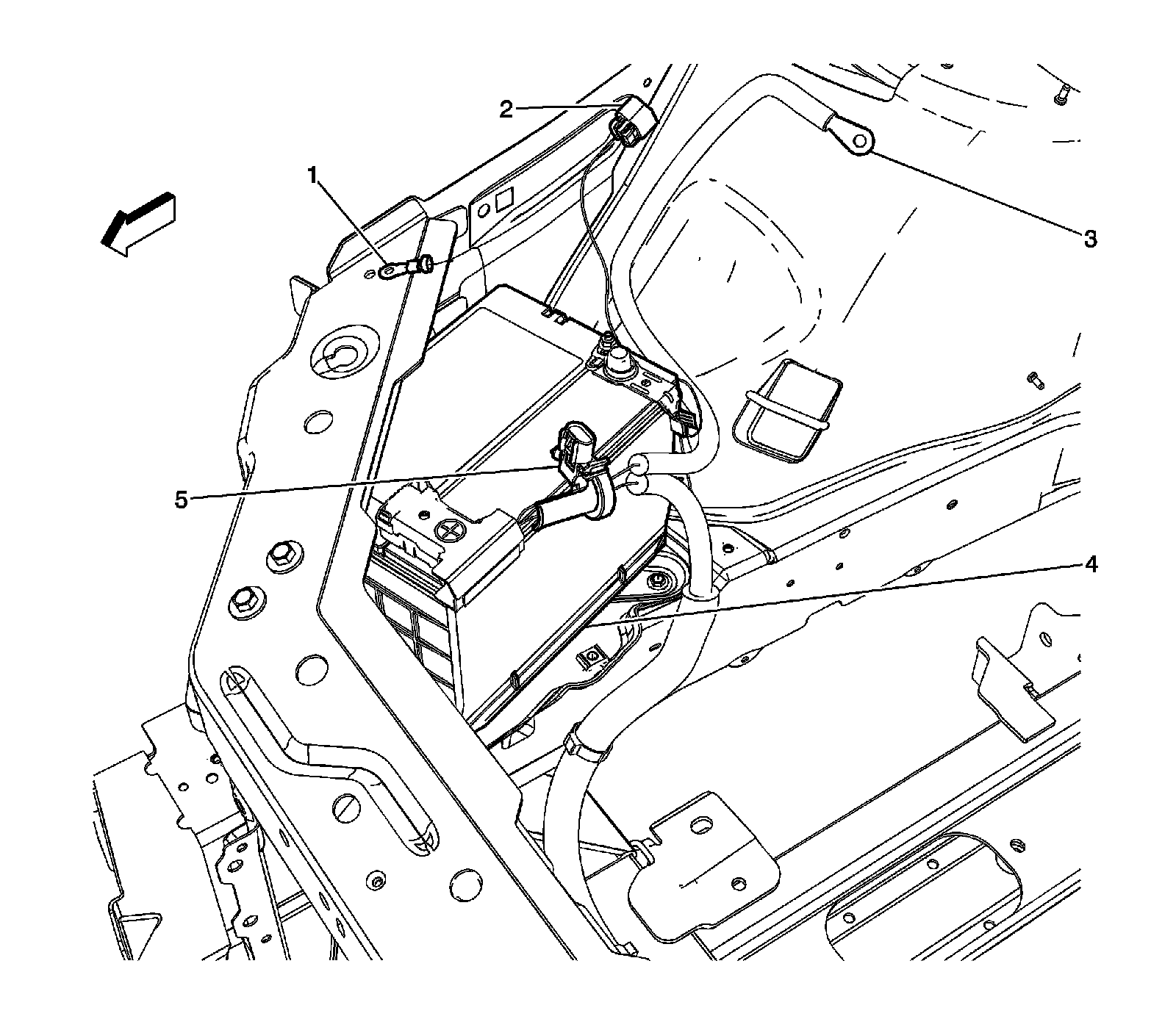

Battery Attachments (LS4)




1 - G102
2 - C105
3 - Fuse Block - Underhood Positive Battery Cable Terminal
4 - Battery
5 - Battery Current Sensor
